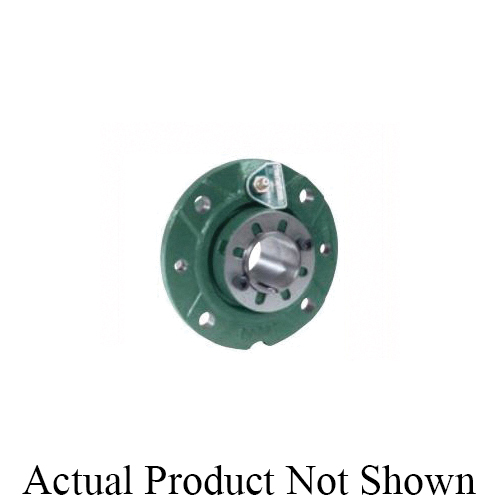

F4R-IP-215RE Dodge® 069649 215 Series Expansion Imperial Flange Mount Roller Bearing Unit, 2-15/16 in Dia Bore, 5.56 in L Bolt Center-to-Center, 7.88 in Dia Bolt Circle, Four-Bolt Base Flange Mount, 9-1/4 in OAL/Dia
Dodge® imperial spherical roller bearings are the only high-capacity double-row spherical roller bearings with an effective easy-on, easy-off adapter mounting and removal system. Not only does this patented system provide a concentric grip for superior holding on the shaft, but it reduces the fretting corrosion caused by traditional setscrews and vibration.
-
BrandDodge®
-
UPC782475309245
-
Manufacturer Part Number069649
-
CountryUSA
-
Load Capacity41500 lb Dynamic/53000 lb Static
-
Locking DeviceAdapter Mounted
-
Temperature Rating-100 to 200 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed2250 rpm
-
TypeExpansion Imperial
-
Seal MaterialRubber
-
Series215
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.56 in
-
Bolt Circle Diameter7.88 in
-
Bore Diameter2-15/16 in
-
Overall Depth3.81 in
-
Overall Length/Diameter9-1/4 in
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
- Seal/land maintains full seal contact when misaligned
- Corrosion resistant flinger blocks contaminants
- Steel cage with guide rings offers precision roller guidance
- Patented triple lip nitrile seal resists heat and chemical breakdown
-
Alternative Part NumberF4R-IP-215RE
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
