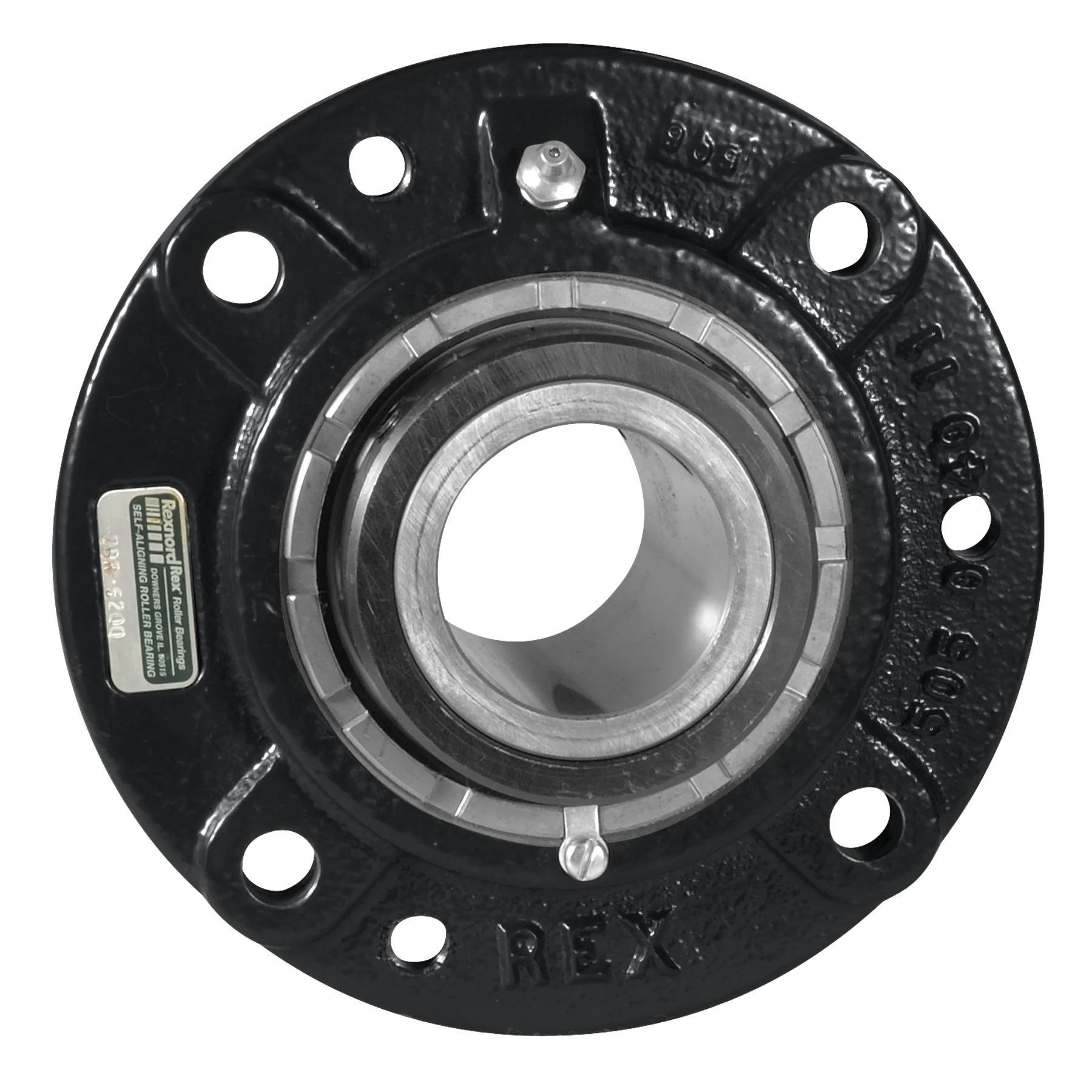

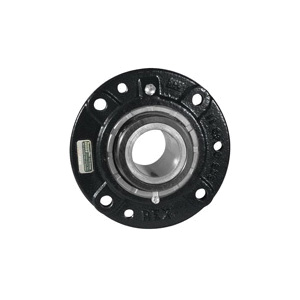

Rexnord® 10417507 5000 Fixed Heavy Duty Flanged Cartridge Block Spherical Roller Bearing, 2-15/16 in Dia Bore, 5-19/64 in L Bolt Center-to-Center, 3-3/4 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 8-3/4 in OAL/Dia
Rex® 10417507 5000 Fixed Heavy Duty Flanged Cartridge Block Spherical Roller Bearing, 2-15/16 in Dia Bore, 5-19/64 in L Bolt Center-to-Center, 3-3/4 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 8-3/4 in OAL/Dia
-
BrandRexnord®
-
UPC698210544966
-
Manufacturer Part Number10417507
-
CountryUSA|Canada
-
Load Capacity57750 lb Dynamic/71500 lb Static
-
Locking DeviceDouble Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Round
-
Maximum Speed2800 rpm
-
TypeFixed Heavy Duty
-
Seal MaterialMetal
-
Series5000
-
Bolt Center-to-Center Length5-19/64 in
-
Bolt Circle Diameter3-3/4 in
-
Bore Diameter2-15/16 in
-
Overall Depth4-7/8 in
-
Overall Length/Diameter8-3/4 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Increased shaft holding power and stability
- Type Z clearance seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
-
Alternative Part NumberZBR5215
-
UNSPSC31171535
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
