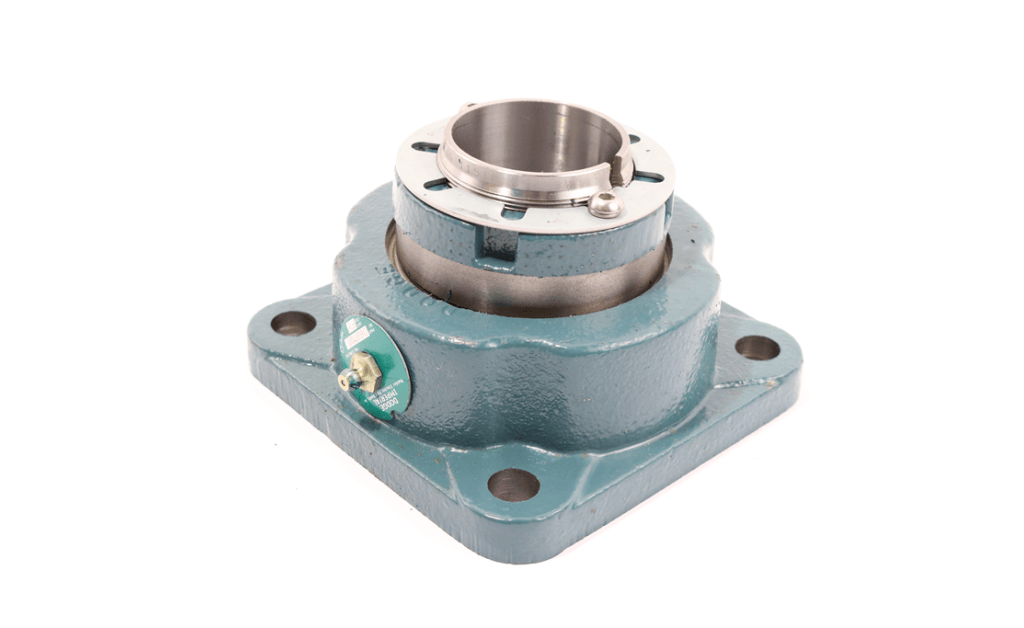

F4R-IP-115R Dodge® 069602 115 Imperial Flange Mount Roller Bearing Unit, 1-15/16 in Dia Bore, 4.06 in L Bolt Center-to-Center, 5-3/4 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 6.69 in OAL/Dia
F4R-IP-115R Dodge® 069602 115 Imperial Flange Mount Roller Bearing Unit, 1-15/16 in Dia Bore, 4.06 in L Bolt Center-to-Center, 5-3/4 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 6.69 in OAL/Dia
-
BrandDodge®
-
UPC782475309009
-
Manufacturer Part Number069602
-
CountryUSA
-
Load Capacity22000 lb Dynamic/24000 lb Static
-
Locking DeviceAdapter Mounted
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed3520 rpm
-
TypeImperial
-
Series115
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length4.06 in
-
Bolt Circle Diameter5-3/4 in
-
Bore Diameter1-15/16 in
-
Overall Depth2.86 in
-
Overall Length/Diameter6.69 in
- Steel cage with guide rings offers precision roller guidance
- Corrosion resistant flinger blocks contaminants
- Seal/land maintains full seal contact when misaligned
- Steel cage provide high temperature and high speed capabilities
- Patented triple-lip nitrile seal resists heat and chemical breakdown
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100941469 |
| Motion Industries | 02317063 |
-
Alternative Part NumberF4R-IP-115R
-
UNSPSC31171501
-
Instruction/Installation Manual
-
Specification Sheet
