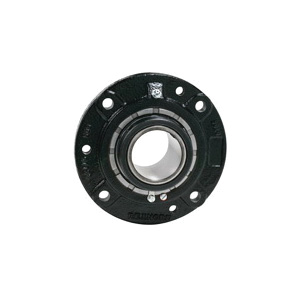

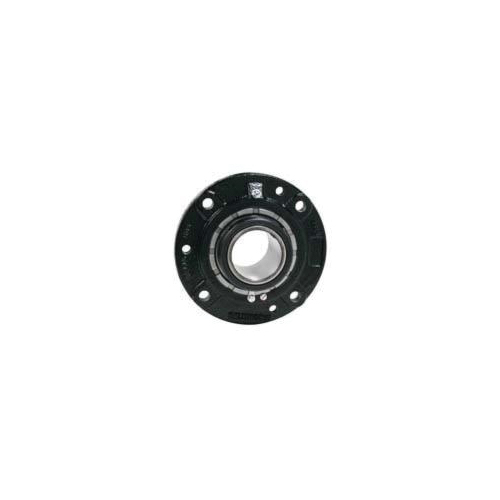

Link-Belt® 10407609 B22400 Fixed Flanged Cartridge Block Spherical Roller Bearing, 3 in Dia Bore, 5-19/64 in L Bolt Center-to-Center, 7-1/2 in Dia Bolt Circle, 4-Bolt/Piloted Round Flange Mount, 8-3/4 in OAL/Dia
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
-
BrandLink-Belt®
-
UPC662327027698
-
Manufacturer Part Number10407609
-
CountryUSA|Canada
-
Load Capacity51100 lb Dynamic/71500 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating-40 to 400 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt/Piloted Round
-
Maximum Speed1950 rpm
-
TypeFixed
-
SeriesB22400
-
Bolt Center-to-Center Length5-19/64 in
-
Bolt Circle Diameter7-1/2 in
-
Bore Diameter3 in
-
Overall Depth4 in
-
Overall Length/Diameter8-3/4 in
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Self aligning type E interchange
- Cast iron housing
- Factory set clearance and lubrication
- Extended inner ring, separable outer rings
- Type H floating labyrinth clearance seals have multiple self-centering rings held securely in a steel carrier
-
Alternative Part NumberFCB22448H
-
UNSPSC31171535
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
