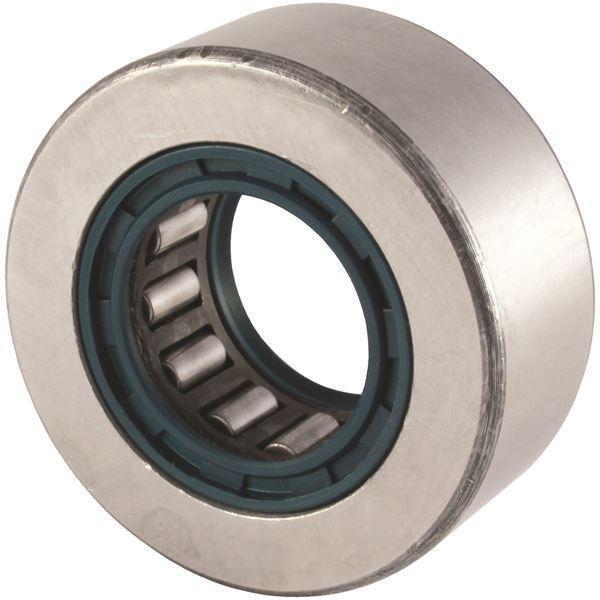

RBC Bearings YOKE CAM FOLLOWER BEARINGS RBC SRF-45-SS
Caged roller followers provide large internal grease storage capacity for applications where relubrication is infrequent. Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds. Caged roller followers are avail able with and with out seals. The unsealed design provides the additional advantages of very low friction to prevent skidding in lightly loaded applications and provides for flow-through lubrication. Caged roller followers normally mount directly on a hardened and ground pin. RBC® offers a line of Precision Ground Inner Rings to simplify application of caged roller followers.
-
BrandRBC®
-
UPC637400006839
-
Manufacturer Part NumberSRF 45 SS
-
CountryUSA
-
Load Capacity8400 lb
-
Temperature Rating0 to 250 deg F
-
FinishUncoated
-
Maximum Speed3100 rpm
-
Closure TypeDouble Seal
-
TypeCaged
-
Roller Diameter1-1/4 in
-
Roller MaterialChrome Steel
-
Roller Width0.995 in
-
SeriesSRF
-
Bore Diameter1-1/4 in
-
Overall Width0.995 in
- Designed with large internal grease storage capacity for applications where relubrication is infrequent
- Cage guided rollers and a very heavy outer ring cross section permit operation at high loads and high speeds
- Double sealed to keep grease in and contaminants out
- 4900 lb dynamic/8400 lb static
- Flat outside ring
- Without stud
- Dynamic Load Bearing is 4900 lb
- Enclosure Type Double Seal
- Outer Diameter is 2-1/4 in
- Product Weight is 0.676 lbs
- Style Caged
-
UNSPSC31171530
-
Package Description1/PK
-
Standards/ApprovalsANSI/ABMA Standard 30|ASPR|CAS|DFAR|FAR Standards
-
Warranty90 Days
-
