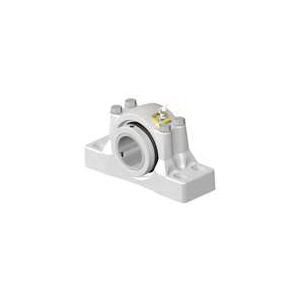

Sealmaster 2-1/2"-ID 4-BOLT TRB PILLOW BLOCKS SEA RPB-208-C-4-CR
Sealmaster® RPB-CR self-aligning high capacity tapered roller bearings include a fluoropolymer-coated housing and locking collars. They also include stainless steel grease fittings and single lip contact seal. For corrosion resistant applications, they also include GoldPlex® FG (USDA H1) food grade grease. The fluoropolymer coating is resistant to most chemicals and hydrocarbon solvents. These bearings are used in applications where they may be subjected to moisture and corrosive and abrasive environments. Depending on your preference, these bearings are available in two or four bolt pillow blocks and four bolt flanges.
-
BrandSealmaster®
-
UPC662461298152
-
Manufacturer Part Number556644
-
CountryUSA
-
Load Capacity9030 lb Dynamic
-
Locking DeviceDouble Set Screw
-
Temperature Rating250 deg F
-
FinishFluoropolymer Coated
-
MaterialCast Iron
-
Maximum Speed2000 rpm
-
TypeStandard-Duty
-
Mounting TypeFour-Bolt Base
-
Seal TypeContact
-
SeriesRPB-CR
-
Base Width3-1/2 in
-
Base to Bore Centerline2-3/4 in
-
Bolt Center-to-Center Length7-3/4 to 8-3/4 in
-
Bore Diameter2-1/2 in
-
Bore TypeRound/Tapered
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height5-5/8 in
-
Overall Length10-3/8 in
-
Overall Width4 in
- Corrosion resistant
- Fluoropolymer coated cast iron split housings
- Replaceable cartridge insert
- Positive lubrication system
- Collar mount system
- Specialized food grade lubrication
- Without Seal Flinger
-
Alternative Part NumberRPB 208-C4 CR
-
UNSPSC31171511
-
Standards/ApprovalsABMA Certified
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
