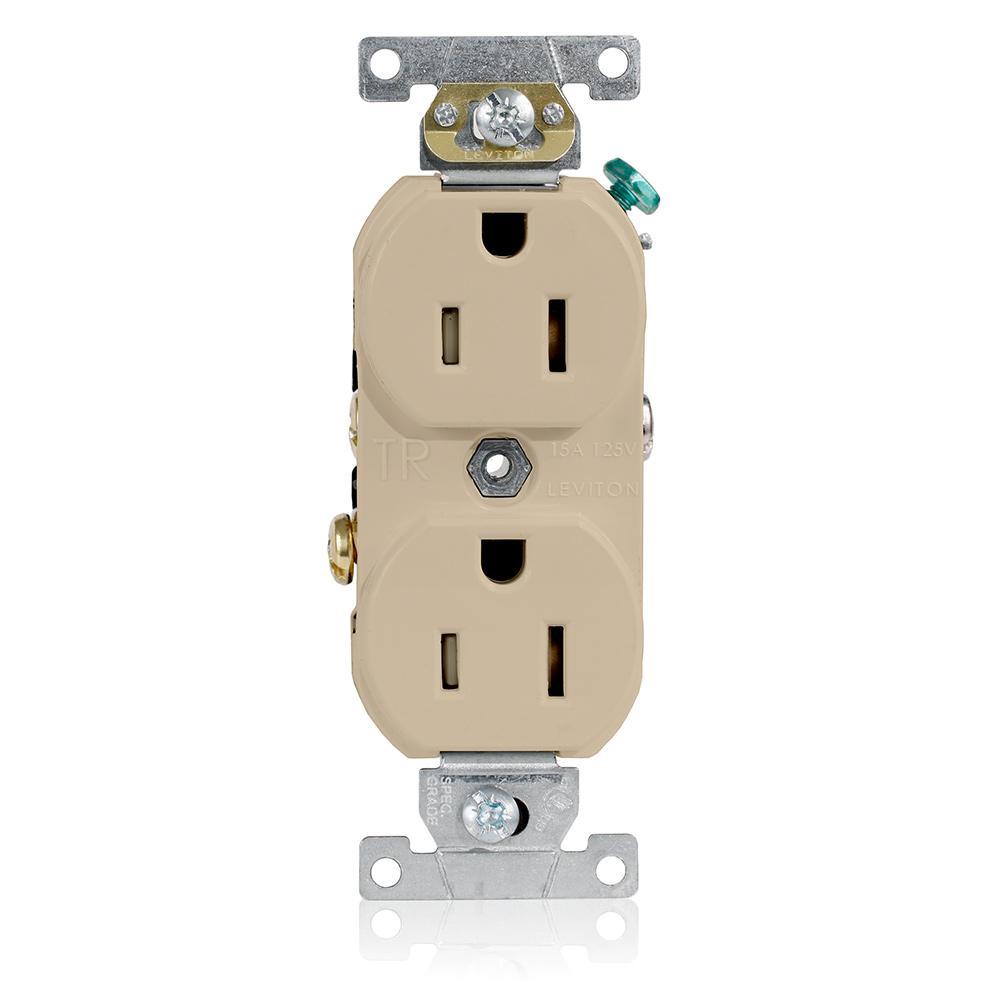

Leviton® TBR15-I 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Ivory
Plug into safety with Leviton® line of tamper resistant receptacles. As a long time manufacturer of tamper resistant devices, we are pleased to be at the forefront of this safety measure with an expanded product line that encompasses a wide range of TR devices in residential, commercial, industrial and hospital grades.
-
BrandLeviton®
-
UPC078477391969
-
Manufacturer Part NumberTBR15-I
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorIvory
-
Type1-Phase Duplex Tamper Resistant
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
- 2000 VAC minimum dielectric strength
- Brass 0.031 THK line contacts
- Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping ensure hairpins, keys
- TR symbol on residential receptacles assures they meet the 2008 NEC requirement
- Ultrasonic welding, heavy duty construction offers long, trouble free service life
- Tamper resistant
- Narrow body
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25JV25 |
-
Alternative Part Number9869894
-
UNSPSC39121406
-
IDEA Index ID9869894
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-2/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years
-
Specification Sheet
-
Owners/User Manual
-
Owners/User Manual
