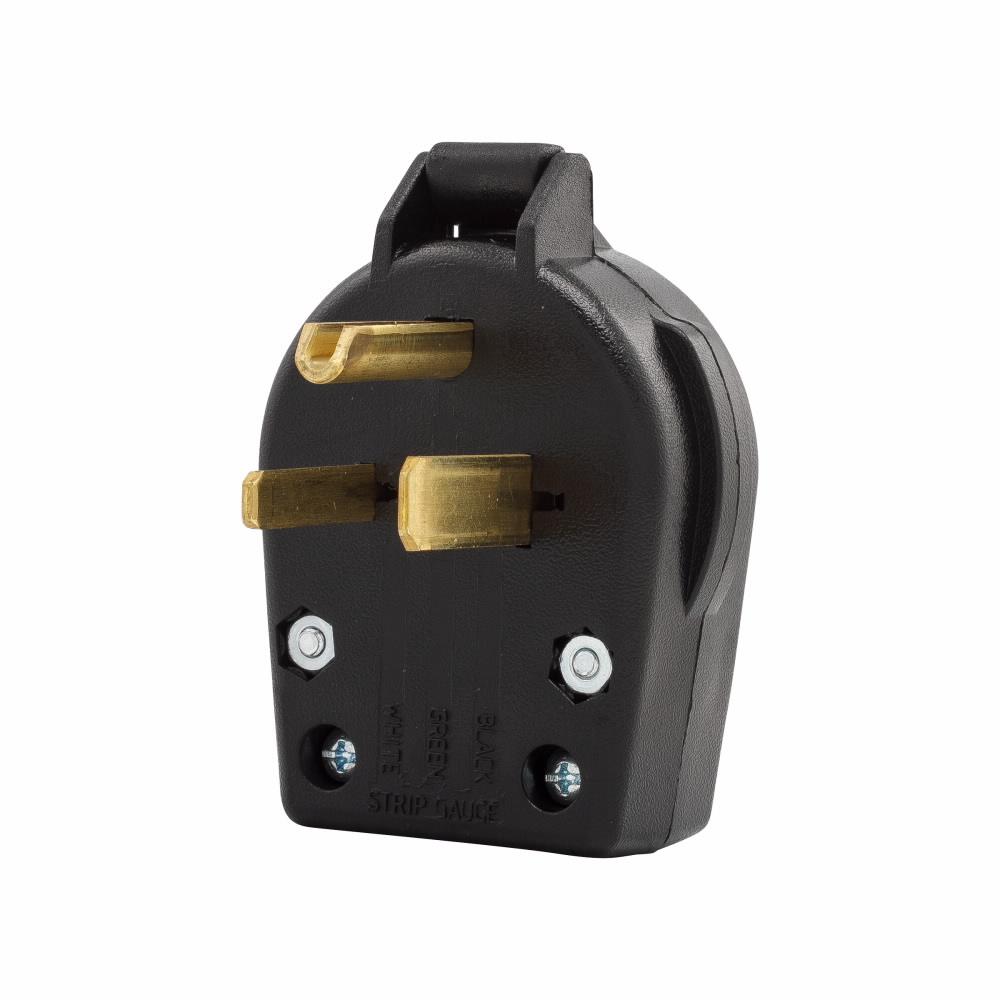

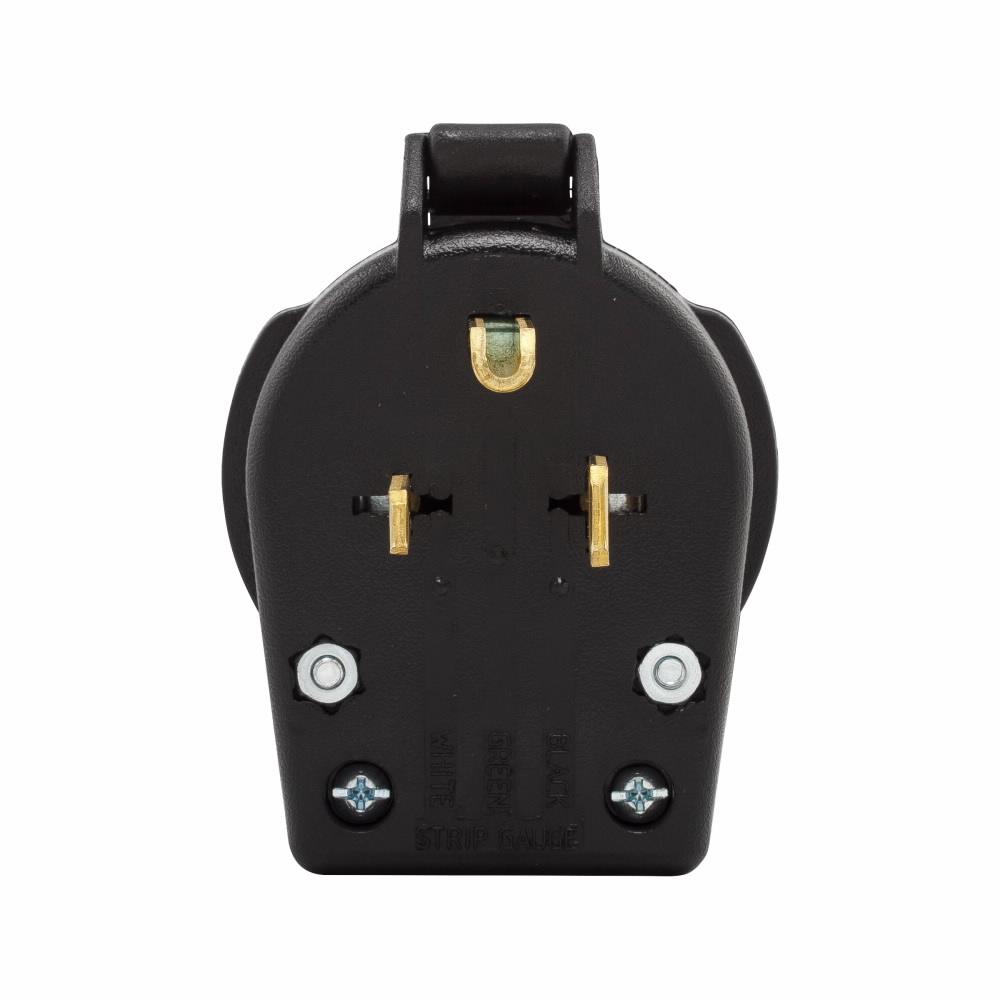

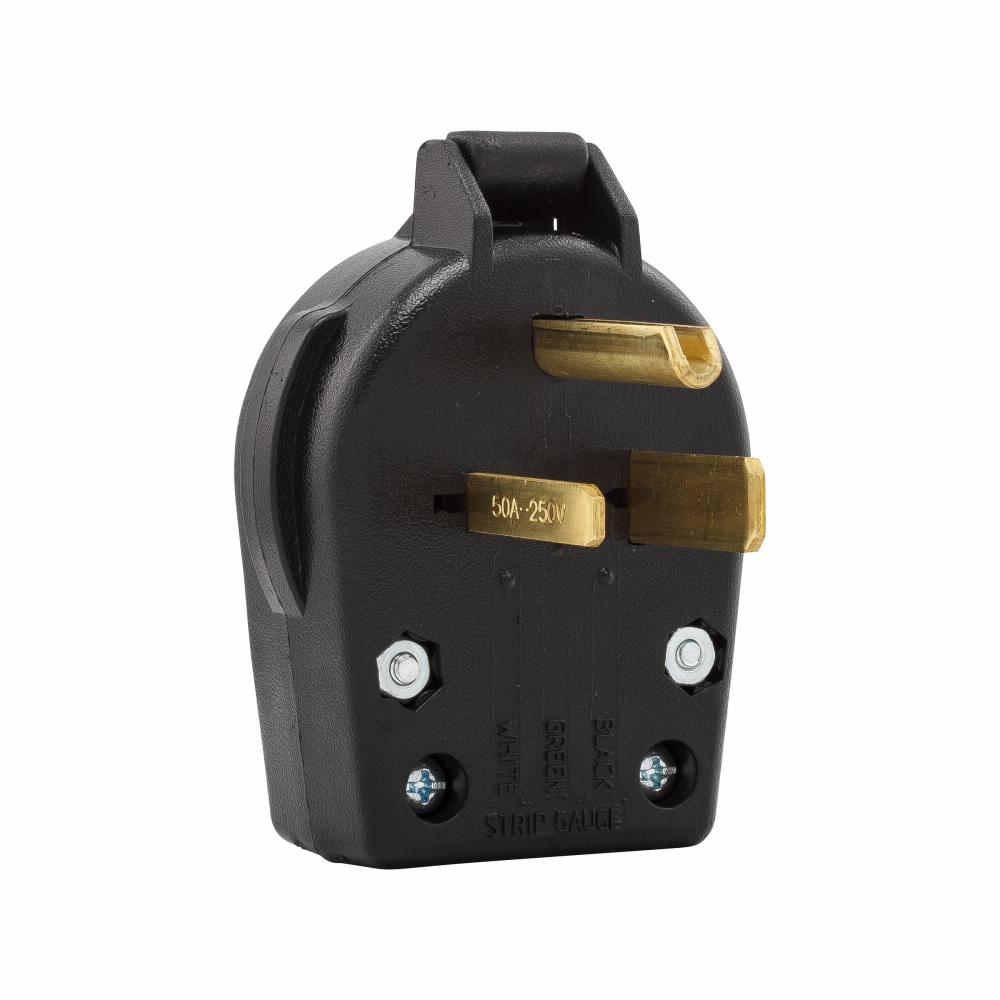

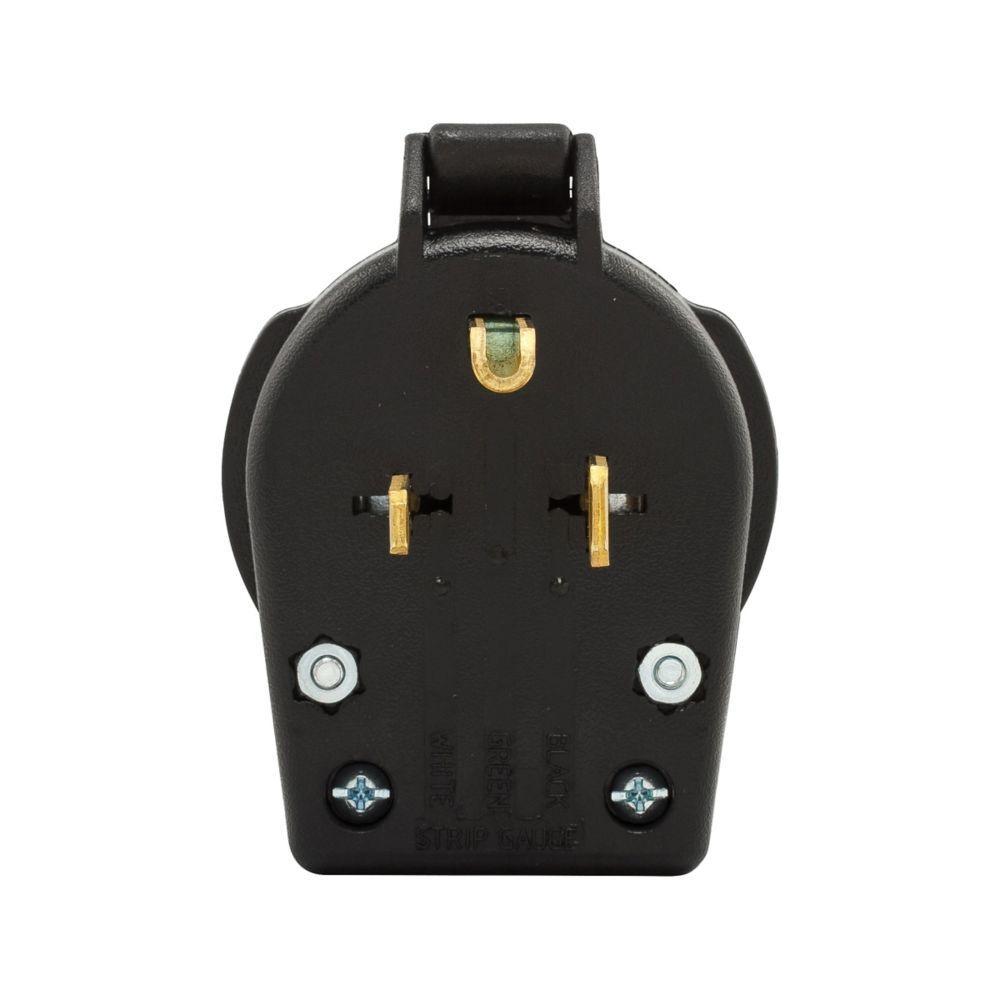

EATON Arrow Hart™ Eaton Wiring Devices S42-SP Angled Universal Straight Blade Plug, 250 V AC, 30/50 A, 2 Poles, 3 Wires, Black
Heavy duty design and construction make Eaton's Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
-
BrandEATON
-
UPC032664517846
-
Manufacturer Part NumberS42-SP
-
CountryUSA
-
Temperature Rating-20 to 75 deg C
-
MaterialThermoplastic
-
ColorBlack
-
TypeAngled Universal
-
GradeCommercial/Heavy Duty
-
NEMA RatingNEMA 6-30P/6-50P
-
Voltage Rating250 V AC
-
Cord Diameter1.1 in
-
Amperage Rating30/50 A
-
Number of Poles2
-
Dimensions3.37 in H x 2.87 in W
-
Number of Wires3
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 10 to 6 AWG wire
- Abuse-resistant thermoplastic construction
-
Alternative Part Number9593430
-
UNSPSC39121402
-
IDEA Index ID9593430
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Specification Sheet
-
Owners/User Manual
