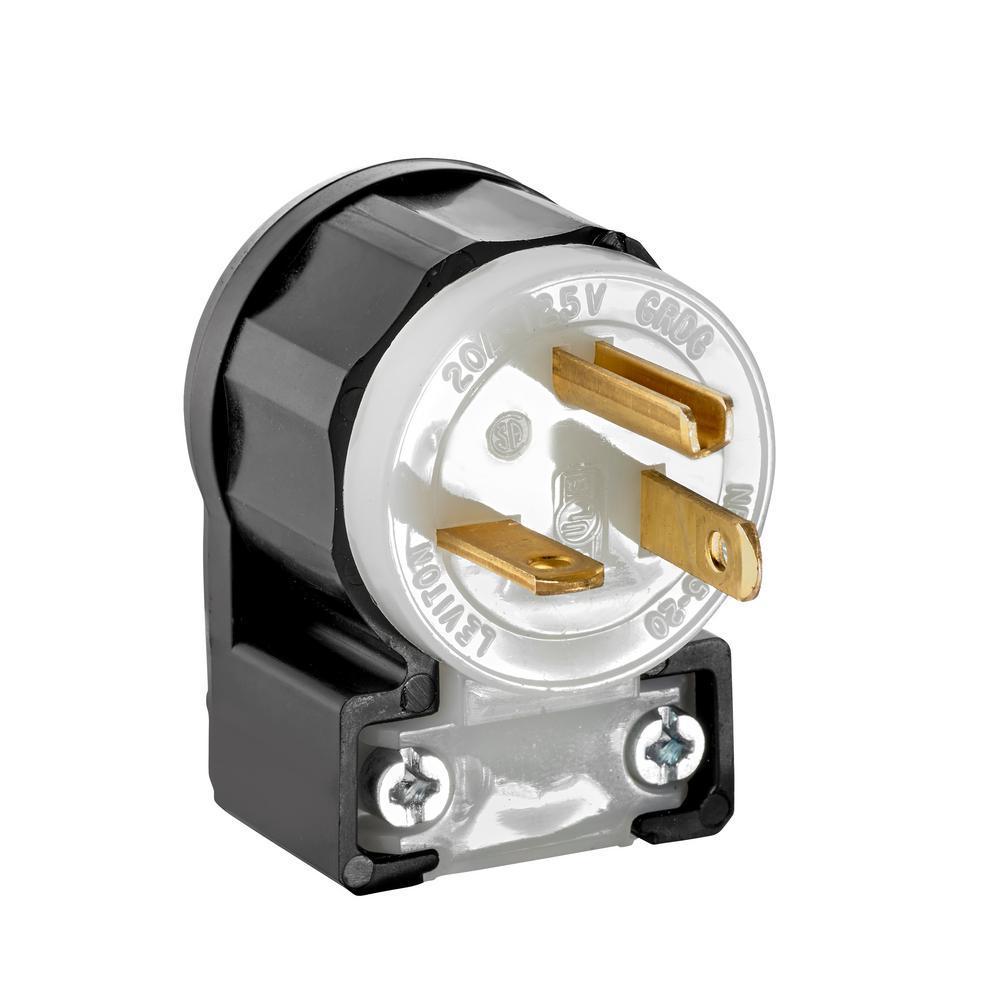

LEVITON ANGLE ELECTRIC PLUGS LEV 5366-CA
Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, youll be sure to find the right device for your needs.
-
BrandLeviton®
-
UPC078477795934
-
Manufacturer Part Number5366-CA
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
MaterialNylon
-
ColorBlack/White
-
TypeAngled Cable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 5-20P
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions29 in H x 1.53 in W x 1.3 in D
-
Number of Wires3
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- 18 to 10 AWG terminal accommodation
- Super tough nylon body
- Captive, color coded brass #8 AWG terminal screws
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25KV20 |
-
Alternative Part Number7326690
-
UNSPSC39121402
-
IDEA Index ID7326690
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
