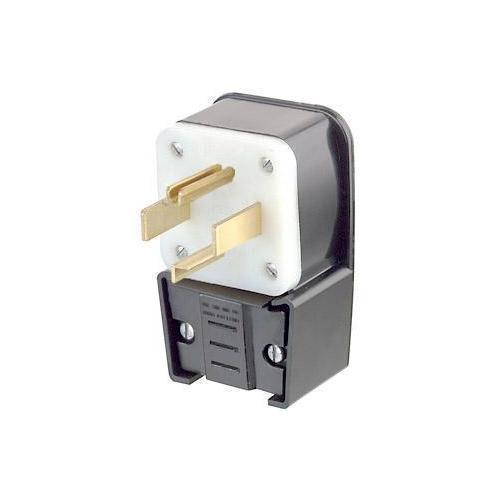

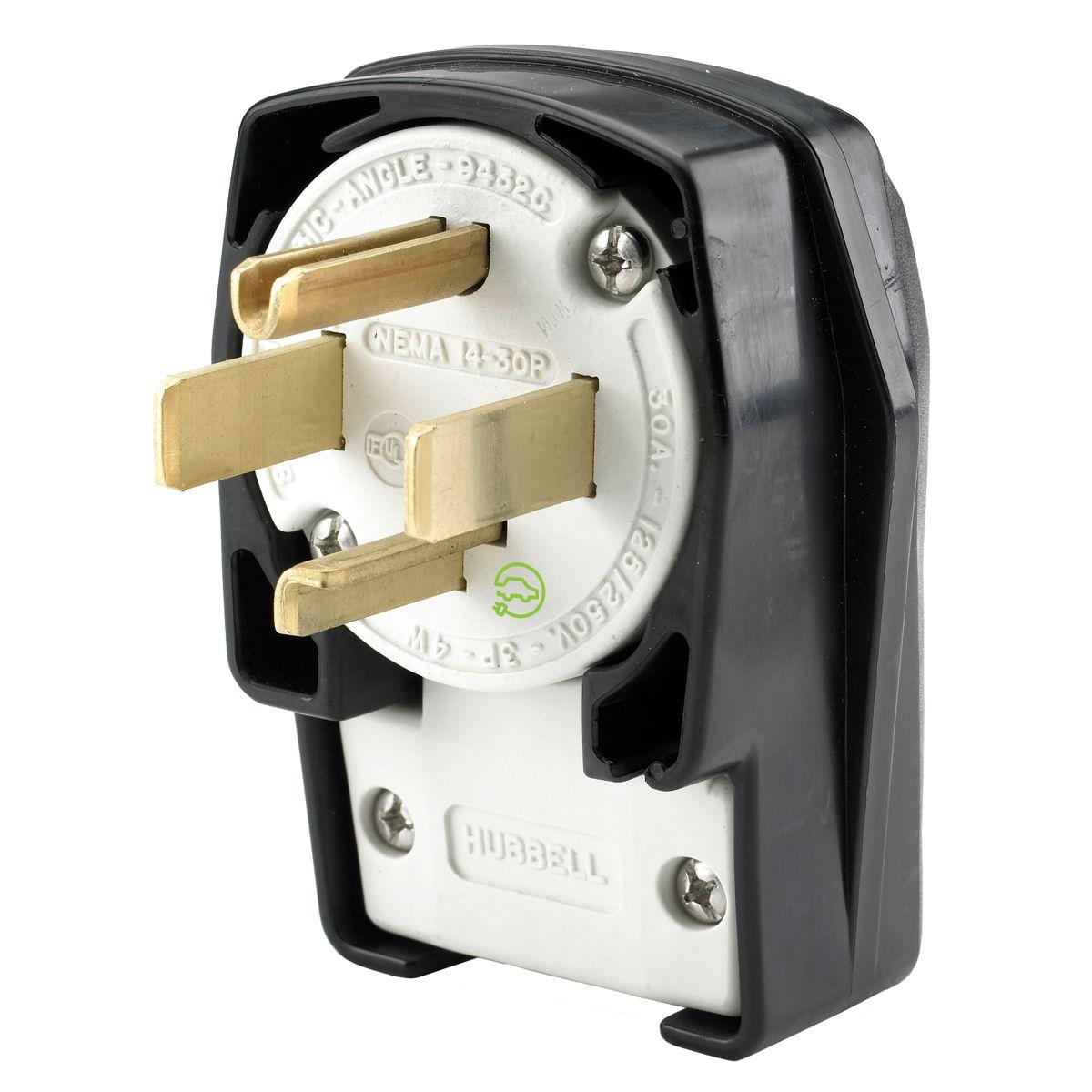

Hubbell Wiring Device-Kellems HBL9432C 1-Phase Angled Grounding Heavy Duty Male Cord Mount Straight Blade Plug, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black
Engineered specifically for EV charging applications, Hubbell's 14-50P straight blade angled plug stands out as a superior and reliable choice, fully compatible with established EV charging standards. This sturdy plug is crafted to offer exceptional durability, safety, and high performance, making it the ideal choice for environments that demand reliability in EV power delivery.
-
BrandHubbell Wiring Device-Kellems
-
UPC783585015446
-
Manufacturer Part NumberHBL9432C
-
CountryUSA|Canada
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack
-
Type1-Phase Angled Grounding Heavy Duty Male Cord Mount
-
GradeCommercial/Industrial
-
NEMA Rating14-30P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.625 to 1.31 in
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions4.5 x 3.38 x 2.37 in
-
Number of Wires4
-
EnclosureIP20
- Material and Construction - Crafted from industrial-grade nylon, this durable plug withstands daily use, ensuring long-lasting, reliable performance essential for EV charging system integrity
- Electrical Rating - Boasting a 50A, 125/250V capacity, this plug is suited for high-powered EV charging stations, ensuring efficient and reliable power delivery
- Safety Compliance - This plug meets strict safety standards with a grounding pin and heavy-duty materials, reducing electrical shock risks and ensuring a secure connection to protect equipment and users
- Ease of Use - Designed with an angled interface and ergonomic handle, this plug allows easy operation and handling in tight spaces, ensuring safe and effortless insertion and removal
- Long-Term Reliability - Investing in Hubbells Straight Blade Male Plug means choosing a product that will not only meet the current demands of EV charging but also continue to deliver performance and safety long into the future
- Long-Term Reliability, Investing in Hubbell's Straight Blade Male Plug means choosing a product that will not only meet the current demands of EV charging but also continue to deliver performance and safety long into the future
- 10 to 4 AWG terminal accommodation
- Super tough nylon body
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5C790 |
-
Alternative Part Number11826517|8945371
-
UNSPSC39121402
-
IDEA Index ID8945371
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 42/280|UL94 HB Flammability Rating|NEMA WD1/WD5 WD6|RoHS Compliant|UL 489 File No. E1706|CSA Certified
-
Warranty10 years
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
-
Full Engineering Drawing
