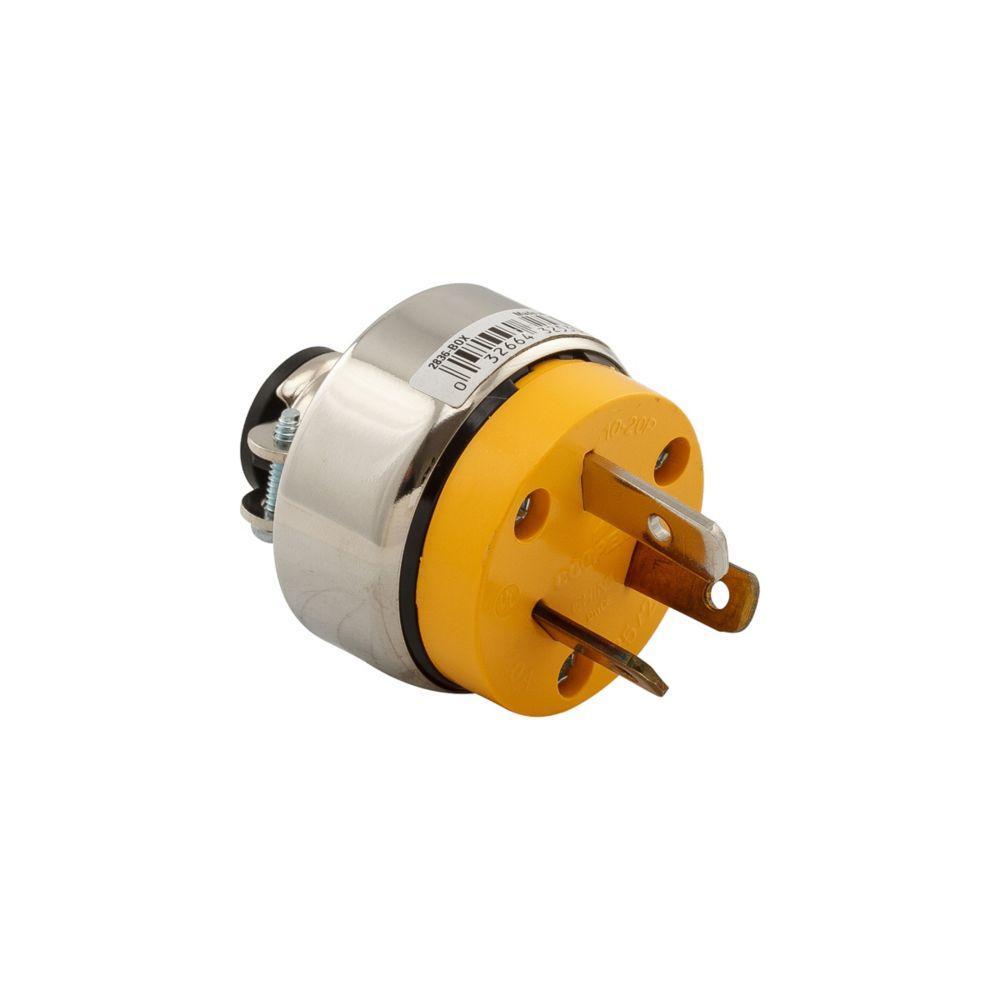

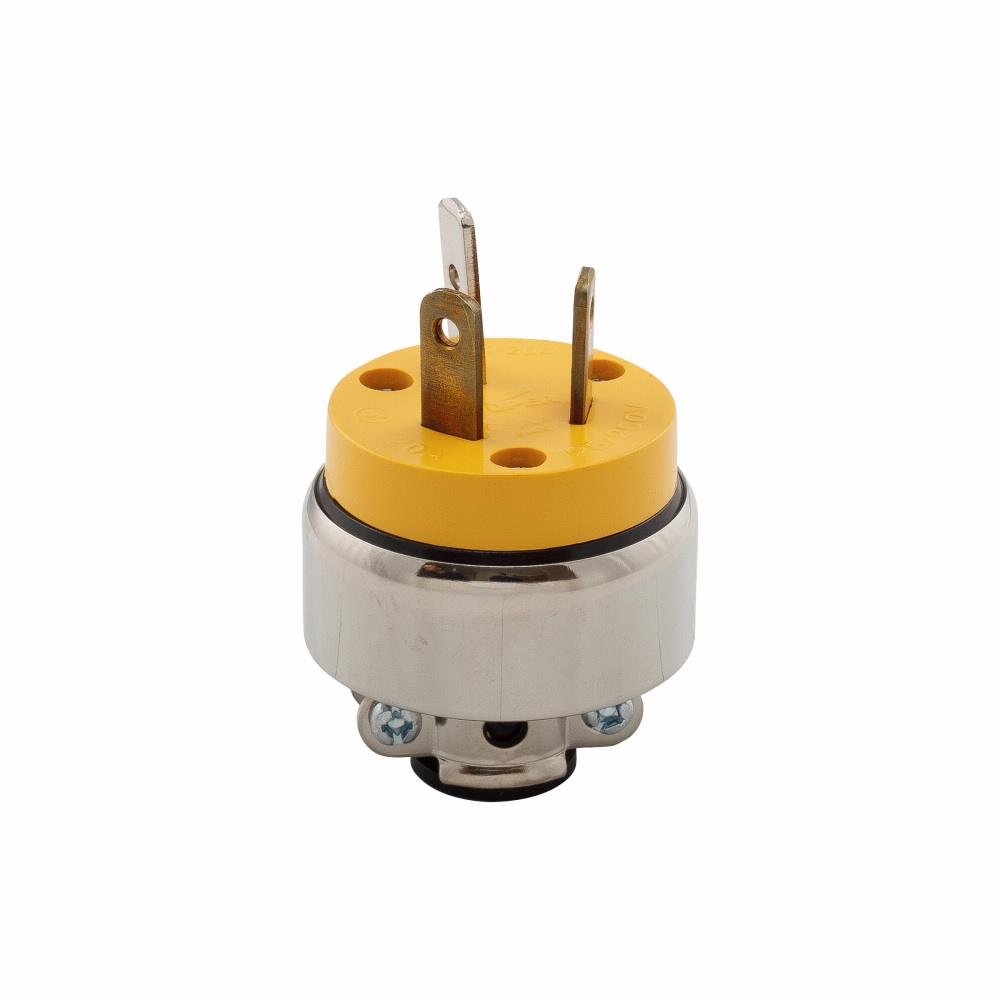

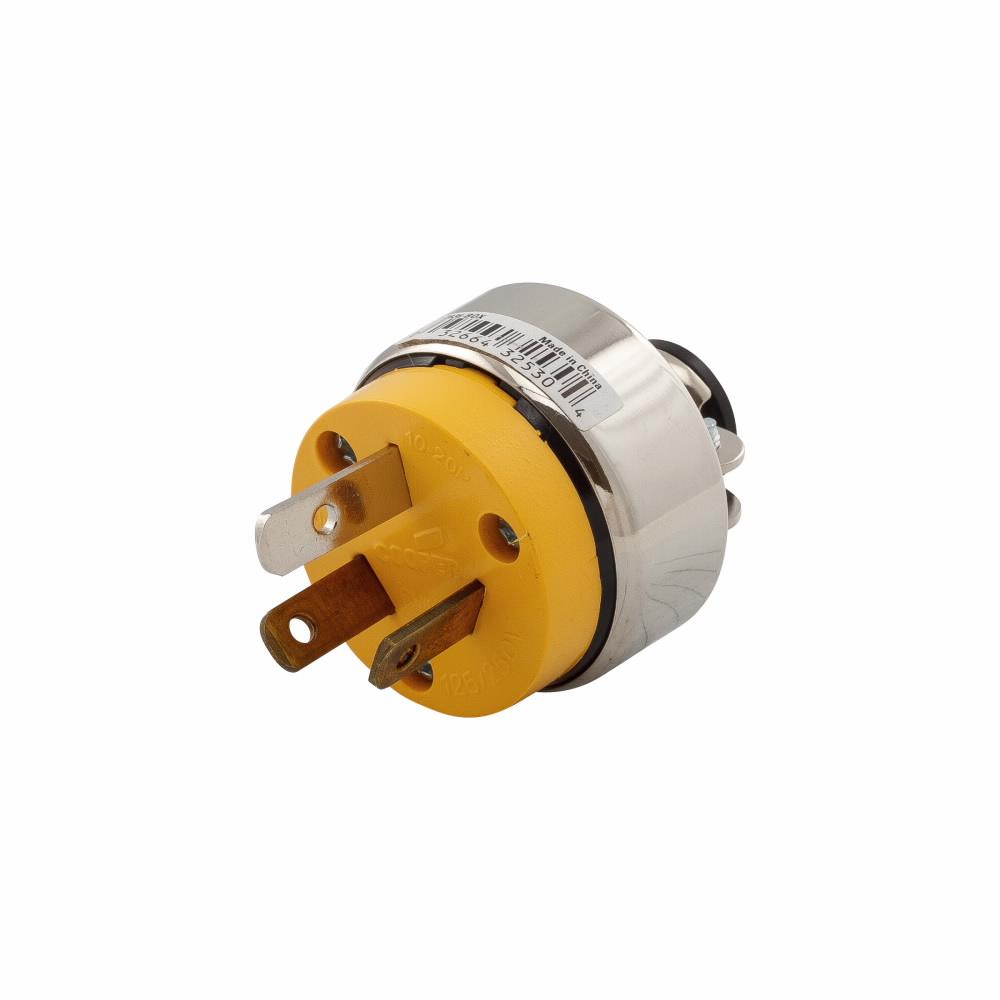

EATON Arrow Hart™ Eaton Wiring Devices 2836-BOX Armored Power Straight Blade Plug, 125/250 V AC, 20 A, 3 Poles, 3 Wires, Yellow
Heavy duty design and construction make Eaton's Arrow Hart power devices ideal for any high amperage industrial or commercial power connectivity application.
-
BrandEATON
-
UPC032664325304
-
Manufacturer Part Number2836-BOX
-
CountryUSA
-
Temperature Rating-20 to 75 deg C
-
Terminal TypeBack Wire/Threaded
-
MaterialPVC
-
ColorYellow
-
TypeArmored Power
-
GradeCommercial/Specification
-
NEMA RatingNEMA 10-20P
-
Voltage Rating125/250 V AC
-
Amperage Rating20 A
-
Number of Poles3
-
Dimensions1.87 in L x 1.93 in H
-
Number of Wires3
- Rugged high-strength construction
- Neoprene gasket seals around cord for added terminal protection from external elements
- Unique internal clamp design secures cord during assembly, reducing installation time
- Armored housing resists abuse and is automatically grounded
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 14 to 10 AWG wire terminal
- 1.65 in tip to tip
| Cross-Reference Number |
|---|
| 505226 |
-
Alternative Part Number8171471
-
UNSPSC39121402
-
IDEA Index ID8171471
-
Package DescriptionEACH
-
Standards/ApprovalscULus Listed,NOM,RoHS Compliant
-
Specification Sheet
-
Owners/User Manual
