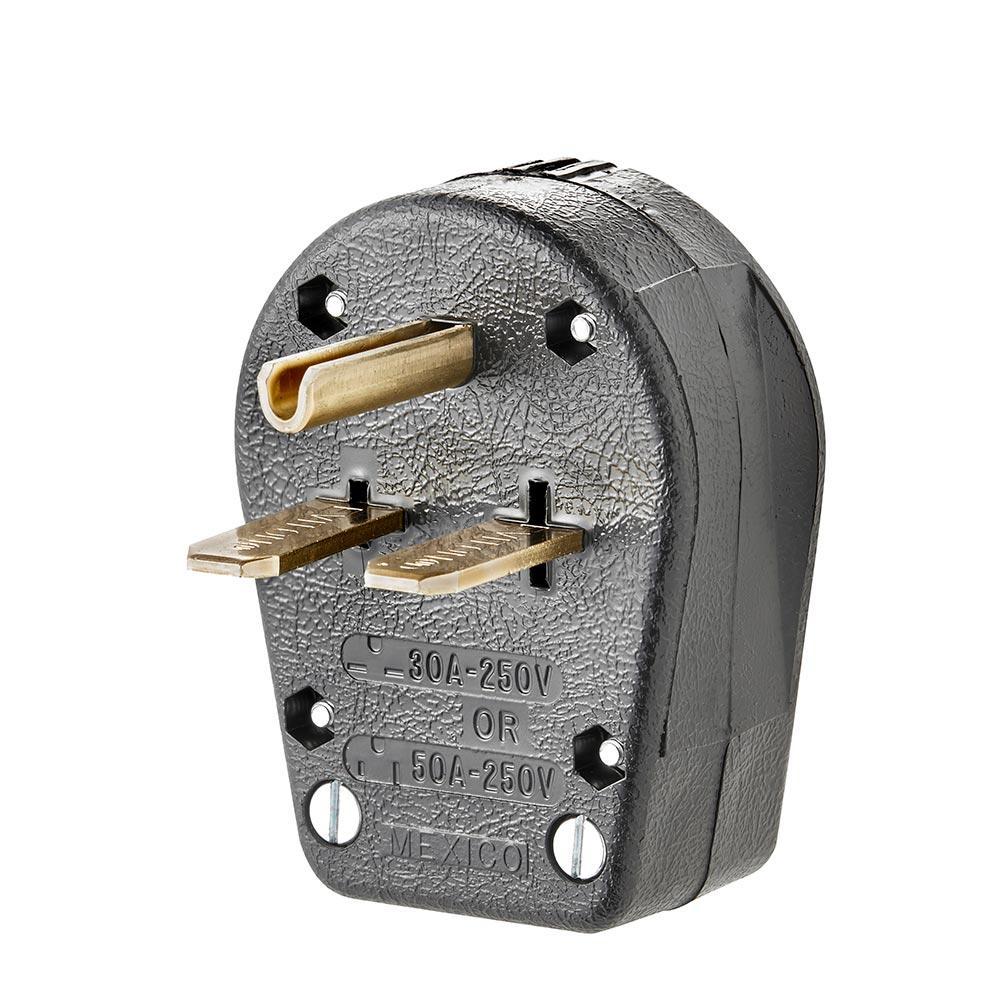

Leviton® 931-E Grounding Straight Blade Angle Plug, 250 V AC, 30/50 A, 2 Poles, 3 Wires, Black
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant and they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
-
BrandLeviton®
-
UPC078477644928
-
Manufacturer Part Number931-E
-
CountryUSA
-
Temperature Rating-40 to 60 deg F
-
Terminal TypeBacked-Out/Deep Slotted
-
MaterialThermoplastic
-
ColorBlack
-
TypeGrounding
-
GradeCommercial
-
NEMA Rating6-30P/6-50P
-
Voltage Rating250 V AC
-
Cord Diameter0.63 to 1.05 in
-
Amperage Rating30/50 A
-
Number of Poles2
-
Dimensions3.49 in L x 2.56 in W
-
Number of Wires3
-
EnclosureNEMA WD-6
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792U60 |
-
Alternative Part Number15900029
-
UNSPSC39121402
-
IDEA Index ID15900029
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File LR-406|NOM 057|UL 498 File No. E13393/94
-
Warranty2 years
-
Instruction/Installation Manual
