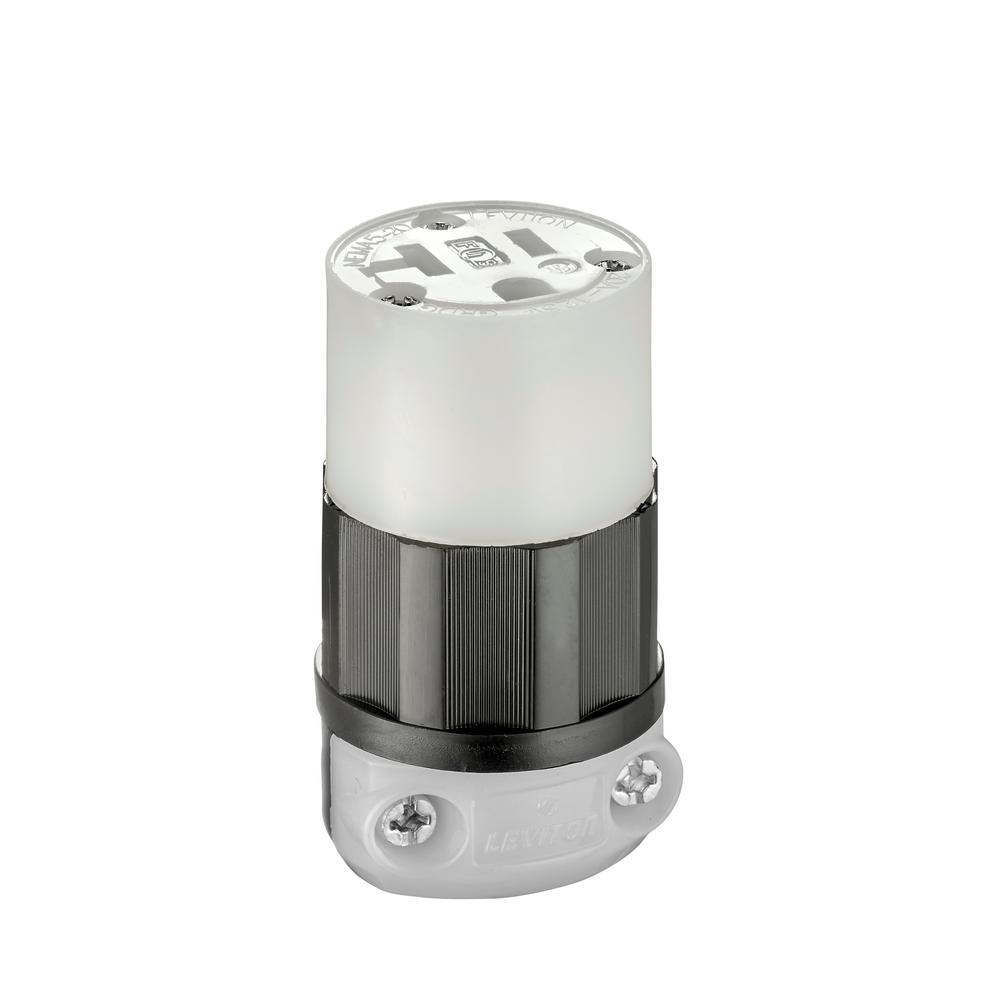

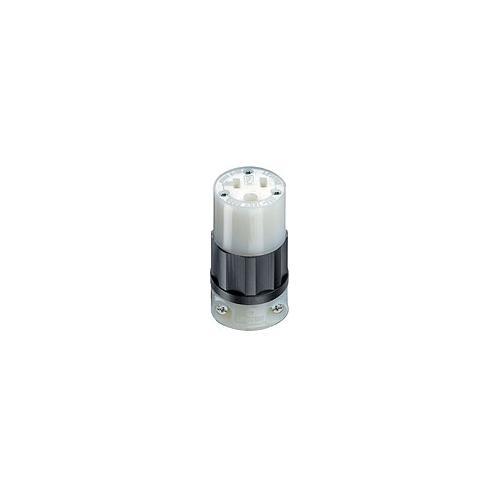

Leviton® 5369-C Cable Mount Grounding Straight Blade Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black/White
The Leviton® line of straight blade plugs and connectors includes black and White® industrial grade devices that resist impact, corrosion and chemicals and withstand punishing applications. Their innovative interlocking design, rugged nylon flanged inlets and outlets, integrated inlets and outlets with weather resistant covers and hospital grade devices that meet the highest standards for dependable, long term performance. Superior design, construction and ergonomic details provide long lasting performance and reliability in the demanding healthcare environment.
-
BrandLeviton®
-
UPC078477795941
-
Manufacturer Part Number5369-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Grounding
-
GradeIndustrial
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating20 A
-
Number of Poles2
-
Dimensions1.49 in Dia x 2.76 in H
-
Number of Wires3
- Rugged nylon construction resists impact, sunlight, chemicals and rough use
- All contacts are solid 1-piece brass for better conductivity
- Triple wipe, heavy duty power contacts set in deep pockets to resist damage
- Captive, color coded brass 8 AWG terminal screws
- Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed
- Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
- Zinc plated steel assembly screws and solid brass blade and contacts
- Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
- Super tough nylon body
- 18 to 10 AWG terminal accommodation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5C374 |
-
Alternative Part Number7326696
-
UNSPSC39121402
-
IDEA Index ID7326696
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|NOM 057|NEMA WD-1/WD-6|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13399|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
