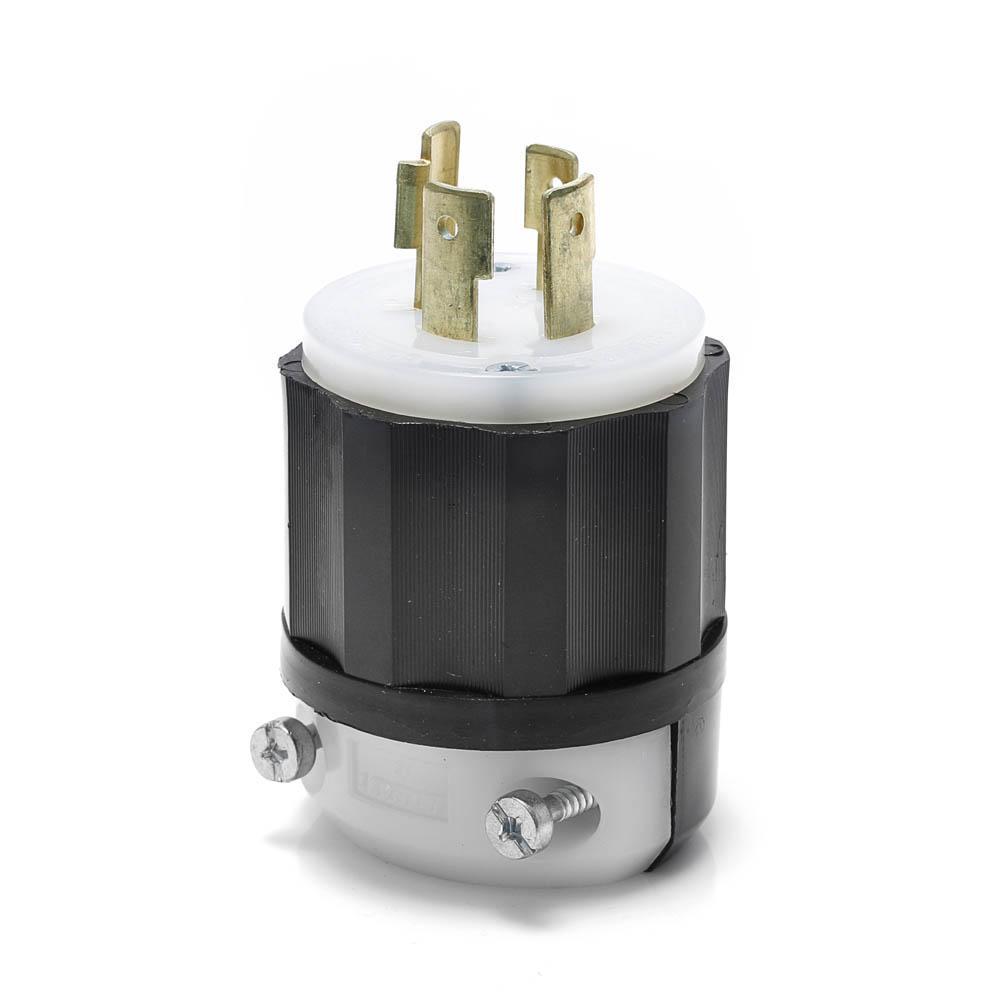

Leviton® 2431 3-Phase Grounding Cable Mount Locking Plug, 480 V AC, 20 A, 3 Poles, 4 Wires, Black/White
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477808184
-
Manufacturer Part Number2431
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L16-20P
-
Voltage Rating480 V AC
-
Cord Diameter0.595 to 0.895 in
-
Amperage Rating20 A
-
Horsepower5 hp
-
Number of Poles3
-
Dimensions2.22 in Dia x 2.7 in L
-
Number of Wires4
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HYP7 |
-
Alternative Part Number7331715
-
UNSPSC39121402
-
IDEA Index ID7331715
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
