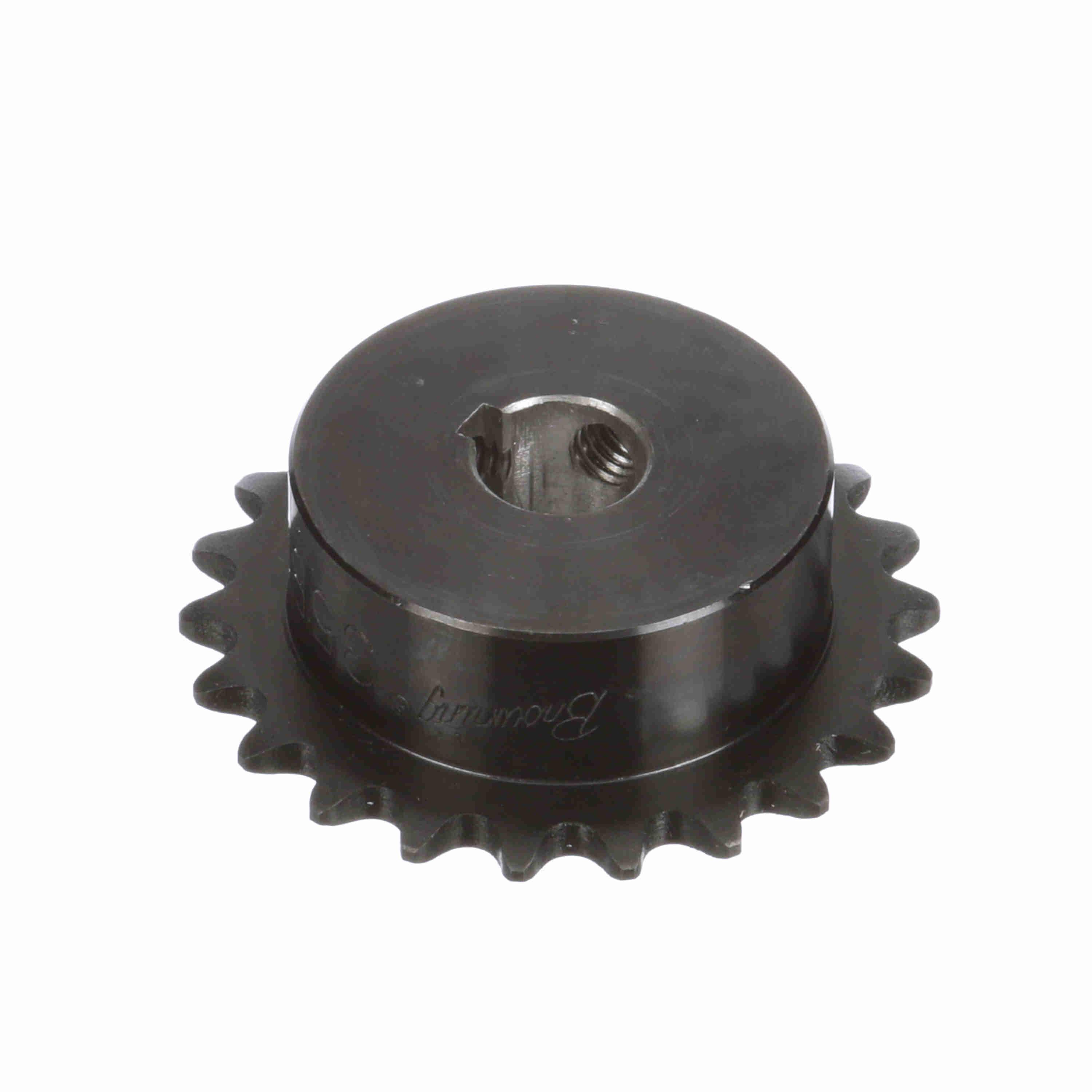

Browning 22-TOOTH #35-1 CHAIN SPROCKETS BRW H-3522 X 5/8

0 Ratings
$22.00
In Stock
SKU: BRWH3522X5/8
noimage_new

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

In Stock
HCI of Jackson: 6
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Browning®
  • UPC
    662289982721
  • Manufacturer Part Number
    1879220
  • Country
    USA
Specification
  • Pitch Diameter
    2.635 in
  • Material
    Steel
  • Chain Size
    #35
  • Type
    Single Strand Finished Bore Type 1
  • Hub Diameter
    2.203 in
  • Number of Teeth
    22
  • Outside Diameter
    2.83 in
  • Length Through Bore
    7/8 in
  • Bore Diameter
    5/8 in
Features
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 3/8 in pitch ANSI chain
  • Additional setscrew at 90 and 180 deg to keyway
Additional Information
  • Alternative Part Number
    H3522X5/8
  • UNSPSC
    31171901
  • Package Description
    1/PK
  • Warranty
    1 Year
