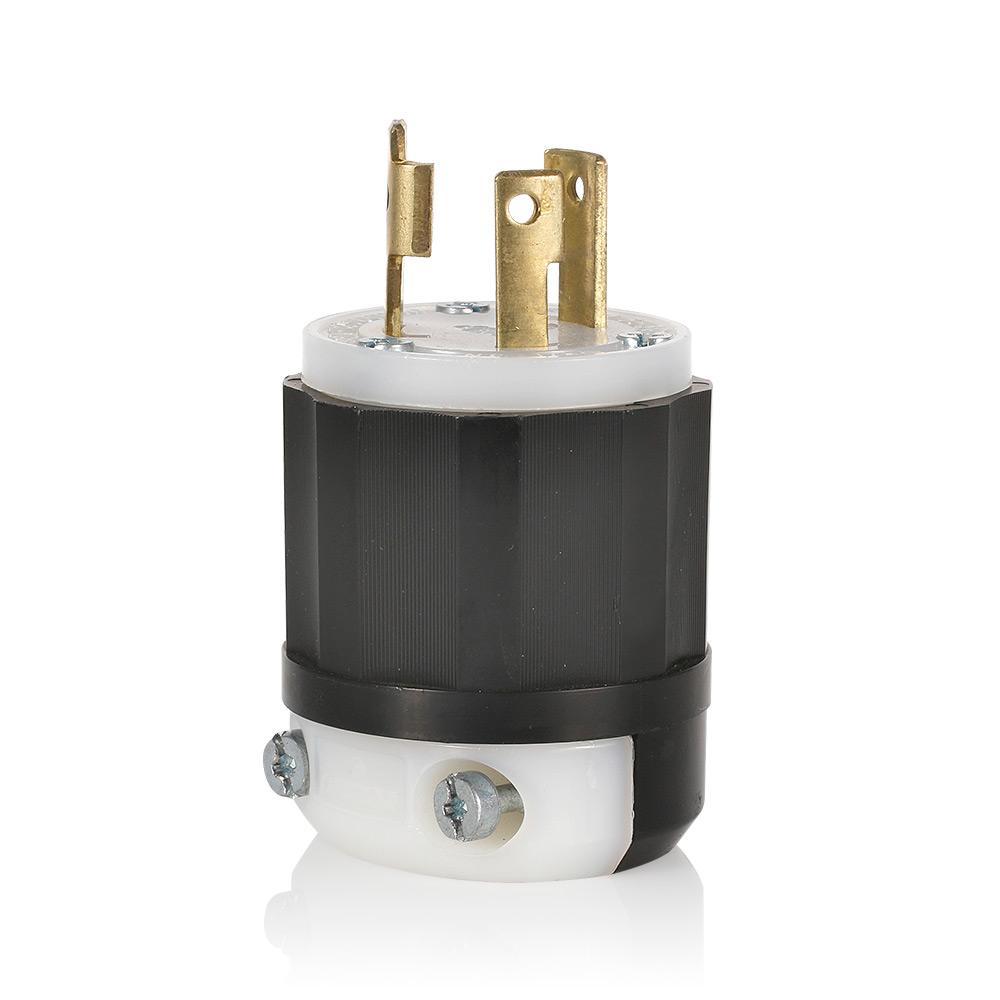

LEVITON 30-AMP 120-VOLT LOCKING MALE PLUGS LEV 2611
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
-
BrandEATON
-
UPC032664393303
-

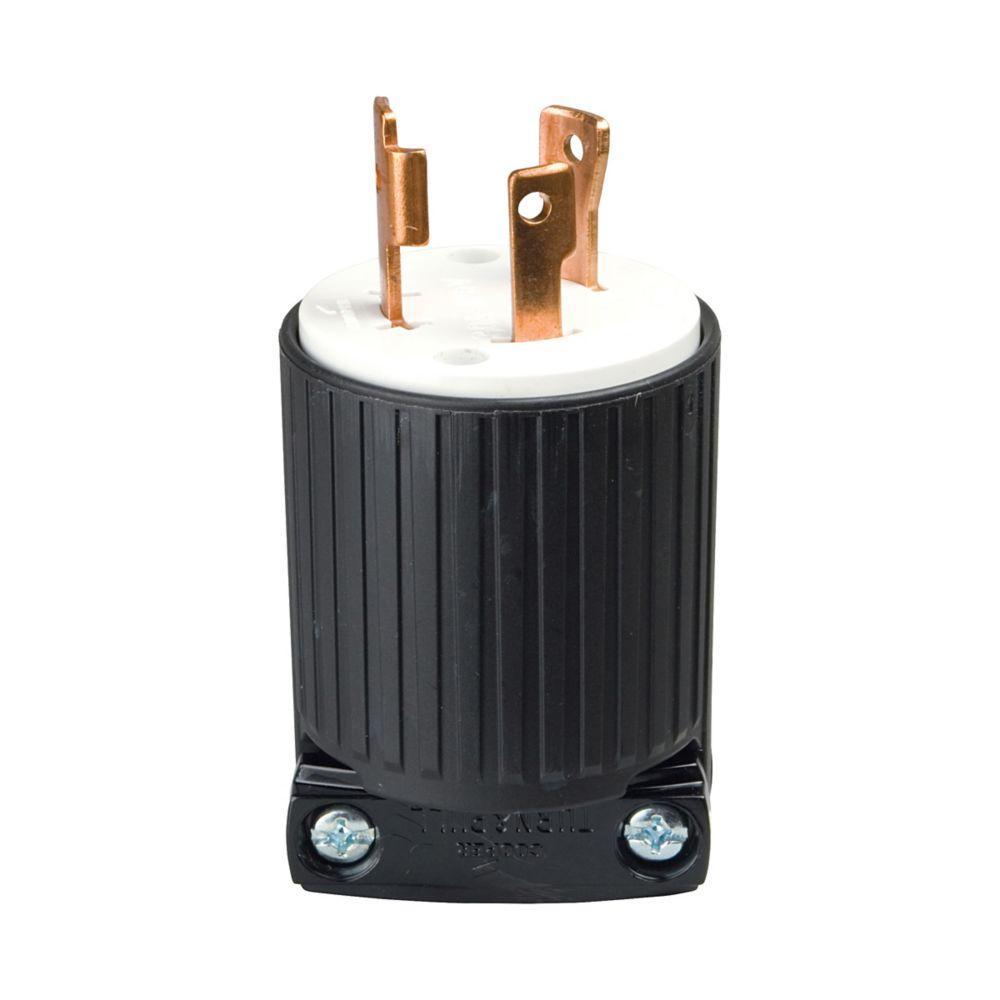

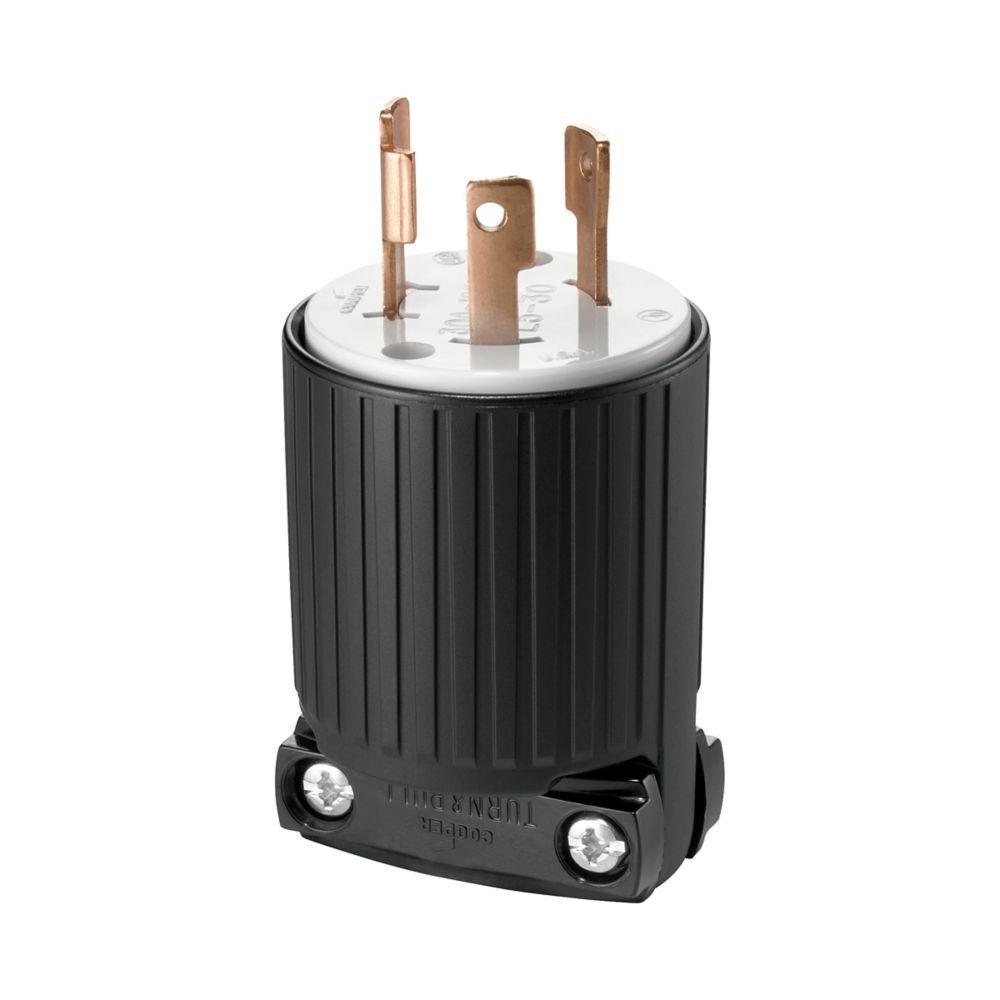

Manufacturer Part NumberL530P
-
CountryUSA
-
Temperature Rating-20 to 60 deg C
-
Terminal TypeBack Wire
-
MaterialPolycarbonate
-
ColorBlack/White
-
Type1-Phase Grounding Cable Mount
-
GradeCommercial/Specification
-
NEMA RatingNEMA L5-30
-
Voltage Rating125 V AC
-
Cord Diameter3/8 to 1 in
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions1.82 in Dia x 2.23 in L
-
Number of Wires3
- Abuse-resistant thermoplastic construction
- Back-wire dead front design
- External cable clamp provides firm strain-relief
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Dead front design
- 12 to 4 AWG wire
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKJ5 |
-
Alternative Part Number9097350
-
UNSPSC39121403
-
IDEA Index ID9097350
-
Package DescriptionEACH
-
Standards/ApprovalsNOM,CSA certified,UL Listed,Federal Specifications Classification W-C375,RoHS Compliant
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
