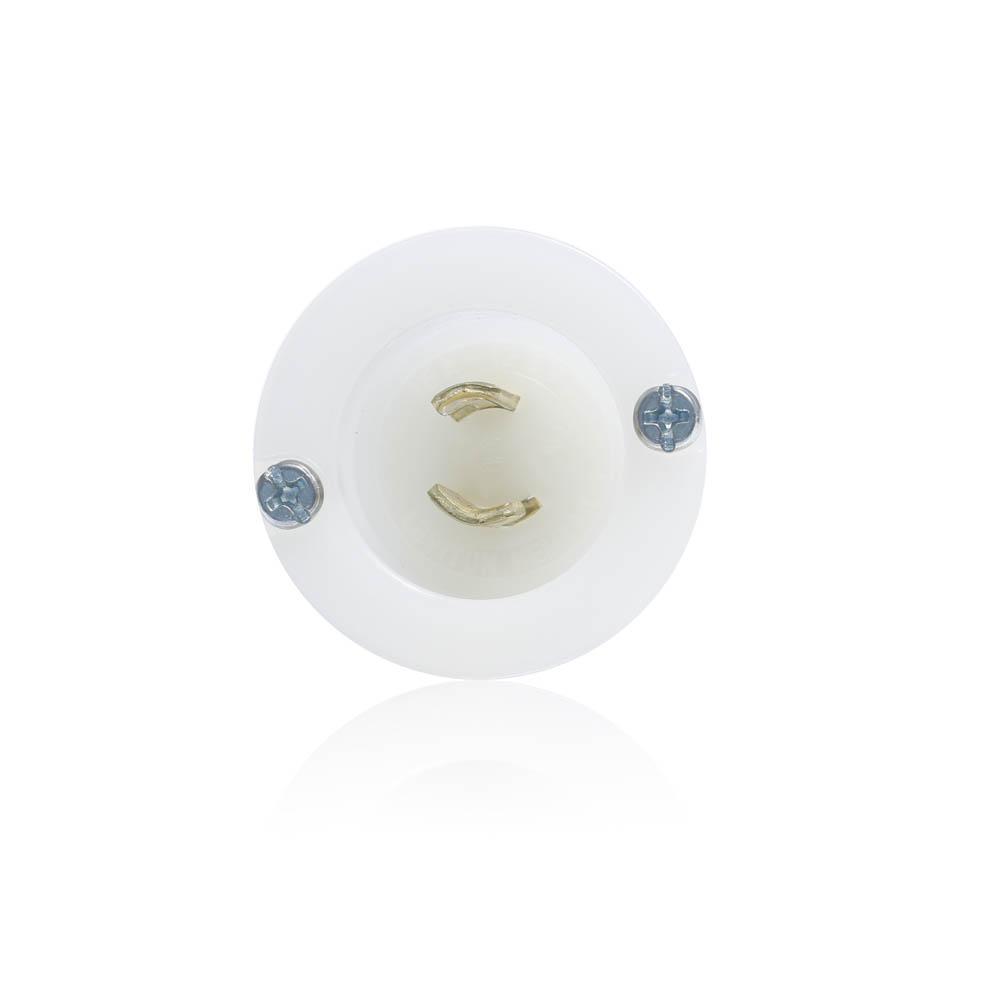

LEVITON 15-A MIDGET LOCKING FLANGED INLET LEV ML-1-PB
Leviton® black and white midget line of industrial grade locking blade plugs and connectors are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one piece construction for superior conductivity. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477987162
-
Manufacturer Part NumberML1-PB
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorWhite
-
TypeNon-Grounding Receptacle
-
GradeIndustrial
-
NEMA RatingNEMA ML1P
-
Voltage Rating125 V AC
-
Cord Diameter0.2 to 0.375 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.63 in W
-
Number of Wires2
- 18 to 14 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKG3 |
-
Alternative Part Number7366041
-
UNSPSC39121402
-
IDEA Index ID7366041
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No.42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
-
Instruction/Installation Manual
