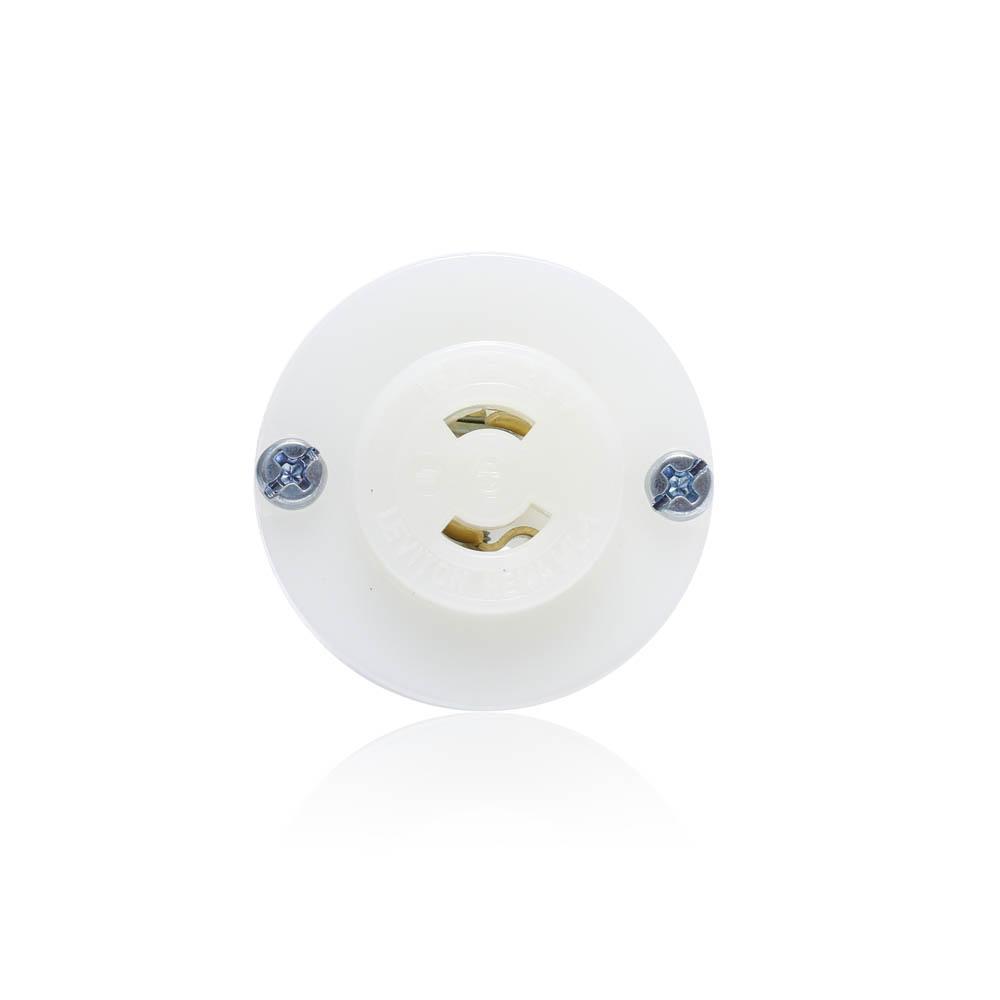

LEVITON MIDGET LOCKING FLANGED ELEC/OUTLET LEV ML-1-PER
Leviton® Black & White® midget line of industrial grade locking blade plugs and connectors are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477987285
-
Manufacturer Part NumberML1-PER
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorWhite
-
TypeNon-Grounding Receptacle
-
GradeIndustrial
-
NEMA RatingNEMA ML1P
-
Voltage Rating125 V AC
-
Cord Diameter0.2 to 0.375 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.63 in W
-
Number of Wires2
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKG4 |
-
Alternative Part Number7366136
-
UNSPSC39121402
-
IDEA Index ID7366136
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No.42 File No. LR406|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
RoHS
-
Instruction/Installation Manual
