LEVITON 15-AMP 277-V TWIST-LOCK CONNECTORS LEV 4779-C

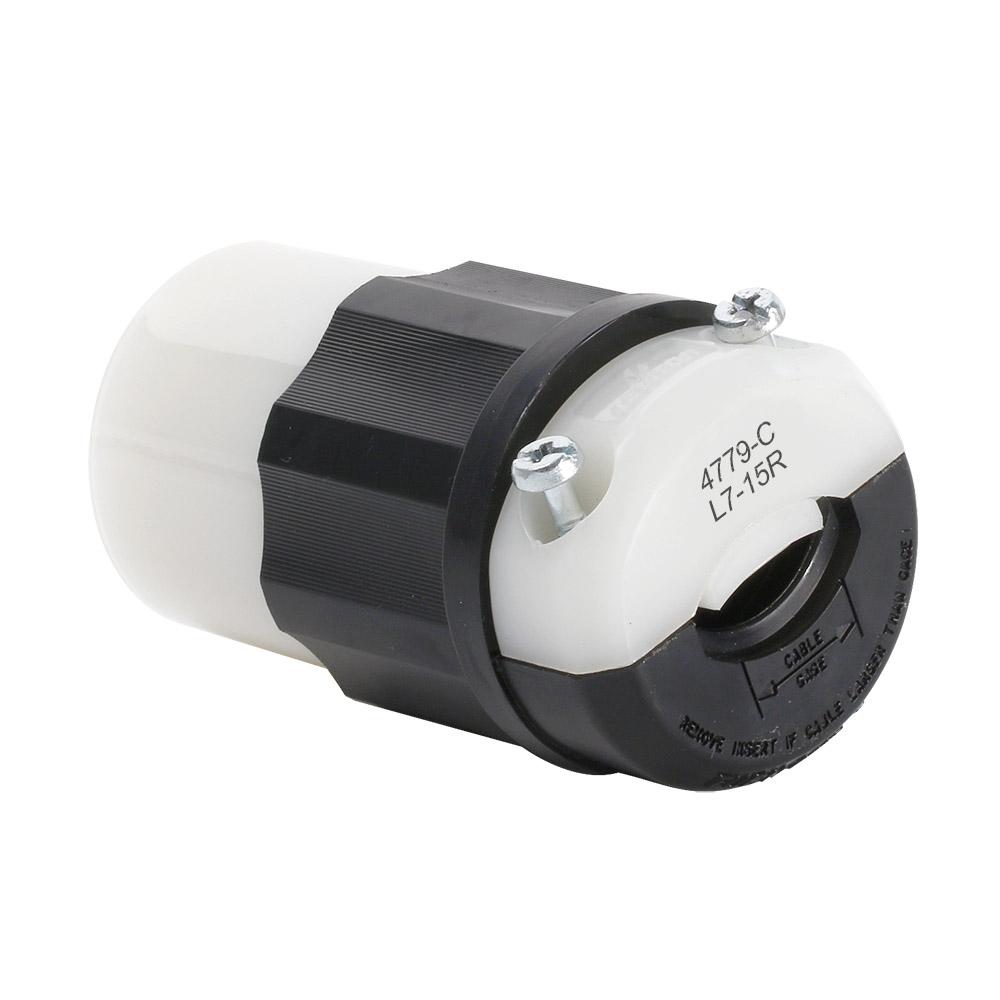

Leviton® 4779-C 1-Phase Grounding Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
-
BrandLeviton®
-
UPC078477795804
-
Manufacturer Part Number4779-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Grounding
-
GradeIndustrial
-
NEMA RatingNEMA L7-15R
-
Voltage Rating277 V AC
-
Cord Diameter0.24 to 0.7 in
-
Amperage Rating15 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions1.53 in Dia x 2.76 in H
-
Number of Wires3
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord-clamp does not have to be disassembled from body for wiring - accepts all wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Grounding
- 1-phase
- Cable mounting
- Impact modified nylon
- 18 to 10 AWG terminal accommodation
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKL8 |
-
Alternative Part Number7326614
-
UNSPSC39121406
-
IDEA Index ID7326614
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Specification Sheet
Recently Viewed
Leviton® 4779-C 1-Phase Grounding Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Proto® J49316S2 1-Piece Roll Pin Punch, 3/16 in Parabolic Punch, 5-7/16 in OAL, Steel
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

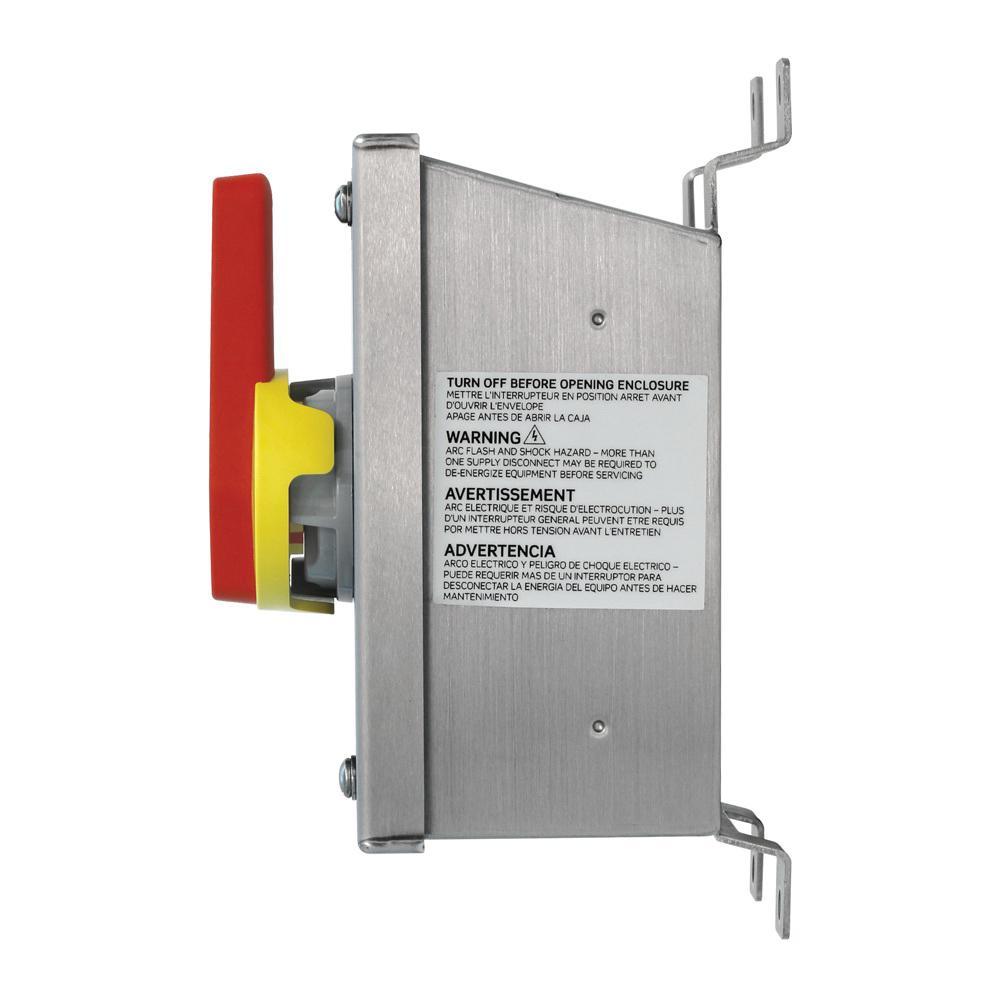

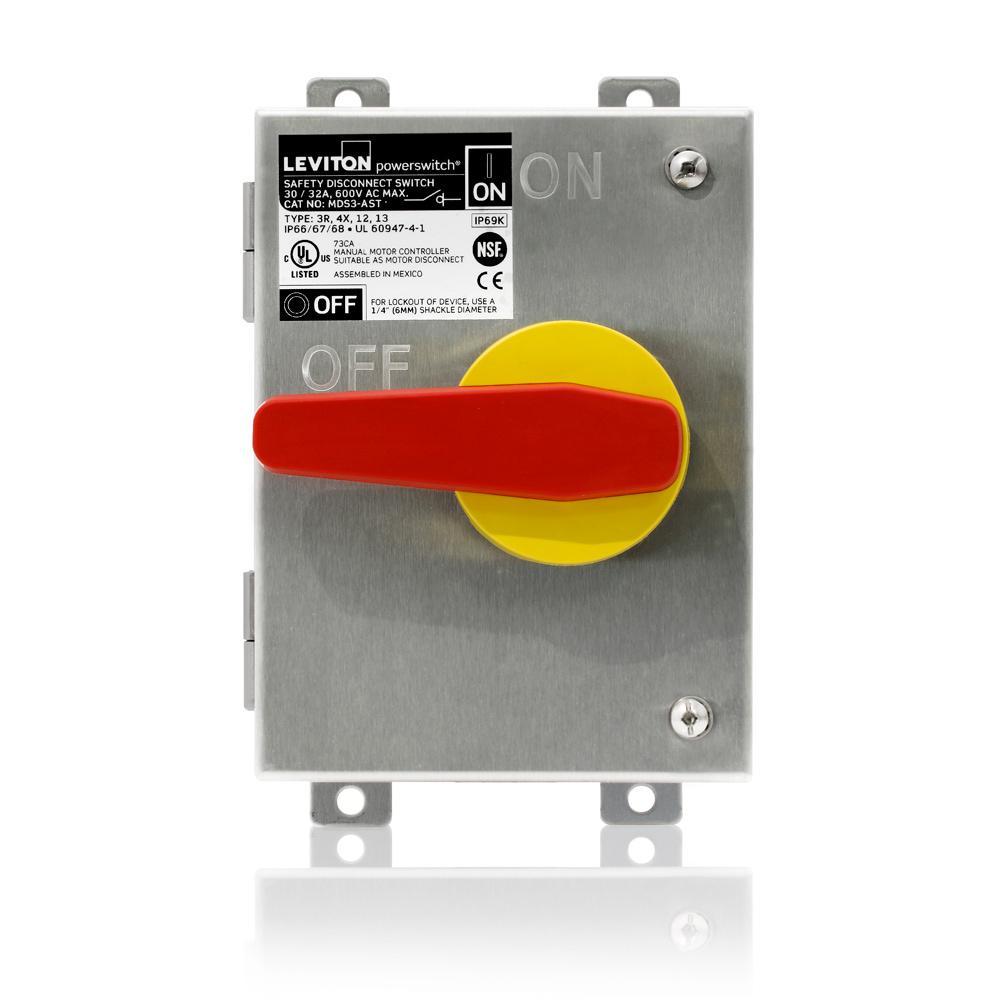

Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
