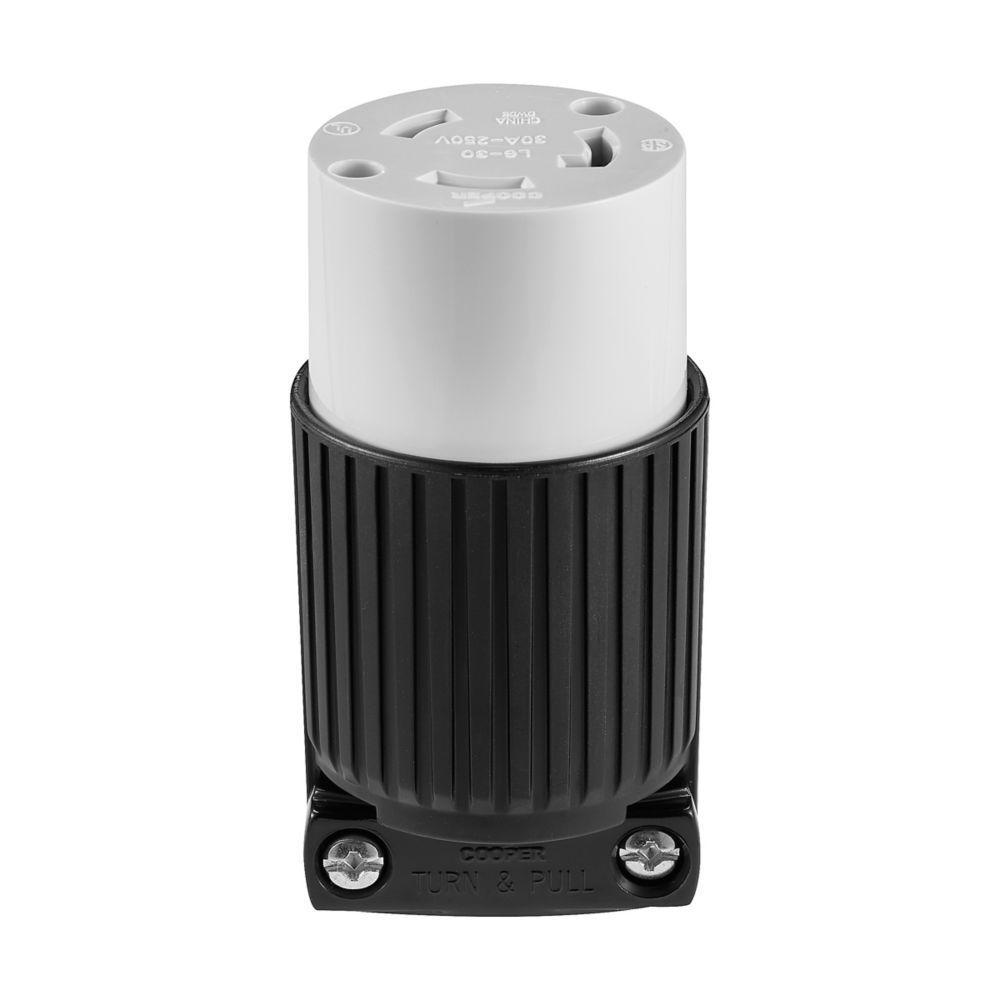

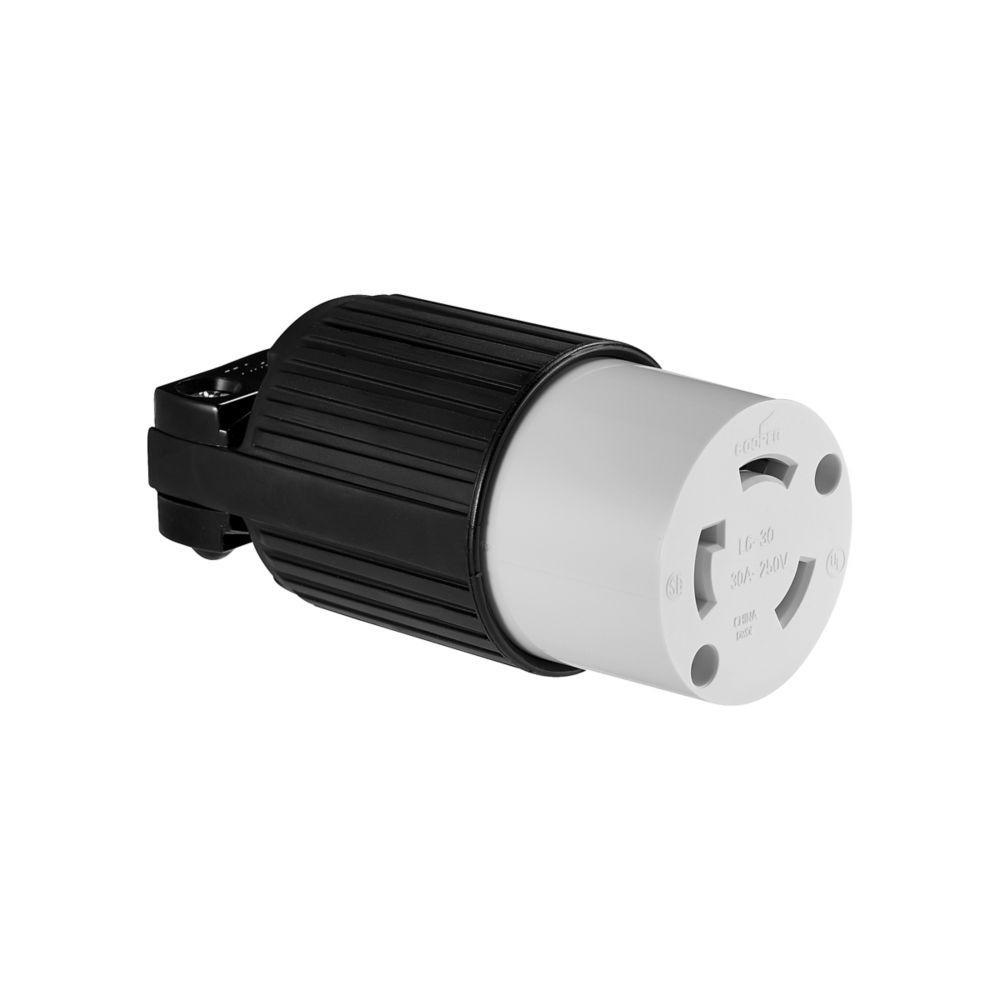

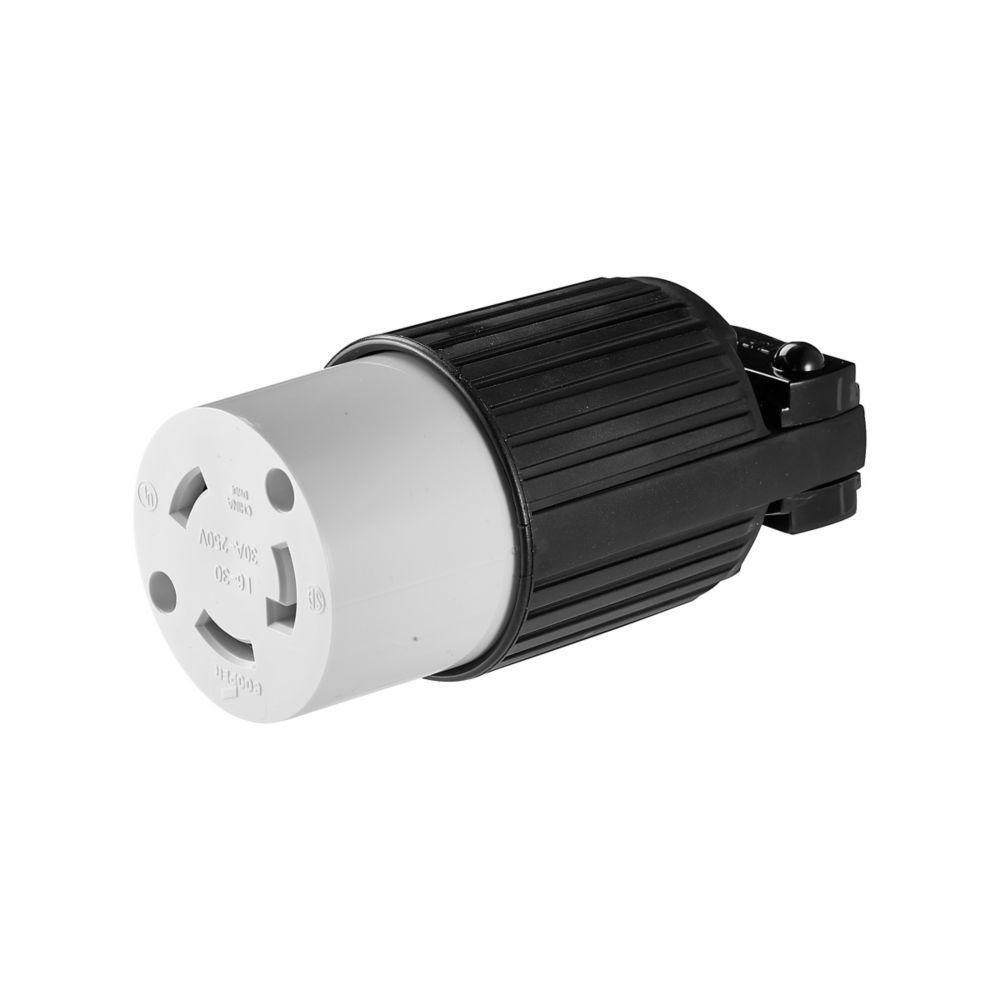

Wiring Devices L630C Locking Connector, 250 V AC, 30 A, 2 Poles, 3 Wires, Black/White
Industrial grade locking devices are designed for quick and easy installation and provide reliable performance in tough industrial environments.
-
BrandEATON
-
UPC032664393600
-
Manufacturer Part NumberL630C
-
CountryUSA
-
Temperature Rating-20 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolycarbonate
-
ColorBlack/White
-
GradeCommercial/Specification
-
NEMA RatingNEMA L6-30
-
Voltage Rating250 V AC
-
Cord Diameter0.25 to 0.69 in
-
Amperage Rating30 A
-
Number of Poles2
-
Number of Wires3
- Abuse-resistant thermoplastic construction
- Back-wire dead front design
- External cable clamp provides firm strain-relief
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Triple-combination head screws standard slot Phillips®/Robertson for use in the us and Canada
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Dead front design
- 12 to 4 AWG wire
-
Alternative Part Number9089255
-
UNSPSC39121402
-
IDEA Index ID9089255
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA certified,NOM,RoHS Compliant
-
