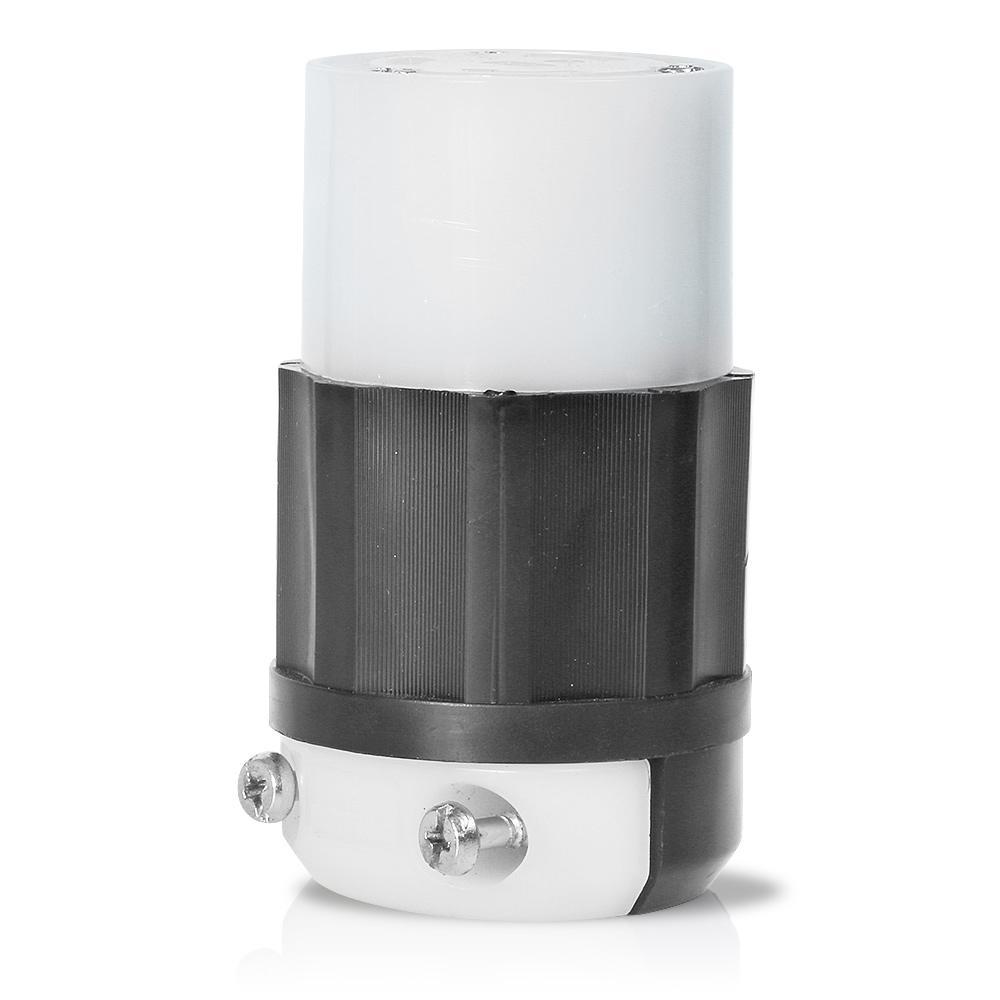

LEVITON 30-A 250-V LOCKING ELEC/CONNECTOR LEV 2723
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477808450
-
Manufacturer Part Number2723
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type3-Phase Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L15-30R
-
Voltage Rating250 V AC
-
Cord Diameter0.595 to 1.15 in
-
Amperage Rating30 A
-
Horsepower3-1/2 hp
-
Number of Poles3
-
Dimensions2.22 in Dia x 3.78 in L
-
Number of Wires4
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKK6 |
-
Alternative Part Number7331900
-
UNSPSC39121402
-
IDEA Index ID7331900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
