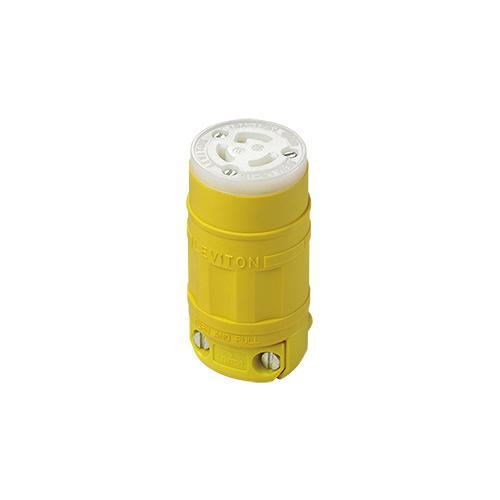

LEVITON 15-AMP 3-WIRE LOCKING CONNECTORS LEV 2547
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477852965
-
Manufacturer Part Number2547
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialTPV
-
ColorYellow
-
Type1-Phase Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L5-15R
-
Voltage Rating125 V AC
-
Cord Diameter0.24 to 0.655 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.54 in Dia x 3 in H
-
Number of Wires3
-
Alternative Part Number7345743
-
UNSPSC39121402
-
IDEA Index ID7345743
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
