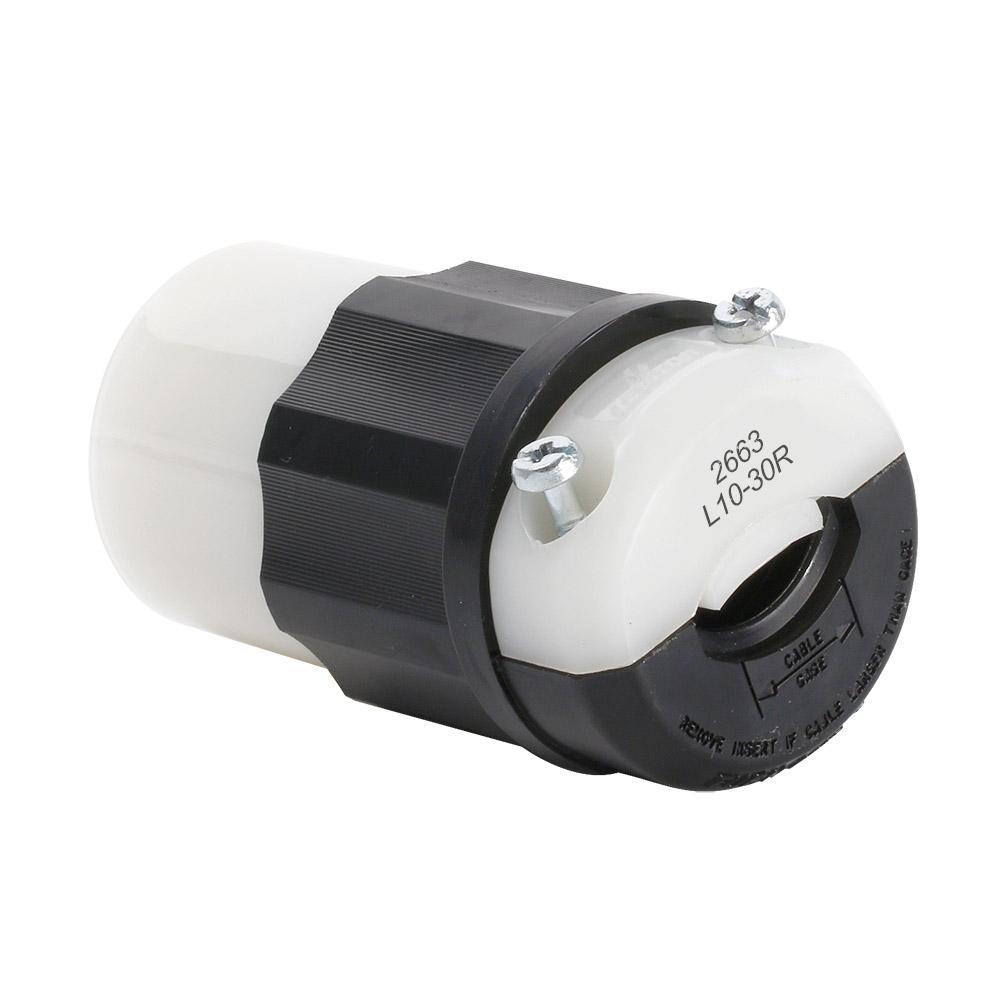

LEVITON 30-A 125/250V 3-P 3-W FEMALE PLUGS LEV 2663
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477807781
-
Manufacturer Part Number2663
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Non-Grounding Cable Mount
-
GradeIndustrial
-
NEMA RatingNEMA L10-30R
-
Voltage Rating125/250 V AC
-
Cord Diameter0.385 to 0.93 in
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions28 in Dia x 2.47 in H
-
Number of Wires3
-
Alternative Part Number7331451
-
UNSPSC39121402
-
IDEA Index ID7331451
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Specification Sheet
-
Specification Sheet
