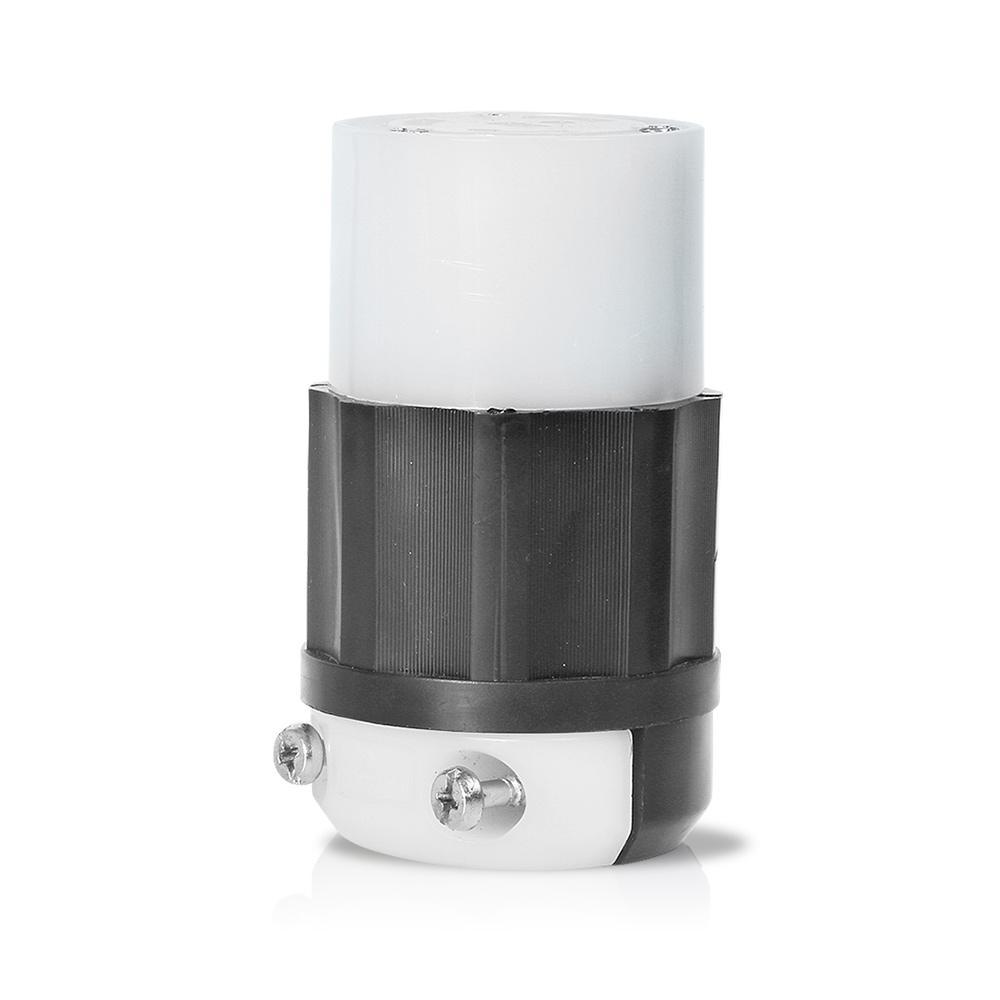

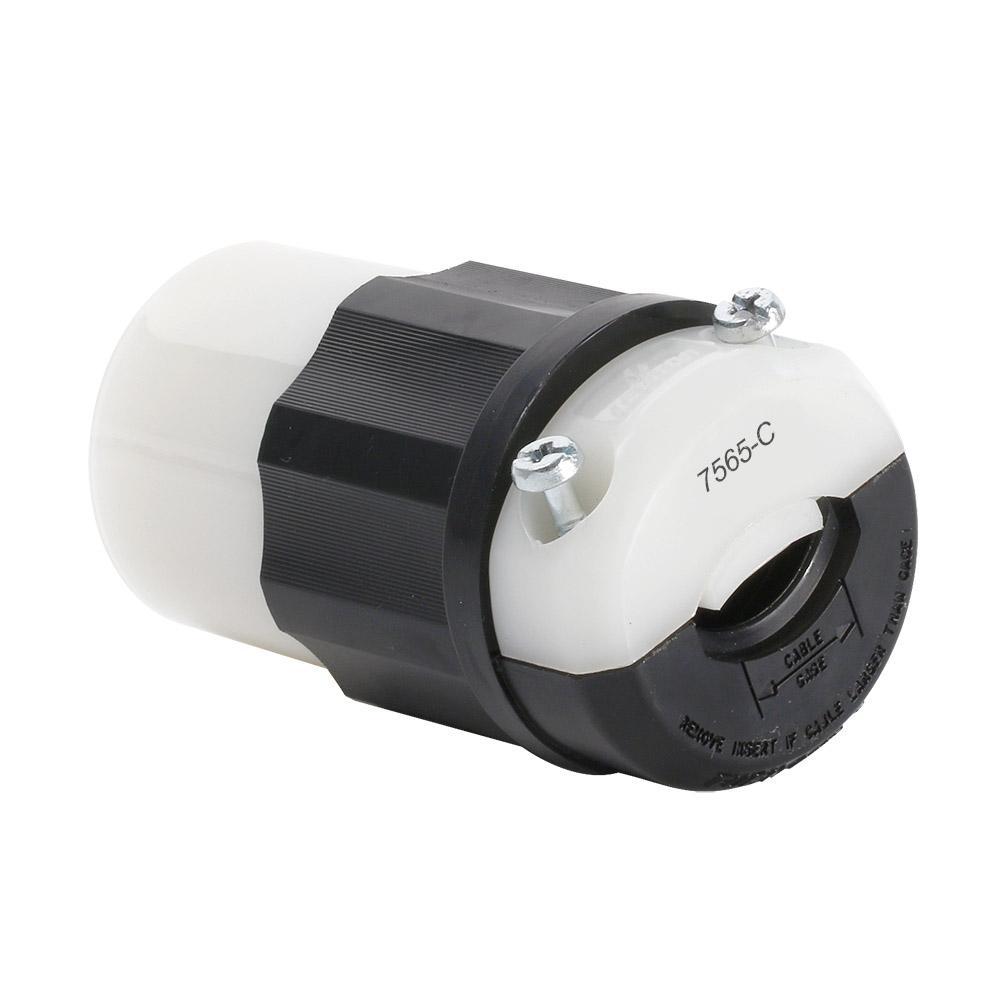

Leviton® Black & White® 7565-C 1-Phase Non-Grounding Locking Connector, 125/250 V AC, 15/10 A, 3 Poles, 3 Wires, Black/White
Leviton® Black & White® 7565-C 1-Phase Non-Grounding Cable Mount Locking Connector, 125/250 VAC, 10/15 A, 3 Poles, 3 Wires, Black/White
-
BrandLeviton®
-
UPC078477820131
-
Manufacturer Part Number7565-C
-
CountryCanada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Non-Grounding
-
GradeIndustrial
-
Voltage Rating125/250 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating15/10 A
-
Number of Poles3
-
Dimensions2.22 in Dia x 3.78 in H
-
Number of Wires3
-
Alternative Part Number12135190
-
UNSPSC39121402
-
IDEA Index ID12135190
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR406|NEMA WD-1/WD-6|NOM 057 Certified|UL 498|File No. E13393|UL Federal Specification WC-596 File E13393 Listed
-
Specification Sheet
-
Instruction/Installation Manual
