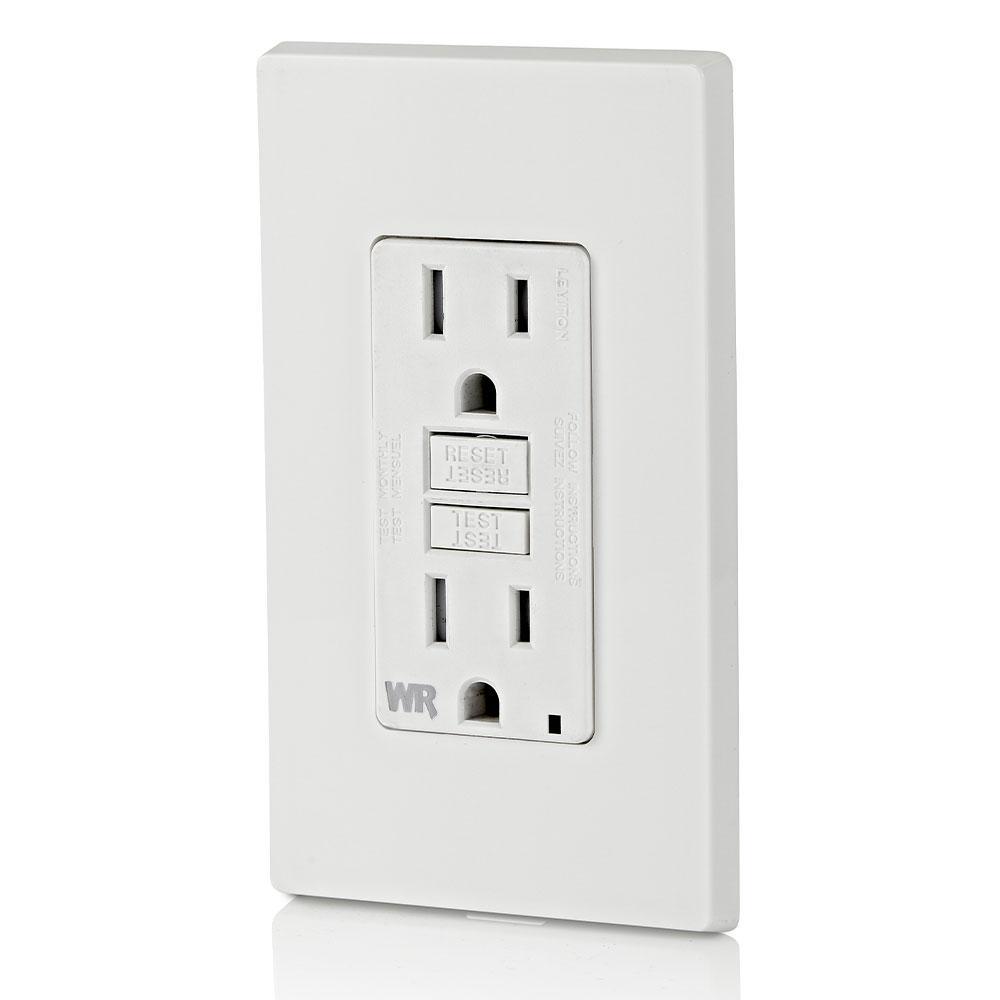

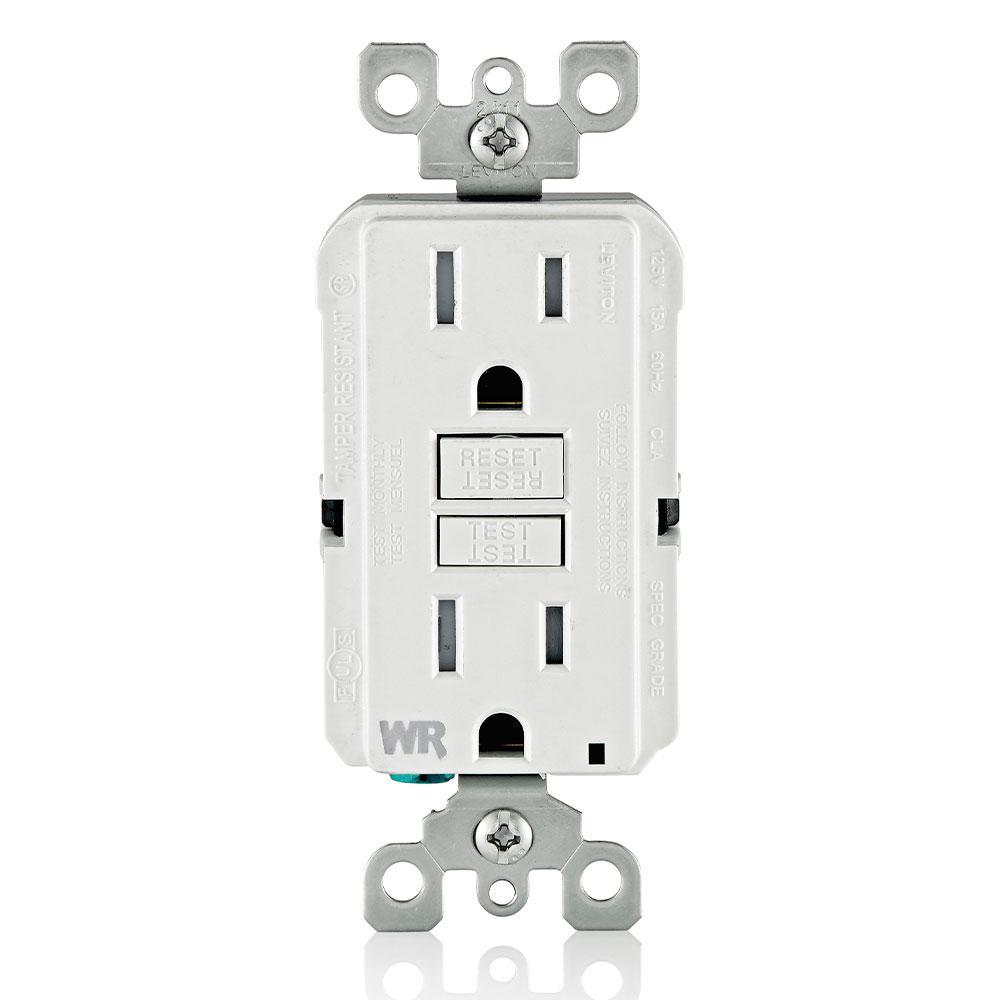

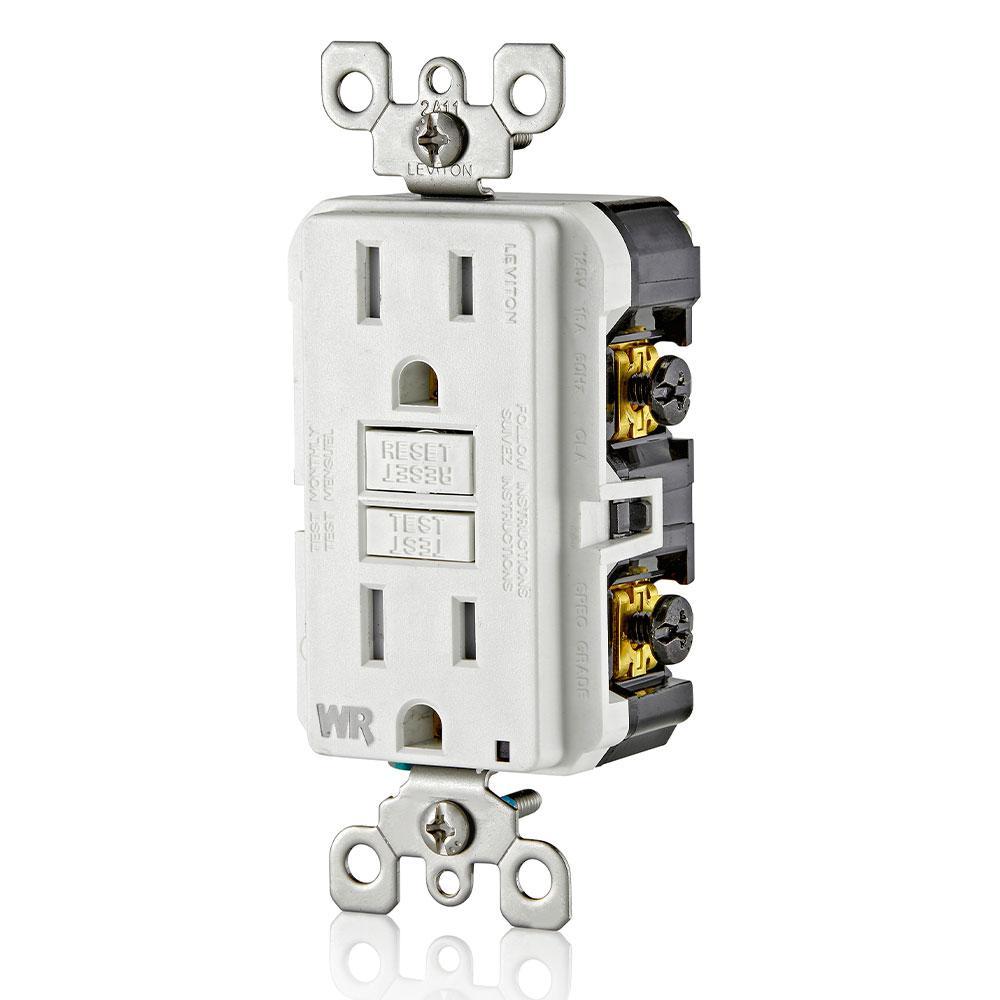

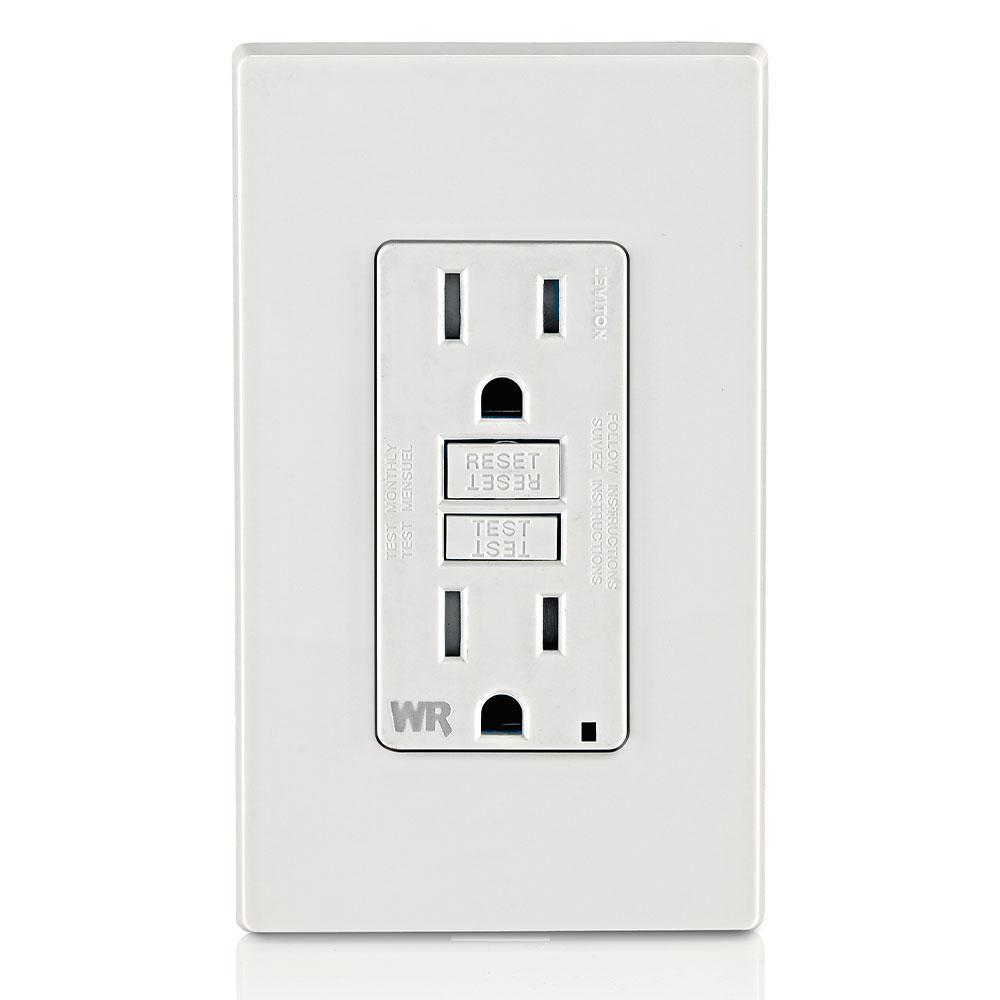

SmartlockPro® GFWT1-W Duplex Feed Through Self-Test Slim Tamper-Resistant Weather-Resistant GFCI Receptacle With White Test and Reset Button, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Peace of mind, all the time. The SmartlockPro® Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton® patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro® Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.
-
BrandLeviton®
-
UPC078477709238
-
Manufacturer Part NumberGFWT1-W
-
CountryCanada
-
Temperature Rating-35 to 66 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolycarbonate
-
ColorWhite
-
TypeDuplex Feed Through Self-Test Slim Tamper-Resistant Weather-Resistant
-
GradeCommercial/Residential/Specification
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions4.21 in H x 1.69 in W x 1.32 in D
-
Number of Wires3
- Provides continuous ground fault protection detects and trips on actual ground fault even when self test is being conducted
- On initial power up, tests the GFCI within 3 s
- Auto monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Stainless steel strap and screws, cold impact resistant face and buttons
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Compatible with all Decora® devices and wallplates
-
Alternative Part Number13430810
-
UNSPSC39121406
-
IDEA Index ID13430810
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 144.1-06|CSA LR-57811|CSA C22.2 No. 42|Federal Specification WC-596|MIL-SPEC A-A-55459-SB|NOM Certified|UL 498, 943, File No. E48380
-
Instruction/Installation Manual
