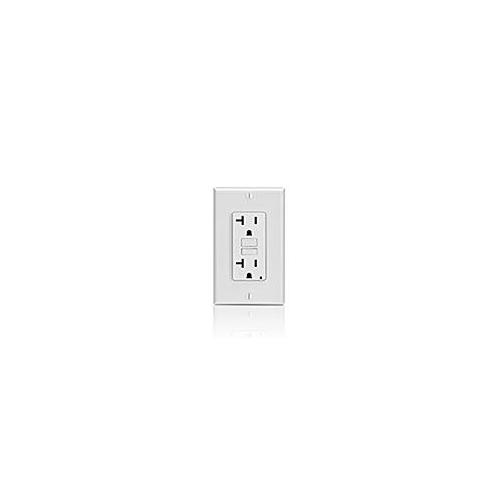

SmartlockPro® N7899-KI Slim Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Slim is in. New SmartlockPro slim GFCIs install easily industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque.
-
BrandLeviton®
-
UPC078477560976
-
Manufacturer Part NumberN7899-KI
-
CountryUSA
-
Temperature Rating-35 to 66 deg C
-
Terminal TypeScrew
-
MaterialPolycarbonate
-
ColorIvory
-
TypeDuplex
-
GradeProfessional
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
SeriesSlim
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions4.21 in H x 1.69 in W x 1.32 in D
-
Number of Wires3
- Reduced depth of SmartLockPro® Slim GFCI makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options back and Side wire capable
- External Back-wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clips
- Automatically test the GFCI every time the RESET button is pushed in the GFCI will not reset if the GFCI circuit is not functioning properly
- By blocking reset of the GFCI if protection has been compromised, SmartlockPro Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
- A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices, green LED indicator on the GFCI face also illuminates to alert the installer to the line load wiring reversal
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora® devices and wallplates available in select Decora® colors
- Withstands 1250 VAC per UL 943 and CSA-C22.2 NO 144.1-06
- 10 kA short circuit current rating
- Max 30 C after 100 cycles OL at 150% rated current
- Rated V-2 per UL94 flammability
- Thermoplastic face, brass triple-wipe 0.031 in THK, plated steel terminal screws, plated steel grounding screw, zinc plated steel yoke, brass clamps
- Brass-hot, green-ground, silver-neutral terminal ID
- 14 to 10 AWG terminal accommodation
- Class A, 5 mA +/- 1 mA trip level
-
Alternative Part Number11760276
-
UNSPSC39121406
-
IDEA Index ID11760276
-
IncludesMonochromatic
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|UL498|CSA C22.2 File No. 42|NOM 057 Certified|MIL Specification A-A-55459-SB|UL 943 File E48380|CSA-C22.2 File No. 144.1-06|CSA File No. LR57811|Federal Spec WC-596|UL 94 V-2 Flammability Rated
-
Warranty2 Years Limited
-
Specification Sheet
