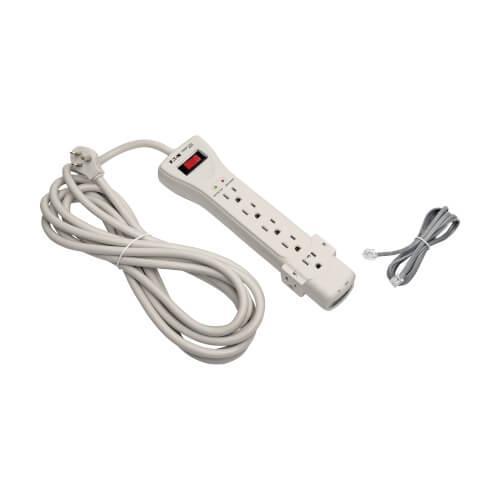

Tripp Lite Protect It!® SUPER7TEL15 Surge Protector With Right-Angle Plug, 120 V AC, 15 A, 7 Outlets, 15 ft L Cord, Plug-In Mount
Tripp Lite's SUPER7TEL15 surge suppressor offers complete AC and phone line surge suppression for comprehensive protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Heavy grade AC surge suppression shields connected equipment from damage and performance problems due to transient surges. Set of RJ11 telephone line suppression jacks protect dialup and DSL modem lines, fax machines, cordless phones and more. SUPER7TEL15 offers 7 total outlets, extra-long 15 ft cord with space saving angled plug and diagnostic LEDs to warn of wiring problems and suppressor damage. Heavy grade AC suppression rated at 2520 J shields equipment from surges and line noise. Attractive gray suppressor housing with keyhole mounting slots and 3 designated transformer plug outlets offers convenient protection of desktop computer equipment and accessories. $75,000 Ultimate Lifetime Insurance (US, Canada and Puerto Rico only). PLUG/OUTLETS: Input: NEMA5-15P/Output: 7 NEMA5-15R/15-ft. AC line cord ELECTRICAL: 120 VAC, 50/60 Hz, 15 A (Requires NEMA5-15R wall receptacle) FORMAT: Corded multi-outlet strip with 3 transformer spaced outlets SUPPRESSION: AC: 150 VAC RMS Clamping/2520 J/330 L-G, 400 L-N, 400 N-G UL1449 Let-through Phone: Single telephone line surge suppression (RJ11 jacks, 2 wire, 1 line).
-
BrandTripp Lite
-
UPC037332095381
-
Manufacturer Part NumberSUPER7TEL15
-
CountryUSA|Canada
-
Plug TypeNEMA 5-15P
-
Receptacle TypeNEMA 5-15R
-
Frequency Rating50/60 Hz
-
ColorLight Gray
-
MountingPlug-In
-
Voltage Rating120 V AC
-
Cord Length15 ft
-
Amperage Rating15 A
-
Housing MaterialPlastic
-
Number of Outlet Rows1
-
Number of Outlets7
-
Dimensions2.72 in W x 10.3 in D x 1.54 in H
- 2520 Jrating
-
Alternative Part Number14817686
-
UNSPSC39121610
-
IDEA Index ID14817686
-
Package DescriptionUNIT
-
Standards/ApprovalsExceeds IEEE 587 category A&B specifications
-
WarrantyLifetime Limited
-
Specification Sheet
-
Owners/User Manual
