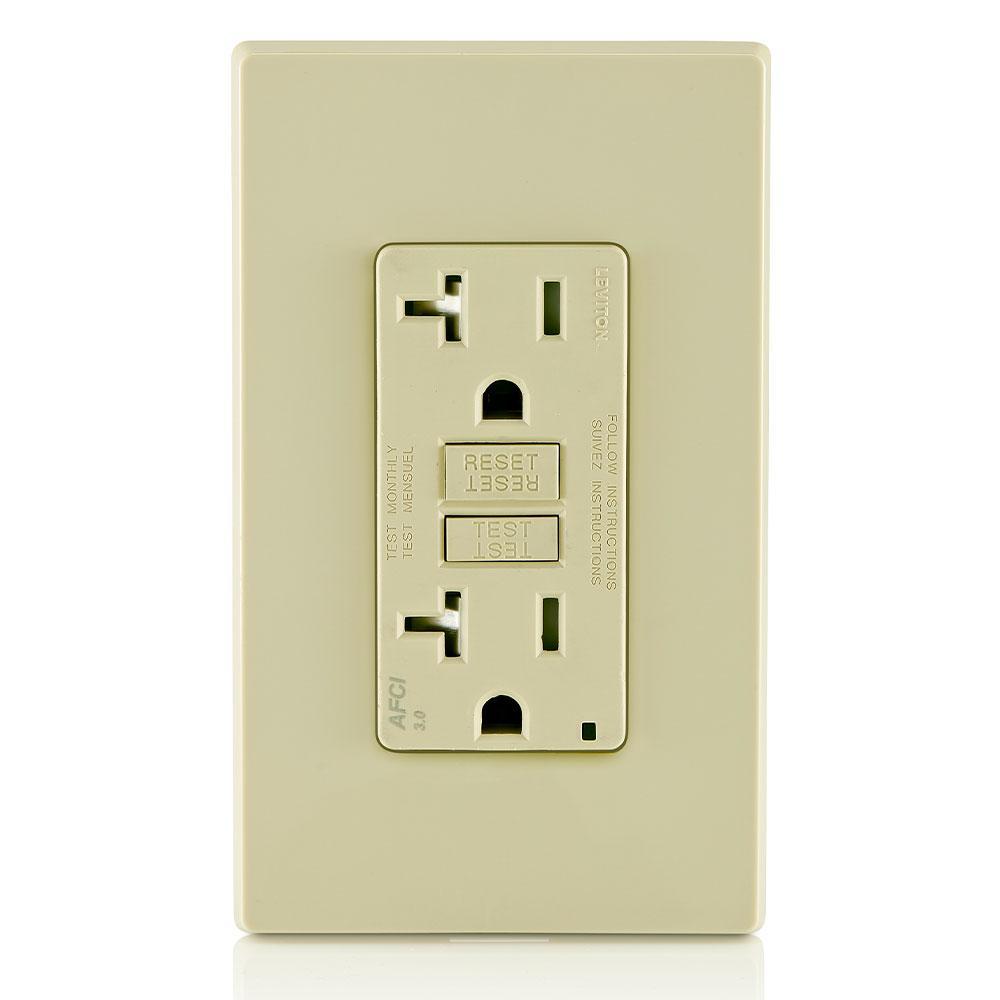

LEVITON 20-A IVORY ARCFAULT REC. NEMA 520R LEV AFTR-2-I
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the homes electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the homes electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code in many areas of the home.
-
BrandLeviton®
-
UPC078477574997
-
Manufacturer Part NumberAFTR2-I
-
CountryUSA
-
Temperature Rating-35 to 66 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolycarbonate
-
Frequency Rating60 Hz
-
ColorIvory
-
TypeDuplex
-
GradeCommercial/Residential
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions4.21 in H x 1.68 in W x 1.27 in D
-
Number of Wires3
- Device design reduces nuisance tripping, impact resistant thermoplastic cover and body
- Superior resistance to electrical surges and over voltages
- Compatible with all Decora® devices and wallplates
- Packed with coordinating wallplate
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29JA34 |
-
Alternative Part Number12002741
-
UNSPSC39121637
-
IDEA Index ID12002741
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 42/M-02A|NEMA WD6|ANSI C73|UL 498/1699A File No. E342815|NOM 057|Federal Specification WC596|UL94 V-2 Flammability Rating
-
Warranty2 Years Limited
-
Specification Sheet
-
Owners/User Manual
