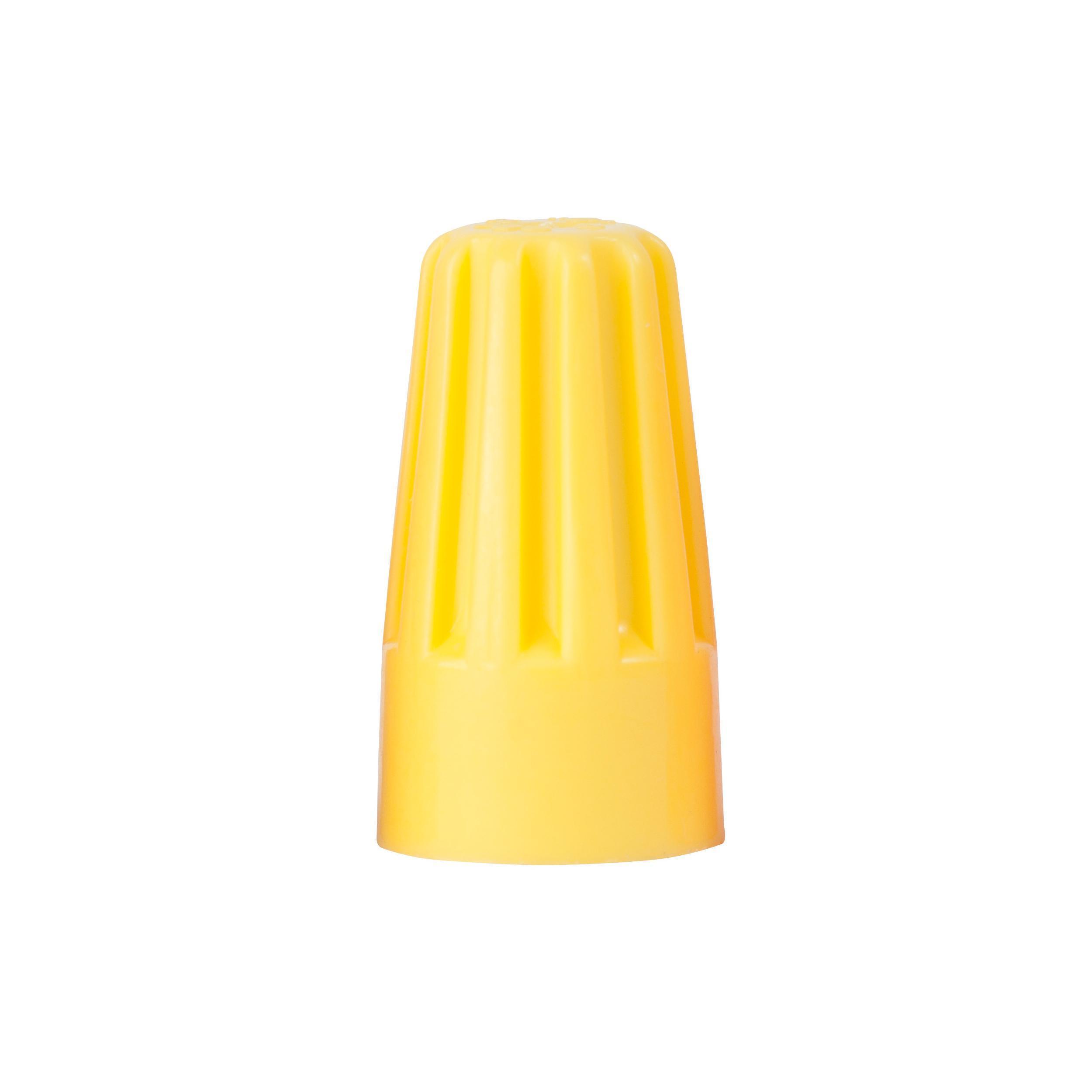

Gardner Bender 10-004 GB-4 Threaded Twist-On Wire Connector, Positive Grip Shell, Square Spring, 18 to 10 AWG Wire Aluminum/Copper Wire, Polypropylene Shell/Thermoplastic
WireGard twist-on wire connectors are designed for general purpose applications requiring the connection of 2 or more copper wires.
-
BrandGardner Bender
-
UPC032076100049
-
Manufacturer Part Number10-004
-
CountryUSA|Canada
-
Temperature Rating105 deg C
-
FinishZinc Plated
-
MaterialPolypropylene Shell/Thermoplastic
-
ColorYellow
-
TypeThreaded
-
Voltage Rating300/600 V AC
-
SeriesGB-4
-
Wire Size18 to 10 AWG
-
Wire TypeAluminum/Copper
-
Shell StylePositive Grip
-
Dimensions0.4375 in ID x 0.55 in OD x 0.94 in L
-
Specifications15/64 in Top Dia
-
Spring TypeSquare
- Industry standard twist-on connector with top quality, performance and durability
- Tight, square-wire spring makes quick, secure connections for positive continuity
- Performs in environments of extreme temperatures without failing to protect wire connection
- (1) 14 AWG, (1) 18 AWG - (3) 12 AWG wire combinations
- 100/Carton
- Designed to require fewer turns to reach required torque and meet or exceed UL pull out and dielectric test requirements
- Square wire zinc plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Tough, thermoplastic shell shields against environmental extremes
- Copper to copper connections only
- Connectors manufactured with high temperature rated plastic and inner spring with zinc plated, square profile steel wire
- Resists chemical action from hydrocarbons, diluted acid or alkaline solutions
- Color-coded for easy size selection
-
Alternative Part NumberGB-4
-
UNSPSC39121445
-
IncludesDriver Nut
-
Standards/ApprovalscULus File Number 61X5 Listed|RoHS Compliant|UL94V-2 Flammability Rating, UL 486C Listed
-
Warranty1 Year
-
