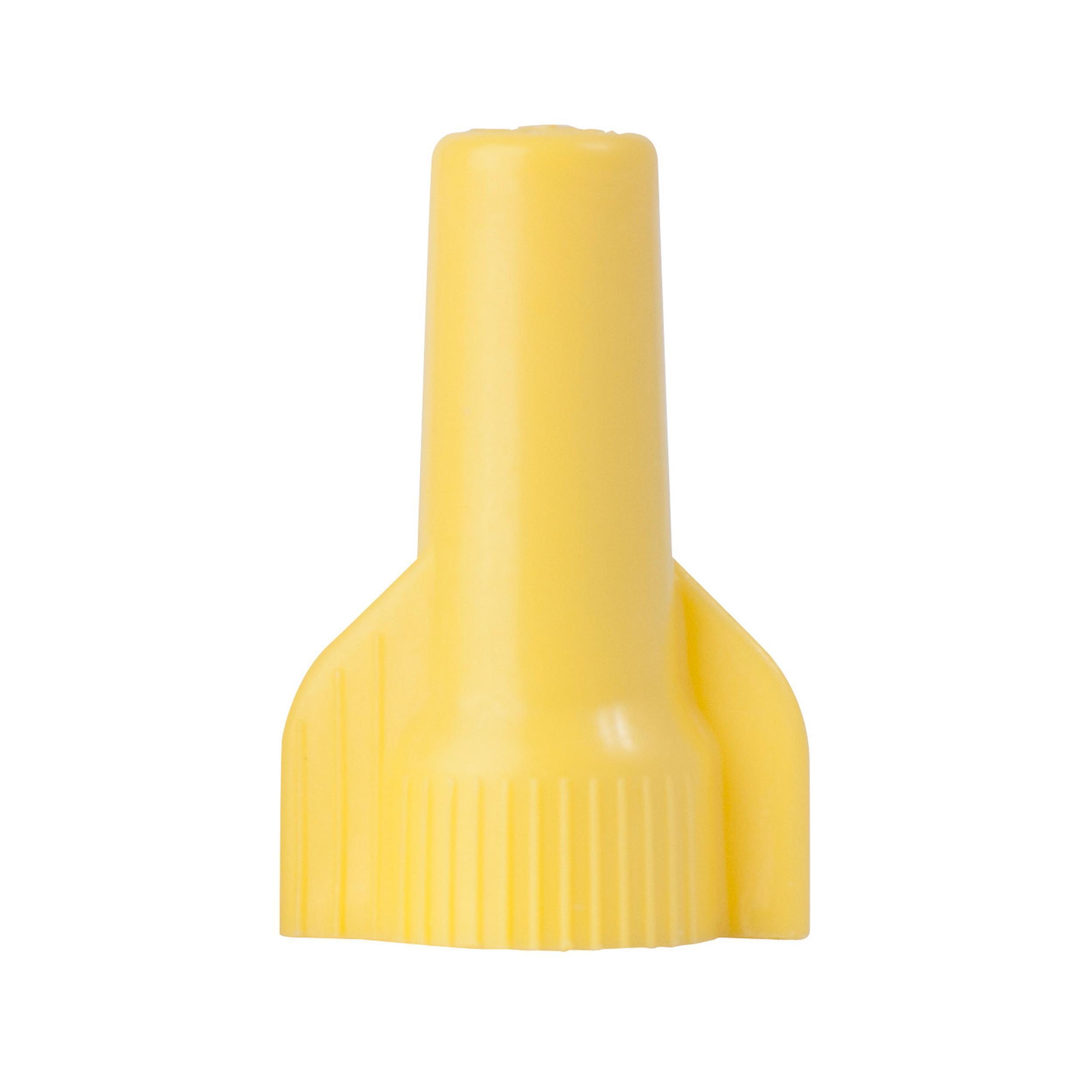

Gardner Bender 10-084 84 Series High Leverage Twist-On Wire Connector, Winged Shell, Square Spring, 22 to 10 AWG Wire Aluminum/Copper Wire, Thermoplastic Shell
GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that onesize can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.
-
BrandGardner Bender
-
UPC032076100841
-
Manufacturer Part Number10-084
-
CountryUSA|Canada
-
Temperature Rating105 deg C
-
FinishZinc Plated
-
MaterialThermoplastic Shell
-
ColorYellow
-
TypeHigh Leverage
-
Voltage Rating300/600 V AC
-
Series84 Series
-
Wire Size22 to 10 AWG
-
Wire TypeAluminum/Copper
-
Shell StyleWinged
-
Dimensions0.25 in ID x 0.72 in OD x 1.03 in L
-
Specifications7/32 in Top Dia
-
Spring TypeSquare
- Wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design
- 100/Box
- Wiring Connectors
- Wings are knurled for a sure grip and offset from centerline for greater twisting leverage
- Flame-retardant properties resist heat distortion up to 105 deg C/221 deg F
- High dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 600 V max in building wire and at 1000 V max in lighting, fixtures/luminaries and signs
- Copper to copper connections only
- Thermoplastic shell provides strength and resistance to chemicals and high temperature with zinc plated spring
- Square-wire plated spring instantly adjusts to the shape and size of the splice, secure connections for positive continuity
- (2) 22 AWG - (3) 12 AWG wire combinations
| Cross-Reference Number |
|---|
| 509515 |
-
UNSPSC39121445
-
Standards/ApprovalscULus Certified|RoHS Compliant|cULus Listed
-
Warranty1 Year
-
Specification Sheet
