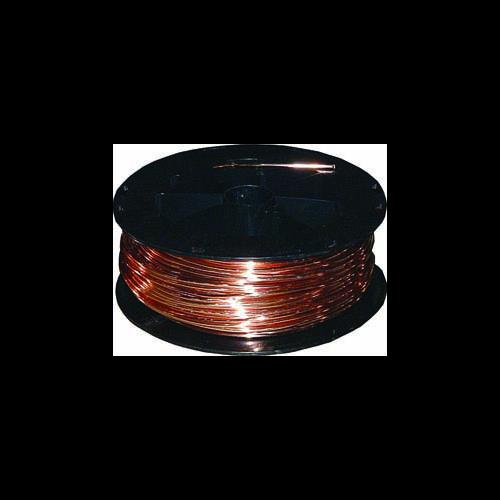

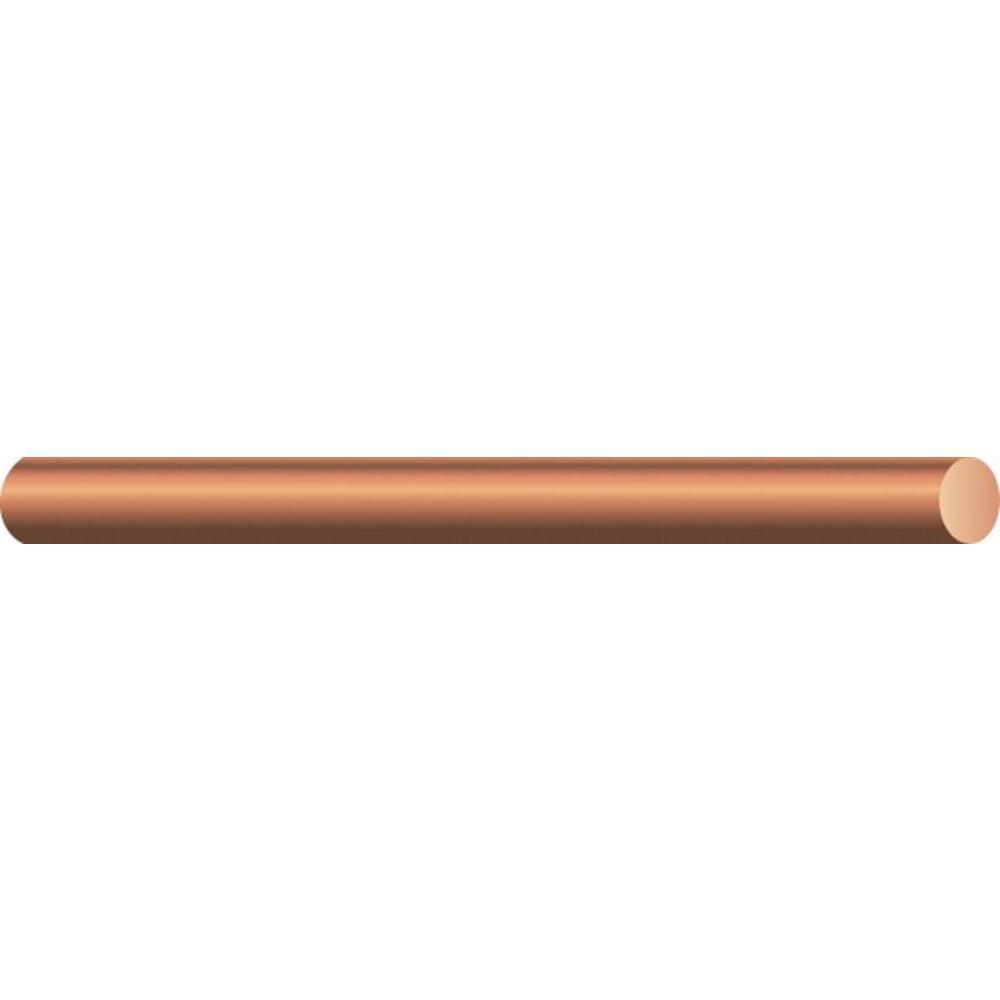

Southwire® 10644302 Bare Wire, 600 V AC, (1) Conductors 4 AWG Conductor Bare Solid Copper Conductor, 200 ft L
Southwire's Bare Copper is used for residential electrical systems before entering the home, usually at the meter base. It is also used as a residential grounding wire. Solid and stranded bare copper (Classes AA and A) are used for overhead transmission and distribution applications. Solid bare copper (Classes B and C) are used for non-insulated hook-ups, jumpers and electrical construction.
-
BrandSouthwire®
-
UPC032886334542
-
Manufacturer Part Number10644302
-
CountryUSA
-
Temperature Rating75 deg C
-
Resistance0.249 Ohm
-
Conductor Size4 AWG
-
Conductor TypeBare Solid Copper
-
Voltage Rating600 V AC
-
Amperage Rating170 A
-
Number of Conductors1
-
Strands1
-
Outside Diameter204.3 mil
-
Length200 ft
- Soft Drawn copper is unilay construction
- Available in tempers hard, medium-hard, or soft
- 41740 circular mil area
- 1213 lb rated strength
-
Alternative Part Number8879164
-
UNSPSC26121645
-
IDEA Index ID8879164
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant
-
Warranty1 Year
-
Specification Sheet
