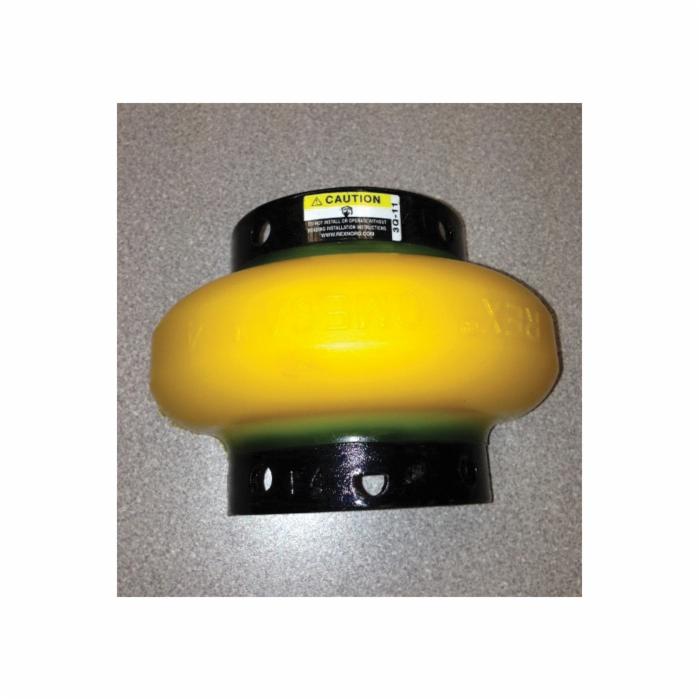

Rexnord OMEGA E-2 YELLOW COUPLING ELEMENT REX 7300005-HDY
Rexnord® Omega® 10287699 E Series Flexible Tire Coupling Element, E2 HDY Coupling, 3-1/2 in OD, 7500 rpm Max, Elastomeric
-
BrandRexnord®
-
UPC662864329583
-
Manufacturer Part Number10287699
-
CountryUSA|Canada
-
Temperature Rating-40 to 200 deg F
-
FinishYellow
-
MaterialElastomeric
-
Maximum Speed7500 rpm
-
Torque Rating190 in-lb
-
TypeFlexible
-
Coupling SizeE2 HDY
-
SeriesE Series
-
Outside Diameter3-1/2 in
-
Suitable For Use WithOmega® Close Coupled Elastomeric Coupling
- Heavy duty
- Torsionally soft flex element
- Radial bolting
- Polyurethane to metal bond

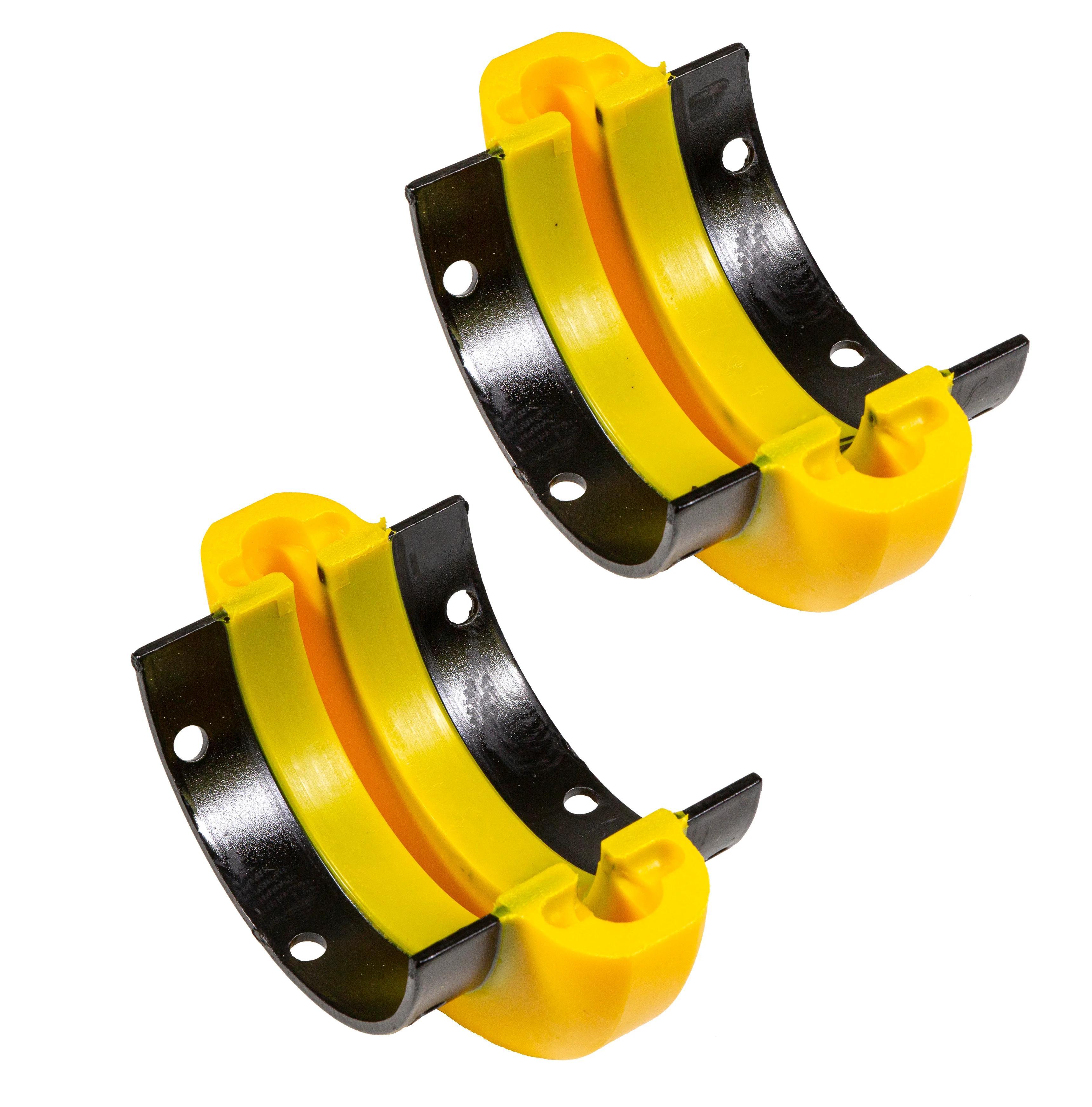

- Split-in-half flex element design for efficient installation and replacement
-
Alternative Part Number7300005HDY
-
UNSPSC31163000
-
Standards/ApprovalsATEX II 2GD C T5
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Specification Sheet
