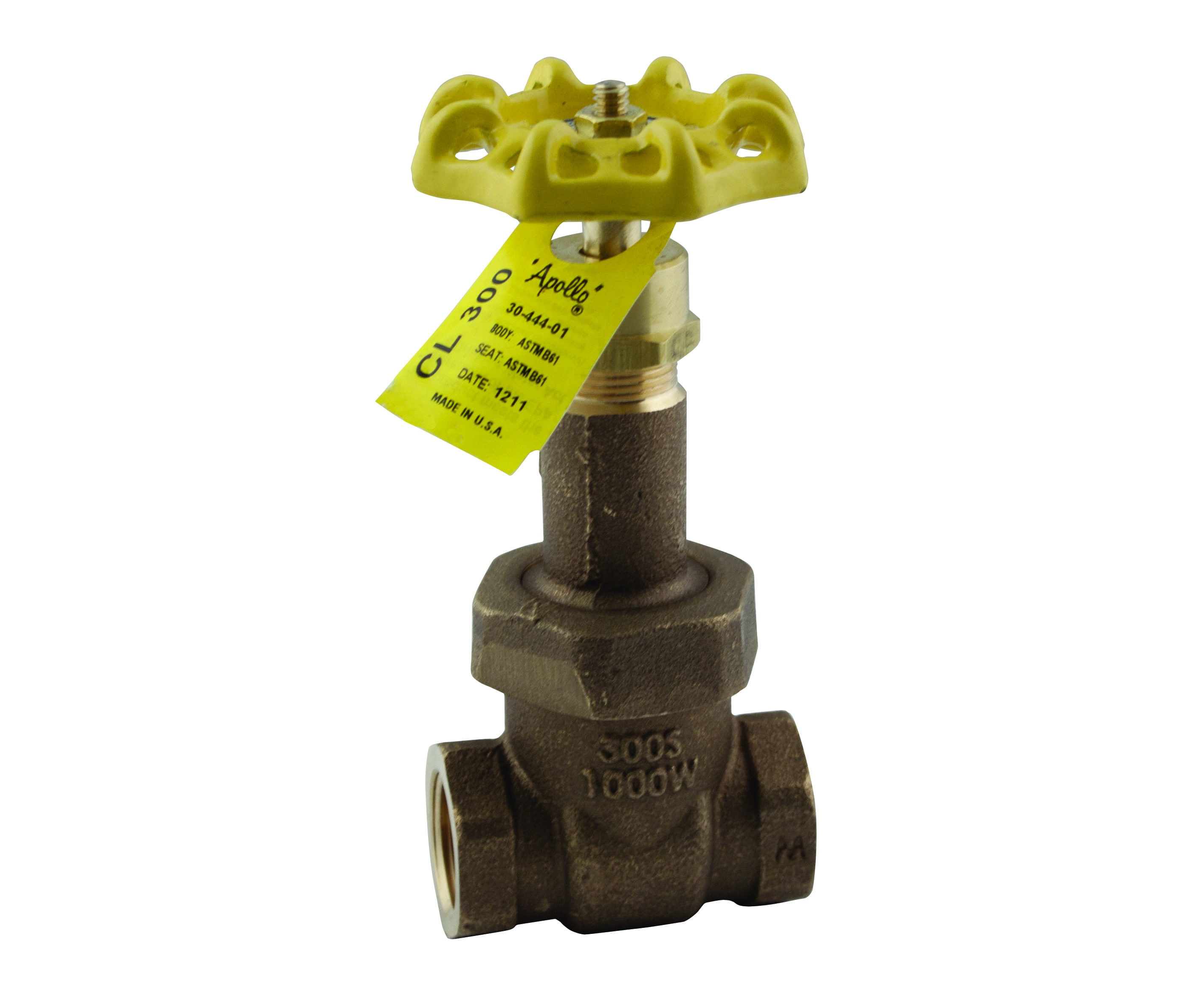

Apollo™ 3044501 111T Rising Stem Gate Valve, 1 in Nominal, NPT End Style, 300 lb, Bronze Body, Handwheel Actuator, Domestic
The Apollo™ Model 111T Bronze Gate Valve provides a cost effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for steam and liquid service and can reliably be installed in most plumbing and heating systems including building service piping and OEM applications.
-
BrandApollo™
-
UPC670750781698
-
Manufacturer Part Number3044501
-
CountryUSA
-
Temperature Rating-20 to 422 deg F
-
Pressure Class300 lb
-
Pressure Rating1000 psi CWP
-
Flow Rate72.3 gpm
-
Top to Inlet Center6.94 in Open
-
Trim MaterialBrass/Bronze
-
TypeRising Stem
-
Actuator TypeHandwheel
-
Nominal Size1 in
-
Series111T
-
Dimensions2.89 in L
-
Softgoods MaterialGrafoil
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleNPT
- Guided solid bronze disc wedge
- Adjustable graphite stem packing
- Union bonnet
- Dezincification resistant bronze construction
- Rugged malleable iron hand wheel
- Brass stem/bronze disc wedge
-
Alternative Part Number111T1
-
UNSPSC40141613
-
Package Description1/BX
-
Standards/ApprovalsARRA Compliant|ASME B1.20.1|ASTM B61 Body|ASTM B62 Disc Wedge|ASTM B21 UNS C46400 Stem|CRN 0C14667.5|MSS SP-80|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
