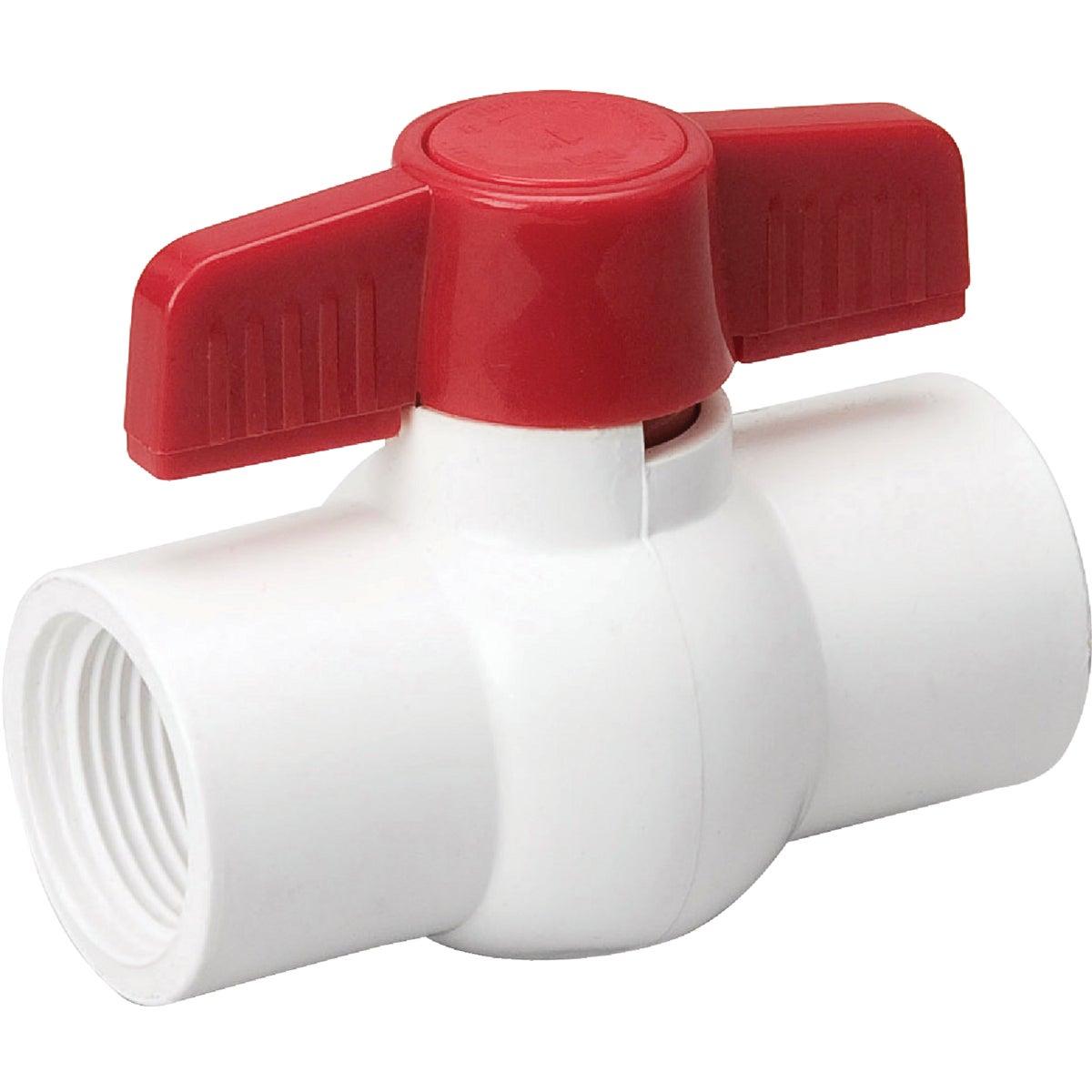

B&K® 107-138 ProLine™ Quarter-Turn Ball Valve, 2 in Nominal, FNPT End Style, PVC Body, NBR Softgoods
The BandK™ Valves are precisely engineered for outstanding service, long life and reliable performance. These valves offer easy operation, superior flow and include a wide range of water/oil/gas (WOG) valves, gas valves and water valves constructed from forged brass, CPVC and PVC materials. Valves are arranged in series reflecting the valves performance characteristics, connection types and handle style. BandK™ valves are created to meet UPC and ICC plumbing code requirements and are certified to meet NSF 61 with many available in Lead free compliant versions.
-
BrandB&K®
-
UPC032888071384
-
Manufacturer Part Number107-138
-
CountryUSA
-
Temperature Rating73 deg F
-
Pressure Rating150 psi
-
Trim MaterialTPV Seat
-
ColorWhite
-
Nominal Size2 in
-
SeriesProLine™
-
Softgoods MaterialNBR
-
Body MaterialPVC
-
End StyleFNPT
- SCH 40/STD specification
- Wetted surfaces contains less than 0.25% lead by weight
- NBR O-ring
| Cross-Reference Number |
|---|
| 459259 |
-
UNSPSC40141607
-
Package Description2/BX
-
Standards/ApprovalsThreaded Ends Comply with ANSI B1.20.1|NSF 61-G
-
