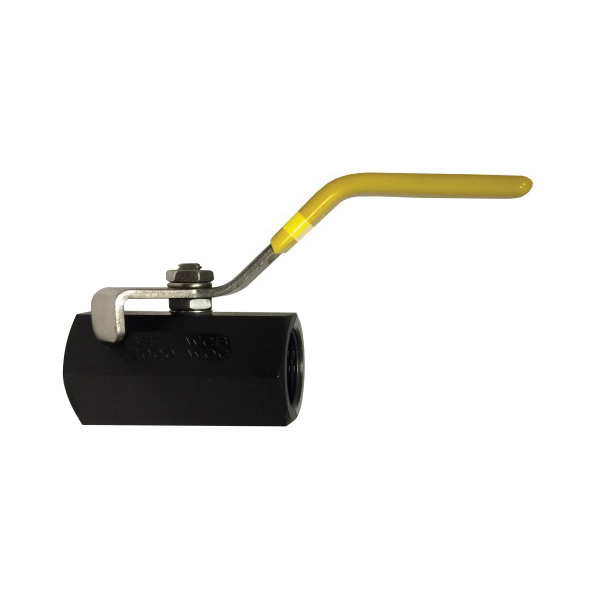

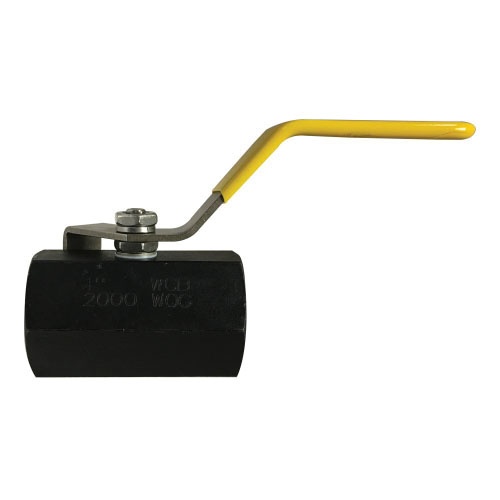

HCI Preferred Supplier 949124 Ball Valve, 3/4 in Nominal, Thread End Style, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, Standard Port, PTFE Thrust Washer Cap Seal/Packing Softgoods

0 Ratings
$36.80
In Stock
SKU: NIBT560CSR253/4
noimage_new

HCI Preferred Supplier 949124 Ball Valve, 3/4 in Nominal, Thread End Style, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, Standard Port, PTFE Thrust Washer Cap Seal/Packing Softgoods

In Stock
HCI of Jackson: 8
HCI of Dyersburg: 1
HCI of Humboldt: 3
HCI of Union City: 1
HCI of Gallatin: 1
My Wishlist
Compare
Main specs
  • Brand
    Generic
  • Manufacturer Part Number
    949124
  • Country
    USA
Specification
  • Temperature Rating
    -60 to 450 deg F
  • Port Type
    Standard
  • Pressure Rating
    2000 psi WOG
  • Media
    Gas, Oil and Water
  • Trim Material
    316 Stainless Steel Stem/PTFE Ball Seat/Vinyl Grip Handle Sleeve
  • Nominal Size
    3/4 in
  • Ball Material
    304 Stainless Steel
  • Dimensions
    2.72 in H x 2.58 in W
  • Softgoods Material
    PTFE Thrust Washer Cap Seal/Packing
  • Domestic/Import
    Import
  • Body Material
    ASTM-A108 CL 1018/AISI 1021 Carbon Steel
  • End Style
    Thread
Features
  • Blow-out proof stem
  • 100% air tested under water, at 100 psi, open and closed positions
  • Generic handles
  • 1-piece ball valve reducing bore
  • 304 stainless steel gland nut/washer/stem nut/handle nut/washer/gland
  • PTFE thrust washer cap seal and packing
Additional Information
  • UNSPSC
    40141607
  • Package Description
    50/BX
