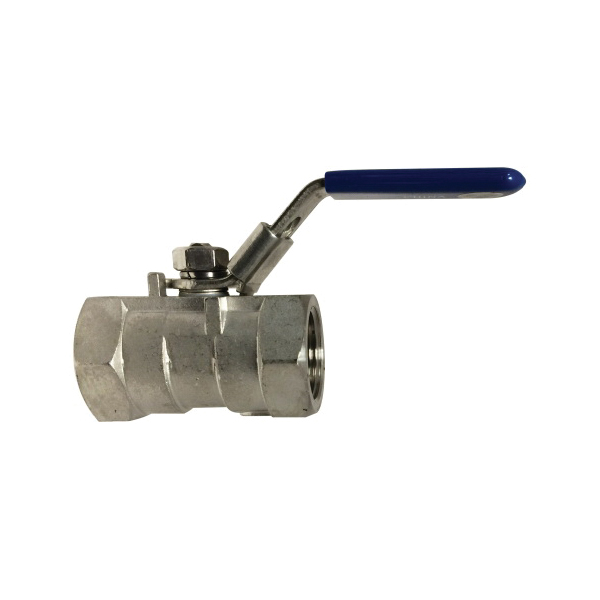

HCI Preferred Supplier 949104 1-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, ASTM-A351 CF8M 316 Stainless Steel Body, Standard Port, PTFE Thrust Washer Stem Packing Softgoods
HCI Preferred Supplier 949104 1-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, ASTM-A351 CF8M 316 Stainless Steel Body, Standard Port, PTFE Thrust Washer Stem Packing Softgoods
-
BrandGeneric
-
Manufacturer Part Number949104
-
CountryUSA
-
Port TypeStandard
-
Pressure Rating1000 psi WOG
-
MediaGas, Oil and Water
-
Trim MaterialAISI 316 Stainless Steel Stem/PTFE Ball Seat/PVC Sleeve
-
Type1-Piece
-
Nominal Size3/4 in
-
Ball Material316 Stainless Steel
-
Dimensions2.32 in H x 2.95 in W
-
Softgoods MaterialPTFE Thrust Washer Stem Packing
-
Domestic/ImportImport
-
Body MaterialASTM-A351 CF8M 316 Stainless Steel
-
End StyleFNPT
- Manufactured for harsh environments with female NPT threads
- Locking handle for greater security
- Standard port has restricted flow
- Made with corrosion resistant stainless steel materials
- Investment castings for body and cap
- Internal entry blow-out proof stem
- Valves will accept a pad-lock on the handle
- AISI 304 stainless steel stem nut/handle/packing ring, ASTM-A351 CF8M 316 stainless steel cap
- PTFE thrust washer stem packing
-
UNSPSC40141607
-
Package Description70/CS
-
Standards/ApprovalsANSI B2.1/API 598
-
Catalog
-
Full Engineering Drawing
