HCI Preferred Supplier 949121 Ball Valve, 1/4 in Nominal, Thread End Style, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, Standard Port, PTFE Thrust Washer Cap Seal/Packing Softgoods
HCI Preferred Supplier 949121 Ball Valve, 1/4 in Nominal, Thread End Style, ASTM-A108 CL 1018/AISI 1021 Carbon Steel Body, Standard Port, PTFE Thrust Washer Cap Seal/Packing Softgoods
-
BrandGeneric
-
Manufacturer Part Number949121
-
CountryUSA
-
Temperature Rating-60 to 450 deg F
-
Port TypeStandard
-
Pressure Rating2000 psi WOG
-
MediaGas, Oil and Water
-
Trim Material316 Stainless Steel Stem/PTFE Ball Seat/Vinyl Grip Handle Sleeve
-
Nominal Size1/4 in
-
Ball Material304 Stainless Steel
-
Dimensions1.14 in H x 1.71 in W
-
Softgoods MaterialPTFE Thrust Washer Cap Seal/Packing
-
Domestic/ImportImport
-
Body MaterialASTM-A108 CL 1018/AISI 1021 Carbon Steel
-
End StyleThread
- Blow-out proof stem
- 100% air tested under water, at 100 psi, open and closed positions

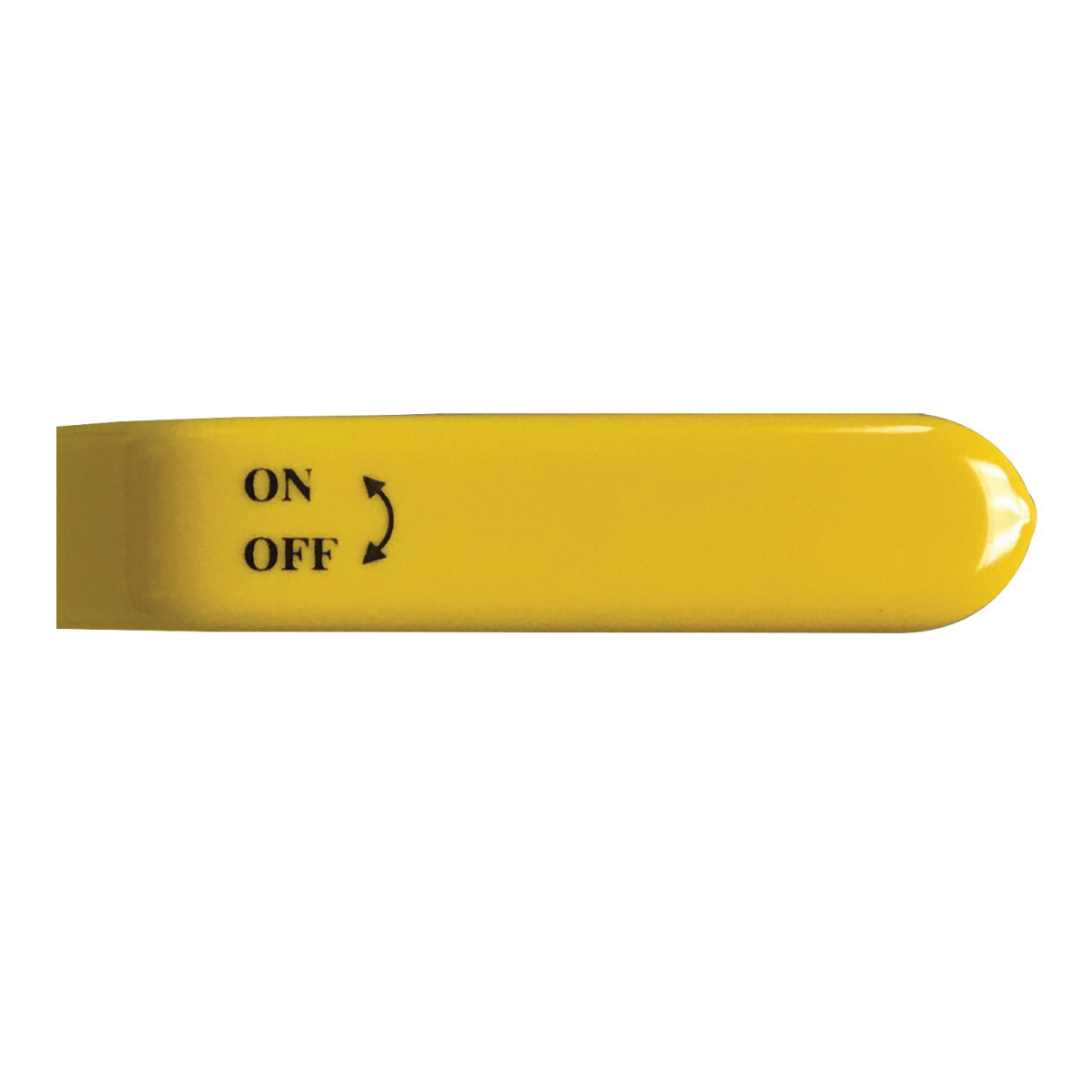

- Generic handles
- 1-piece ball valve reducing bore
- 304 stainless steel gland nut/washer/stem nut/handle nut/washer/gland
- PTFE thrust washer cap seal and packing
-
UNSPSC40141607
-
Package Description24/BX
-
