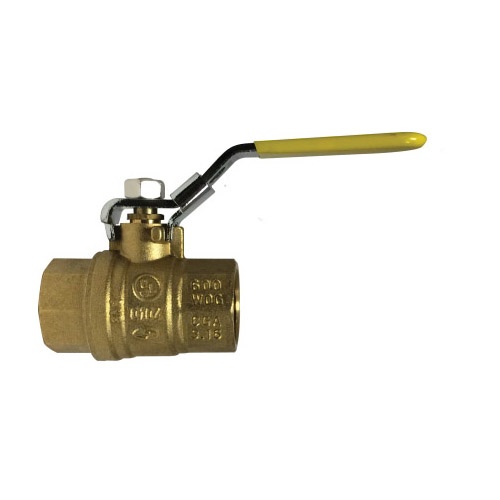

HCI Preferred Supplier 940173 Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, PTFE Stem Seal Softgoods
HCI Preferred Supplier 940173 Ball Valve, 1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, PTFE Stem Seal Softgoods
-
BrandGeneric
-
Manufacturer Part Number940173
-
CountryUSA
-
Temperature Rating-22 to 302 deg F
-
Port TypeFull
-
Pressure Rating600 psi WOG, 150 psi WSP
-
MediaCold Water, Oil, Gas and Saturated Steam
-
Trim MaterialBrass Stem/PTFE Ball Seat
-
Nominal Size1/2 in
-
Ball MaterialPolished Chrome Brass
-
Dimensions1.92 in H x 2.05 in W
-
Softgoods MaterialPTFE Stem Seal
-
Domestic/ImportImport
-
Body MaterialForged Brass
-
End StyleFNPT
- Deeper threads for better connections
- Suitable for full range of liquids and Gases
- Fast 1/4 turn open or close operation
- Yellow vinyl insulator on heavy duty plated carbon steel handles
- Low operating torque and adjustable stem packing gland
- Forged brass for more strength
- Hard chromium plated solid ball
- Minimal pressure drop due to large full size ports
- Bottom loaded, pressure retaining stem
- Bottom entry, blow-out proof stem
- Forged brass end connection, brass gland, steel spring inseat, steel handle/nut
- PTFE stem and seal
-
UNSPSC40141607
-
Package Description50/BX
-
Standards/ApprovalsANSI B1.20.1|cCSAus Certified|FM Approved|UL842|UL258|UL125
-
