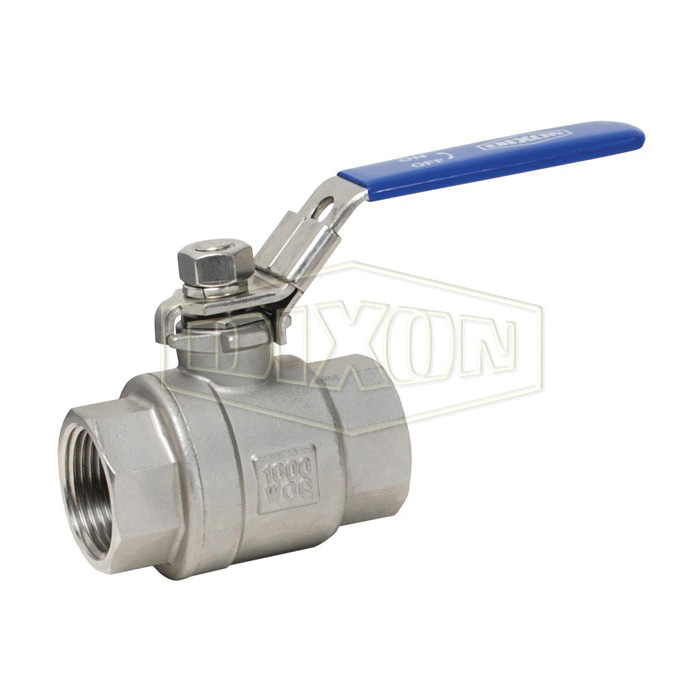

HCI Preferred Supplier 949163 2-Piece Ball Valve, 1/2 in Nominal, ASTM-A351 CF8M 316 Stainless Steel Body, Full Port, RPTFE Seal/Thrust Washer/Plastic Cover Softgoods
HCI Preferred Supplier 949163 2-Piece Ball Valve, 1/2 in Nominal, ASTM-A351 CF8M 316 Stainless Steel Body, Full Port, RPTFE Seal/Thrust Washer/Plastic Cover Softgoods
-
BrandGeneric
-
Manufacturer Part Number949163
-
CountryUSA
-
Temperature Rating-60 to 450 deg F
-
Port TypeFull
-
Pressure Rating1000 psi WOG, 125 psi WSP
-
Trim MaterialAISI 316 Stainless Steel Stem/Reinforced PTFE Seat
-
Nominal Size1/2 in
-
Softgoods MaterialRPTFE Seal/Thrust Washer/Plastic Cover
-
Body MaterialASTM-A351 CF8M 316 Stainless Steel
-
End StyleFNPT
-
MediaCold Water, Oil, Gas and Saturated Steam
-
Type2-Piece
-
Ball MaterialASTM A351 CF8M 316 Stainless Steel
-
Dimensions2.01 in H x 2.48 in W
-
Domestic/ImportImport
- Quality manufactured for harsh environments
- Investment casting body
- Adjustable stem packing
- Blow-out proof stem and safe pressure-reducing hole
- Locking handle with blue generic sleeve
- Corrosion-resistant
- 100% leakage tested at 100 psi air under water
- Generic handles
- 1500 psi hydrostatic test pressure
- ASTM-A351 CF8M 316 stainless steel body cap, AISI 304 stainless steel nut, gland nut, washer and handle
- RPTFE seal, thrust washer and plastic cover
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 58DC09 |
-
UNSPSC40141607
-
Package Description70/CS
-
WarrantyLimited
-
