NIBCO 76-102-01 2-Piece Standard Configuration Ball Valve, 3/8 in Nominal, FNPT End Style, 250 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

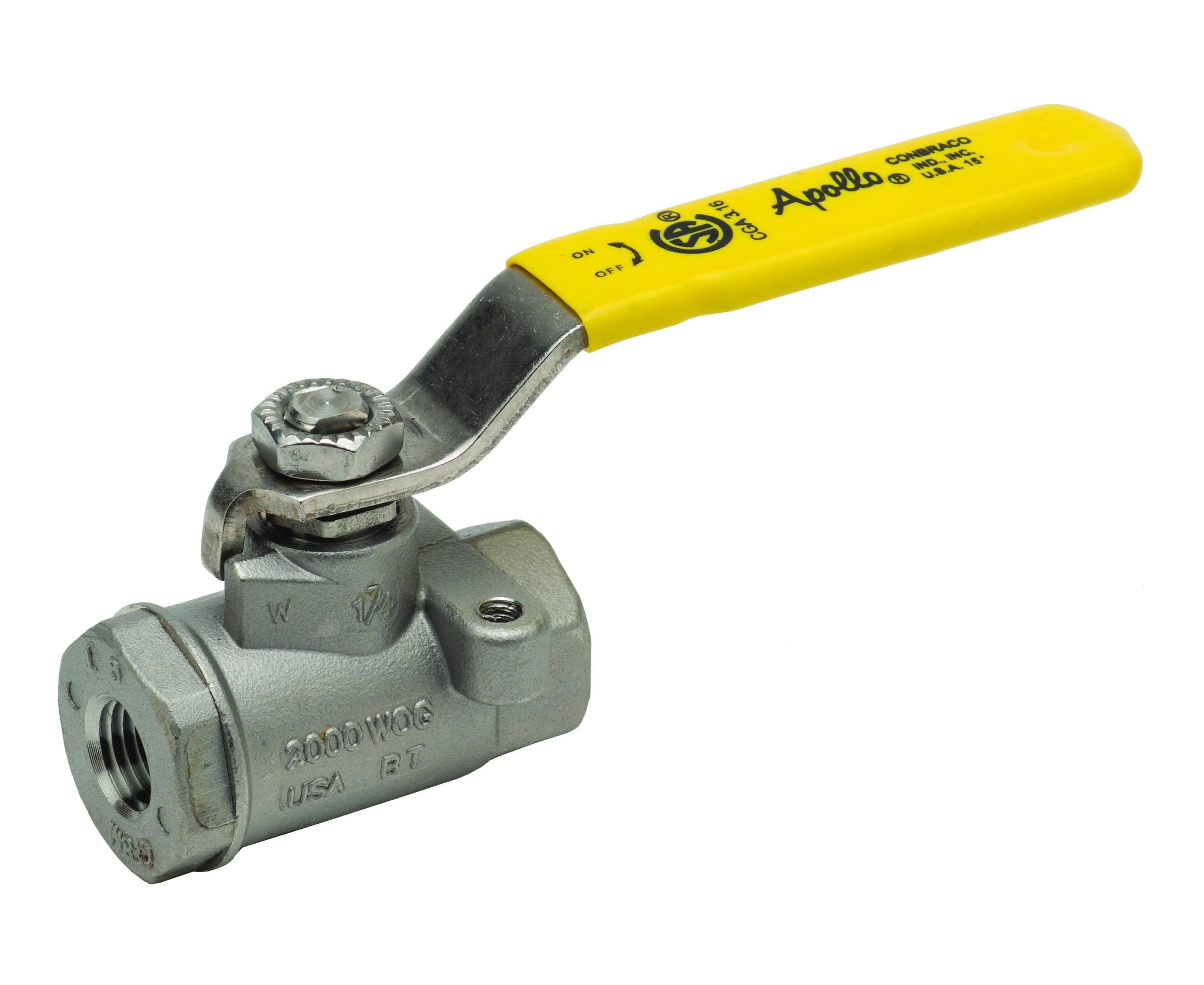

Apollo™ 7610201A 76-100 2-Piece Standard Configuration Ball Valve, 3/8 in Nominal, FNPT End Style, 250 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750210167
-
Manufacturer Part Number7610201A
-
CountryUSA
-
Port TypeStandard
-
Pressure Class250 lb
-
Pressure Rating150 psi
-
Top to Inlet Center1.71 in
-
Trim Material316 Stainless Steel/RPTFE
-
Type2-Piece
-
Nominal Size3/8 in
-
Series76-100
-
Ball Material316 Stainless Steel
-
Inlet to Outlet Length2.05 in
-
Softgoods MaterialMPTFE/PTFE
-
Domestic/ImportDomestic
-
Body MaterialStainless Steel
-
End StyleFNPT
- Investment cast components
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Vacuum service to 29 in Hg
- 2000 psig CWP
- 304 stainless steel with vinyl grip handle
- A276-316 stainless steel gland nut/stem
- 18-8 stainless steel lever nut
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | A7610201A |
-
UNSPSC40141607
-
Standards/ApprovalsASTM A351 CF8M Body|ASTM A276 316 Ball/Stem|MSS SP-110|MR0103 (2012)|NSF/ANSI 61-8|Annex G|NACE MR0175 (2000) and NSF 372|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Specification Sheet
-
Owners/User Manual
