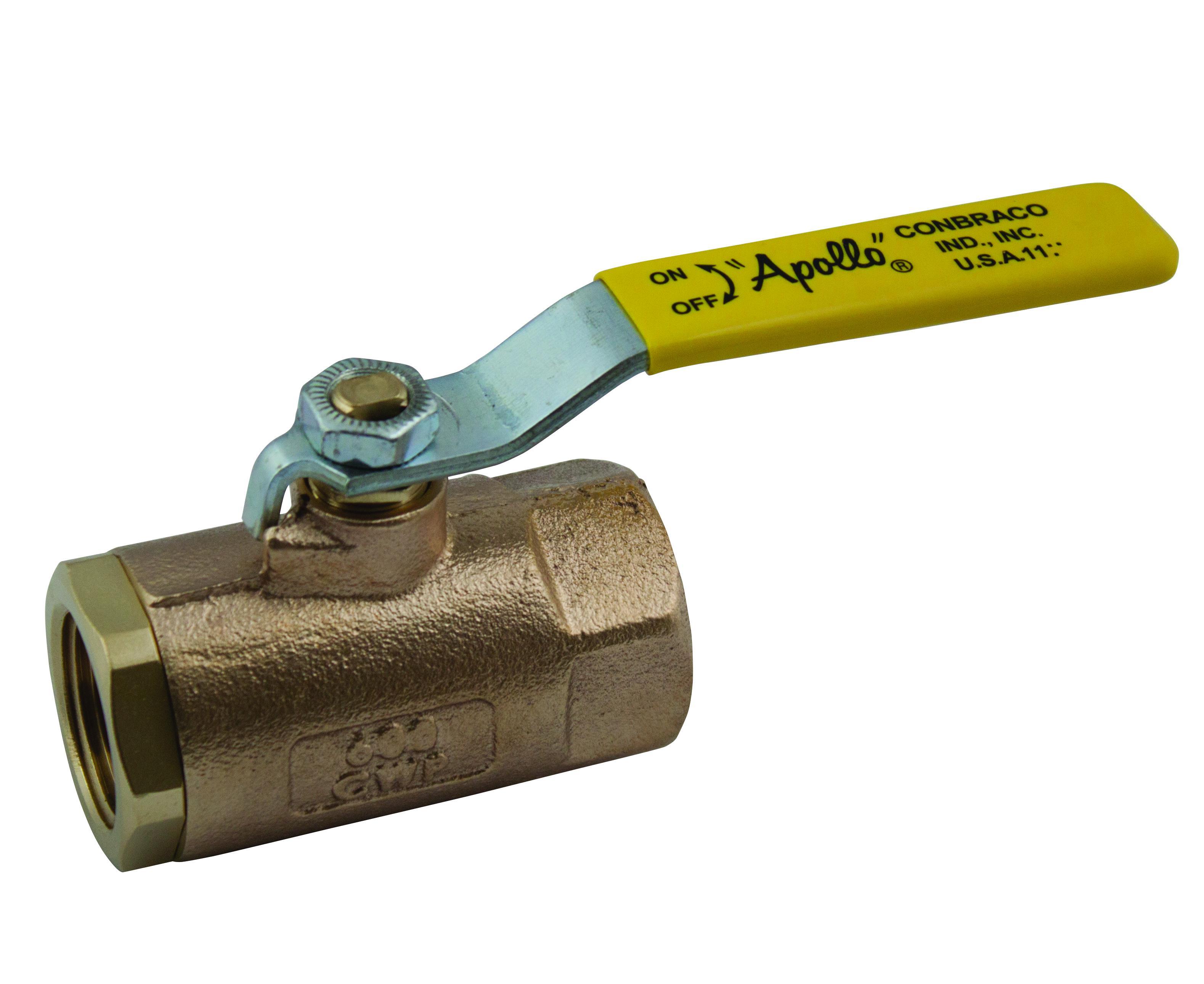

NIBCO 70-104-27 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
The Apollo™ 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo™'s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.
-
BrandApollo™
-
UPC670750652356
-
Manufacturer Part Number7010427
-
CountryUSA
-
Temperature Rating500 deg F
-
Port TypeStandard
-
Pressure Rating600 psi CWP
-
Top to Inlet Center2.12 in
-
MediaWater
-
Trim MaterialBrass Stem/PTFE Seat
-
Type2-Piece
-
Actuator TypeLever Handle
-
Nominal Size3/4 in
-
Series70-100
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length3 in
-
Softgoods MaterialMPTFE/RPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleFNPT
- Premium materials and heavy duty construction
- Adjustable stem packing gland
- Blow-out proof stem
- 100% factory tested
- Vacuum service to 29 in Hg
- Zinc plated with vinyl steel lever and grip
- Zinc plated steel lever nut
- UNS C84400 B584 body
- Stainless steel latch-lock lever and nut
- 150 psi steam working pressure
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 2EEJ4 |
| Ferguson | A7010427 |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsARRA Compliant|MSS-SP-110|CSA B51 CRN OC10908.5C|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
