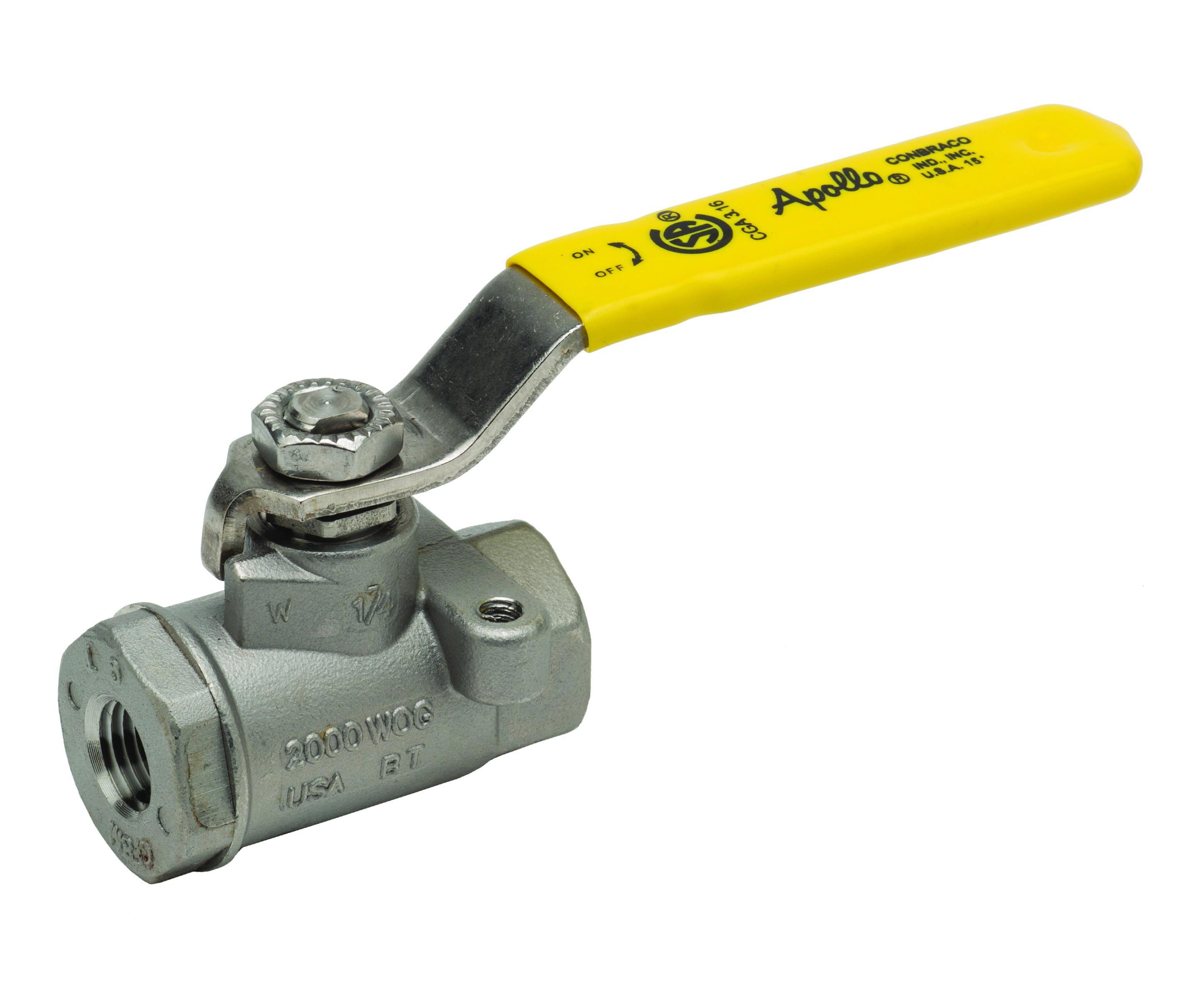

NIBCO 76-108-01 2-Piece Standard Configuration Ball Valve, 2 in Nominal, FNPT End Style, 250 lb, Standard Port, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 7610801 76-100 2-Piece Standard Configuration Ball Valve, 2 in Nominal, FNPT End Style, 250 lb, Standard Port, MPTFE/RPTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750699153
-
Manufacturer Part Number7610801
-
CountryUSA
-
Port TypeStandard
-
Pressure Class250 lb
-
Pressure Rating1500 psi CWP
-
Top to Inlet Center2.69 in
-
MediaGas/Water
-
Trim MaterialRPTFE/Stainless Steel
-
Type2-Piece
-
Actuator TypeLever Handle
-
Nominal Size2 in
-
Series76-100
-
Ball Material316 Stainless Steel
-
Inlet to Outlet Length3.24 in
-
Softgoods MaterialMPTFE/RPTFE
-
Domestic/ImportDomestic
-
Body MaterialStainless Steel
-
Orifice Size1-1/2 in
-
End StyleFNPT
- Investment cast components
- Reinforced seat
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Stainless steel lever and nut
- 304 stainless steel lever with vinyl grip
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A7610801 |
-
UNSPSC40141607
-
Package Description2/BX
-
Standards/ApprovalsASTM A351 CF8M Valve Body|ASTM A276 316 Ball/Stem|NSF/ANSI 61-8|Annex G|NSF 372|Drinking Water System Components Lead Content|NACE MR0175 (2000)/MR0103 (2012)|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
