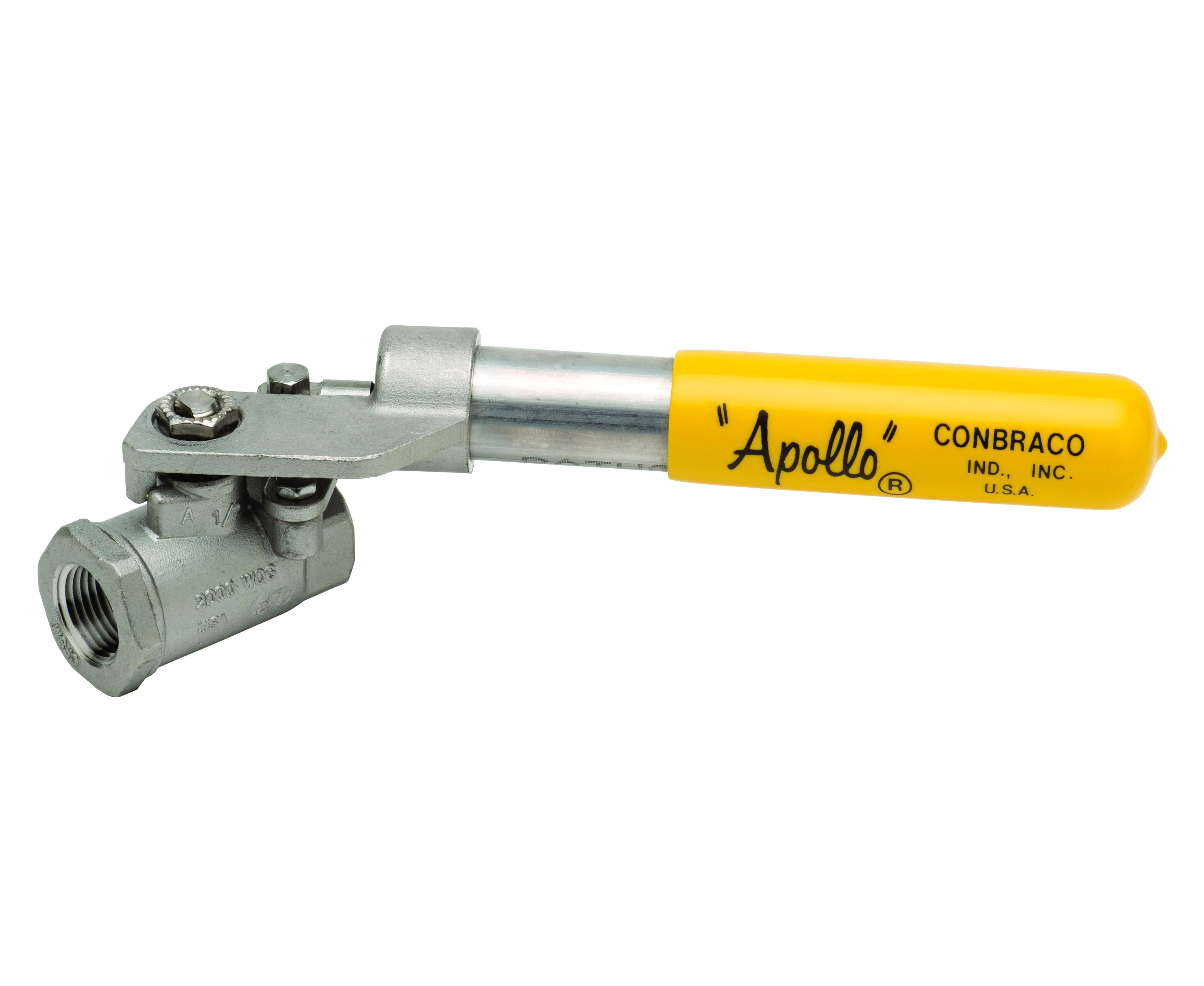

Apollo™ 7650501A 76-500 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic
Apollo™ 7650501A 76-500 2-Piece Standard Configuration Ball Valve, 1 in Nominal, FNPT End Style, Standard Port, MPTFE/PTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750172342
-
Manufacturer Part Number7650501A
-
CountryUSA
-
Port TypeStandard
-
Pressure Rating2000 psi CWP
-
Trim Material316 Stainless Steel/PTFE
-
Type2-Piece
-
Actuator TypeSpring Return Handle
-
Nominal Size1 in
-
Series76-500
-
Ball MaterialStainless Steel
-
Inlet to Outlet Length3.37 in
-
Softgoods MaterialMPTFE/PTFE
-
Domestic/ImportDomestic
-
Body MaterialStainless Steel
-
End StyleFNPT
- Carbon and graphite reinforced seats (MPTFE)
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Blow-out proof stem design
- Investment cast components
- Vacuum service to 29 in Hg
- 150 psig saturated steam
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | A7650501A |
| Grainger | 3EEZ7 |
-
UNSPSC40141607
-
IncludesAdjustable Packing Gland
-
Package Description5/BX
-
Standards/ApprovalsASTM A276 316 Ball/Stem/Retainer/Gland Nut|ASTM A351 CF8M Body|MSS SP-110|NACE MR0175/MR0103|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-

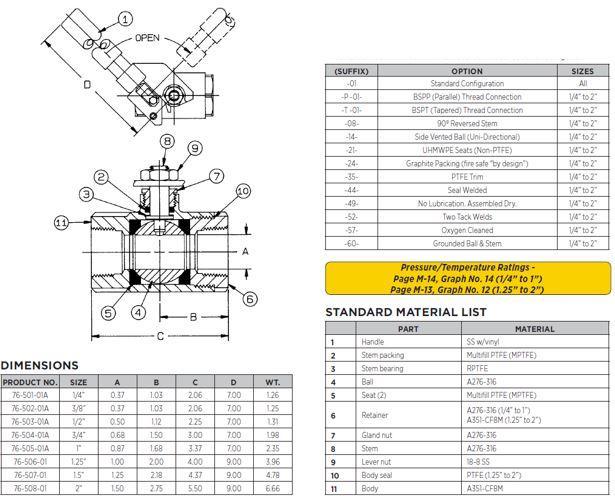

Specification Sheet
