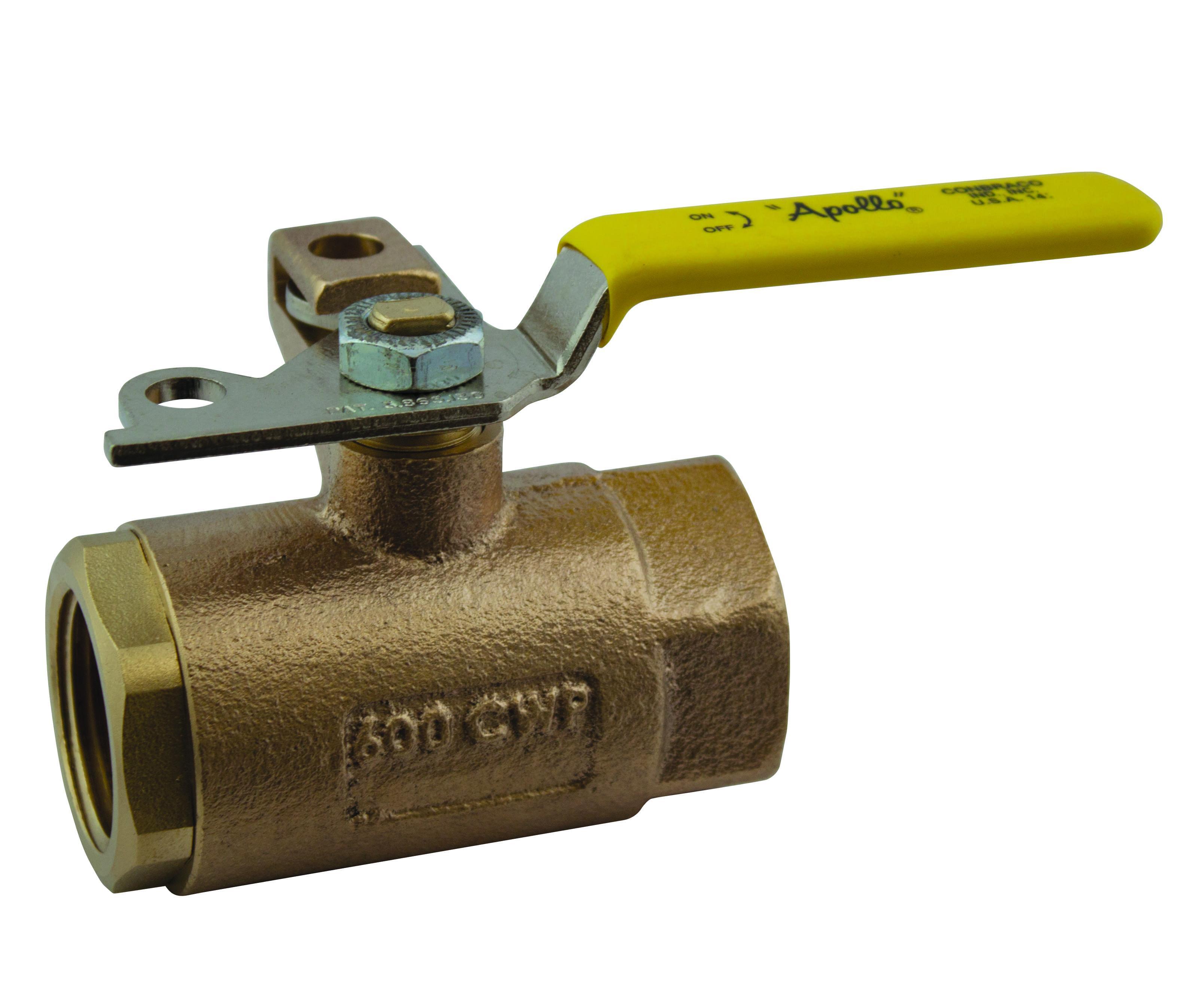

Apollo™ 7510501 75-100 2-Piece Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic
This Apollo™ ball valve meets OSHA standards and provides for easy, safe maintenance of pneumatic tools. Valve can be padlocked in the open or closed position with the same hardware.
-
BrandApollo™
-
UPC670750691416
-
Manufacturer Part Number7510501
-
CountryUSA
-
Temperature Rating50 to 200 deg F
-
Port TypeStandard
-
Pressure Rating600 psi CWP
-
Top to Inlet Center2-1/4 in
-
MediaGas/Water
-
Trim MaterialBrass Stem/RPTFE Seat
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size1 in
-
Series75-100
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length3.37 in
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
Orifice Size0.87 in
-
End StyleFNPT
- Reinforced seats
- Blow-out proof stem
- May be padlocked in open or closed position with no change of hardware
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock
- Hardened ball for wear resistance
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6FXZ2 |
| Ferguson | A7510501 |
-
UNSPSC40141607
-
IncludesAdjustable Packing Gland
-
Package Description10/BX
-
Standards/ApprovalsASTM B584-C84400 Body|ASTM B16 Ball/Stem|CRN OC10908.5C|MSS SP-110|NACE MR0175/MR0103|NSF/ANSI 61|NSF 372|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-

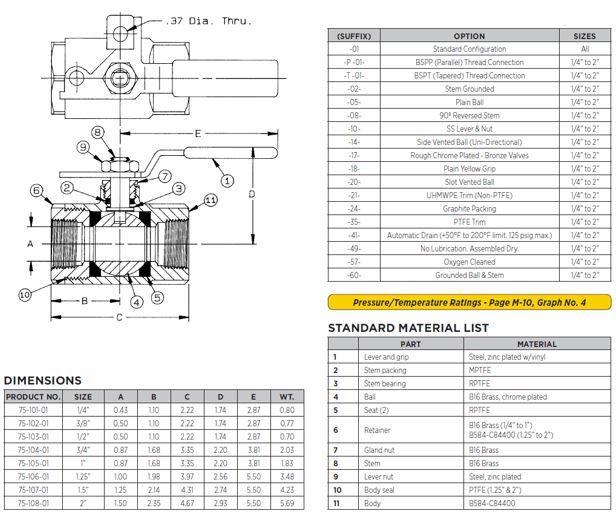

Specification Sheet
-
Owners/User Manual
