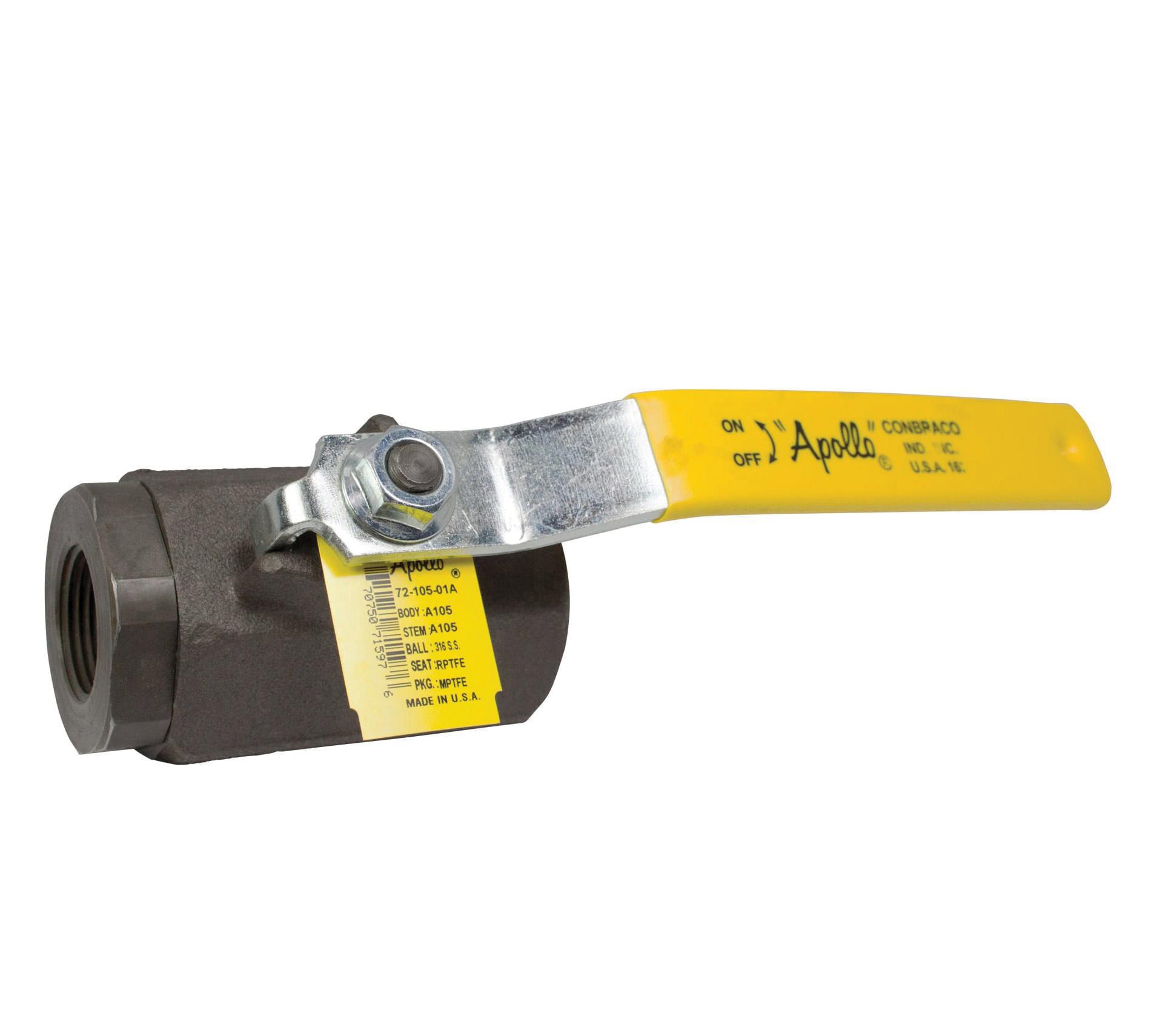

NIBCO 72-103-27-A 2-Piece High Pressure Ball Valve, 1/2 in Nominal, FNPT End Style, Full Port, MPTFE/RPTFE Softgoods, Domestic
Apollo™ 7210327A 72-100-A 2-Piece High Pressure Ball Valve, 1/2 in Nominal, FNPT End Style, Full Port, MPTFE/RPTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750737374
-
Manufacturer Part Number7210327A
-
CountryUSA
-
Port TypeFull
-
Pressure Rating3000 psi CWP
-
Top to Inlet Center2.09 in
-
Trim MaterialCarbon Steel/RPTFE
-
Type2-Piece High Pressure
-
Actuator TypeLatch-Lock Lever
-
Nominal Size1/2 in
-
Series72-100-A
-
Ball MaterialChrome Plated Carbon Steel
-
Inlet to Outlet Length2.78 in
-
Softgoods MaterialMPTFE/RPTFE
-
Domestic/ImportDomestic
-
Body MaterialCarbon Steel
-
End StyleFNPT
- Forged body design
- Fire safe by design
- Zinc phosphate corrosion protection
- Adjustable packing gland
- Cold non-shock body rating
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- RPTFE seat and carbon steel stem
- RPTFE retainer seal and MPTFE stem packing
- Stainless steel latch lock lever and nut
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A7210327A |
-
UNSPSC40141607
-
Package Description6/BX
-
Standards/ApprovalsASTM A08/A105|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
