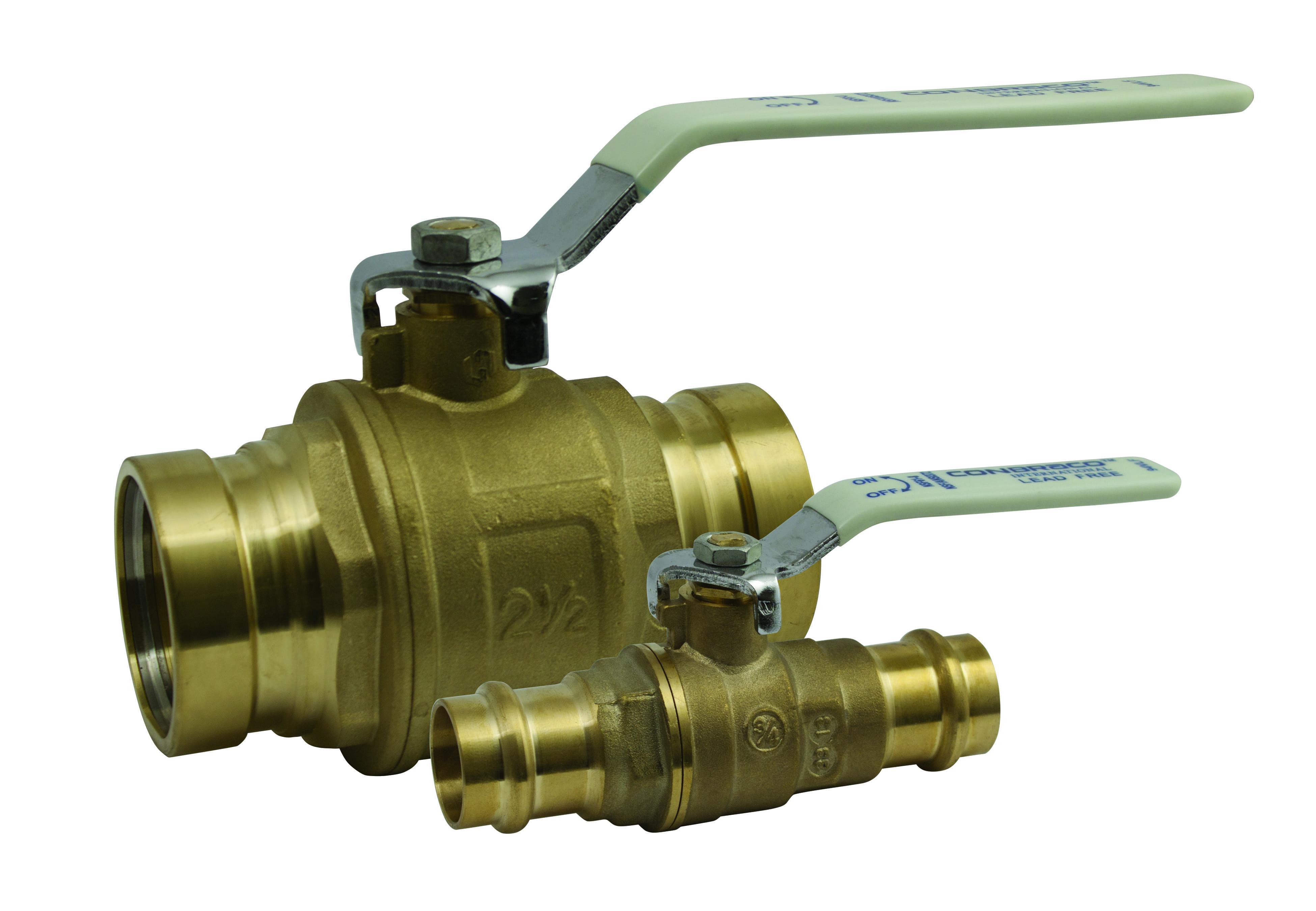

Apollo™ 94VLF10601A 94VLF-A 2-Piece Ball Valve, 1-1/4 in Nominal, Press End Style, Brass Body, Full Port, EPDM/PTFE Softgoods, Import
The Conbraco International™ 94VLF-A Series Lead Free Two-Piece Press Ball Valve is ideal for installation in most plumbing and heating systems, including potable water.
-
BrandApollo™
-
UPC670750747908
-
Manufacturer Part Number94VLF10601A
-
CountryUSA
-
Temperature Rating0 to 250 deg F
-
Port TypeFull
-
Pressure Rating250 psi
-
Top to Inlet Center2.73 in
-
MediaWater
-
Trim MaterialPTFE/Brass
-
Type2-Piece
-
Actuator TypeHandle
-
Nominal Size1-1/4 in
-
Series94VLF-A
-
Ball MaterialStainless Steel
-
Inlet to Outlet Length4.59 in
-
Softgoods MaterialEPDM/PTFE
-
Domestic/ImportImport
-
Body MaterialBrass
-
End StylePress
- Adjustable stem packing
- Leak before Press feature
- Corrosion resistant materials
- 100% factory tested
- Ridgid XL press tool compatible
- Steel plated insulated polyvinyl handle
- PTFE seat/brass stem
- EPDM O-ring seal/PTFE stem packing
- The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A94VLF10601A |
-
UNSPSC40141607
-
Package Description5/BX
-
Standards/ApprovalsIAPMO/ANSI Z1157|Federal Public Law 111-380|MSS SP-110|NSF/ANSI 61/372|PROP65: Cancer and Reproductive Harm
-
Warranty2 Years
-
Warranty Information
-
Specification Sheet
