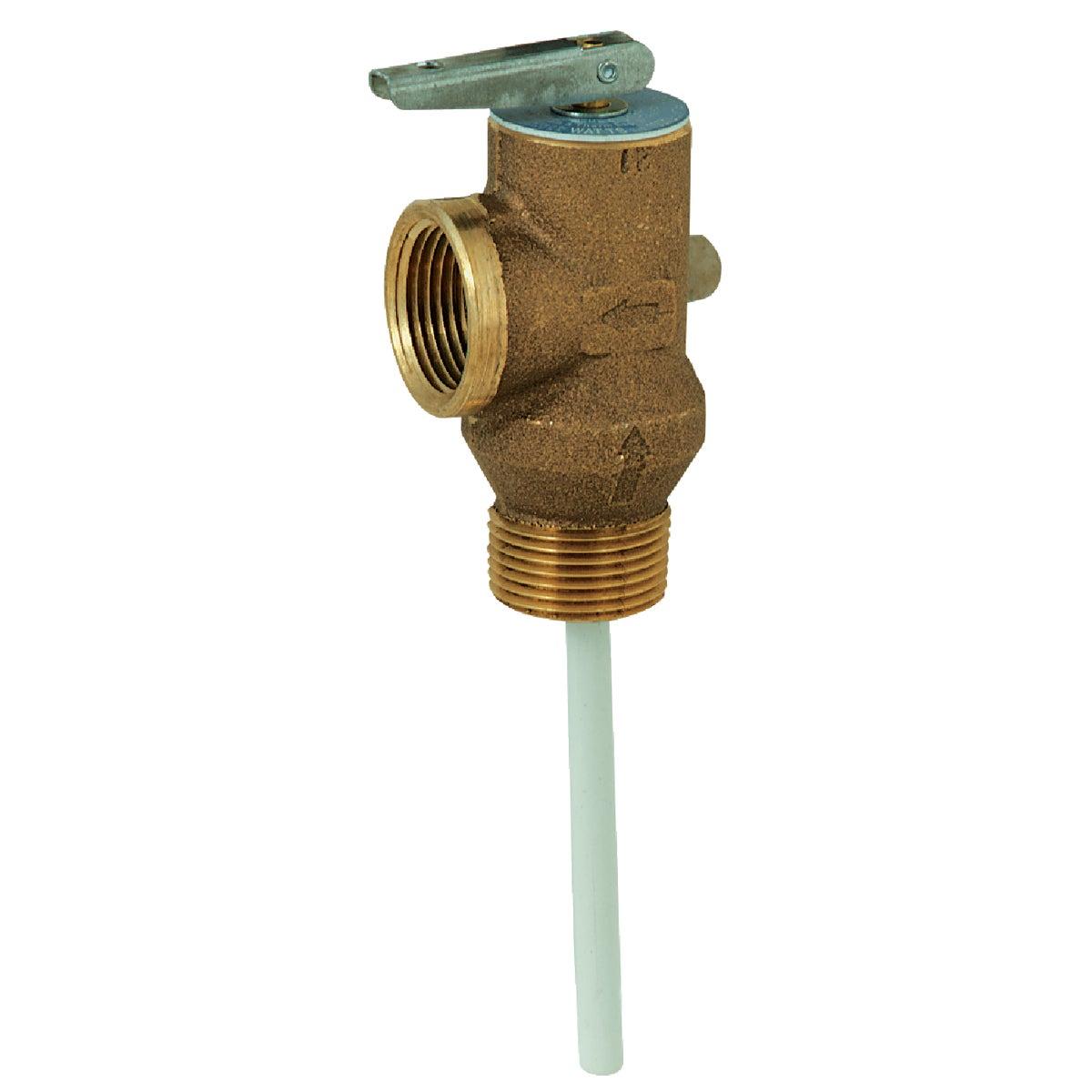

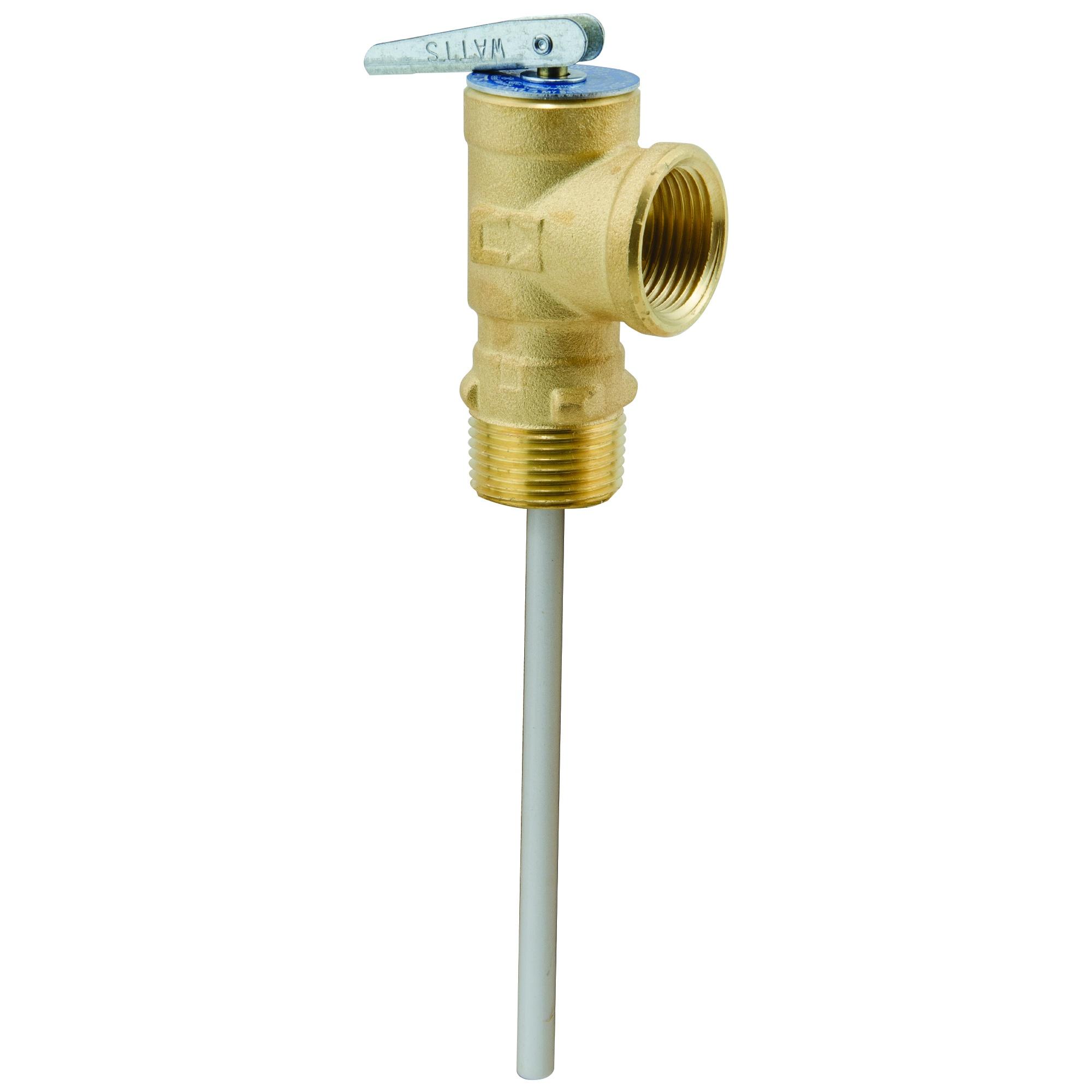

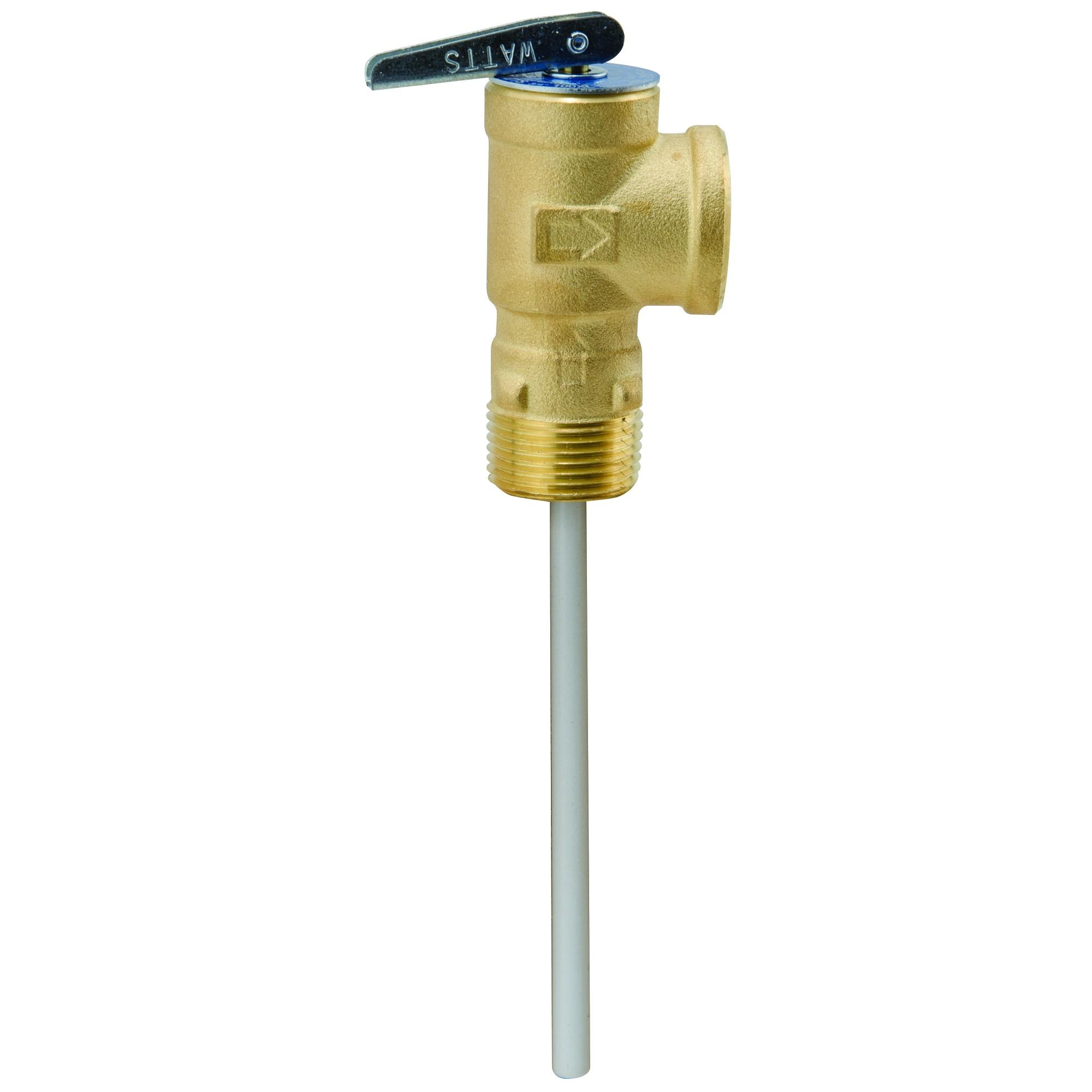

WATTS® 0066107 100XL Self-Closing Temperature and Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 180 deg F, 3 in L Probe, Brass Body

0 Ratings
$23.18
In Stock
SKU: JWH436898
noimage_new

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 180 degrees F, and the pressure relief is 150 psi (10.6 bar).

In Stock
HCI of Jackson: 6
HCI of Dyersburg: 1
HCI of Humboldt: 1
HCI of Union City: 1
HCI of Gallatin: 1
My Wishlist
Compare
Main specs
  • Brand
    WATTS®
  • UPC
    098268007206
  • Manufacturer Part Number
    0066107
  • Country
    USA
Specification
  • Temperature Rating
    180 deg F
  • Pressure Rating
    150 psi
  • Probe Length
    3 in
  • Media
    Water
  • Trim Material
    Stainless Steel Spring
  • Type
    Self-Closing
  • Actuator Type
    Test Lever
  • Nominal Size
    3/4 in
  • Series
    100XL
  • Body Material
    Brass
  • End Style
    MNPT x FNPT
Features
  • Unique thermostat with special thermo-bonded coating
  • Thermostat is accurate and proven, exclusively designed and manufactured by WATTS®
Additional Information
  • Alternative Part Number
    DP100XL-TT-150210
  • UNSPSC
    40141606
  • Package Description
    EACH
  • Standards/Approvals
    ASME Specified|CSA Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Warranty
    1 year
Attachments
Reviews

There are yet no reviews for this product.
