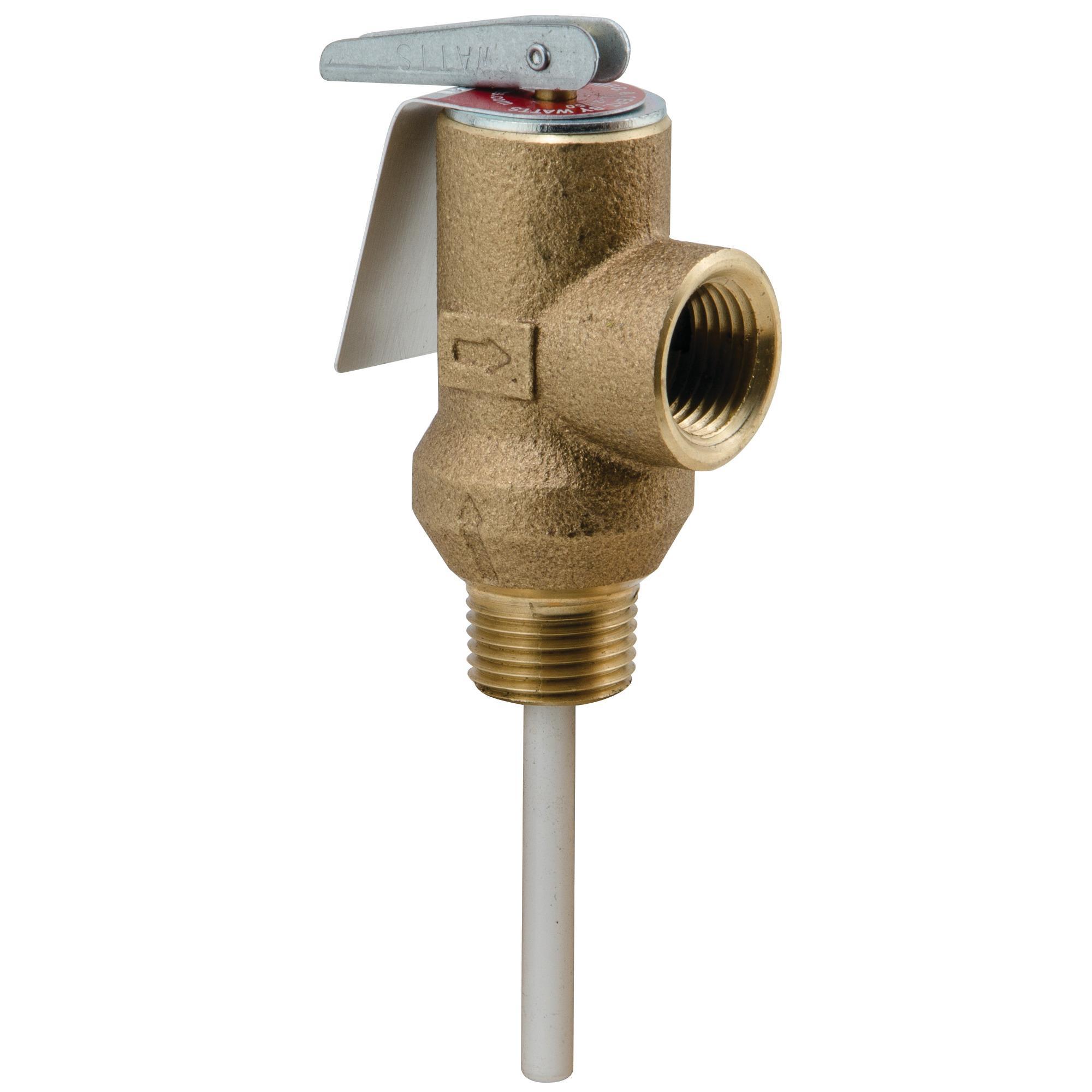

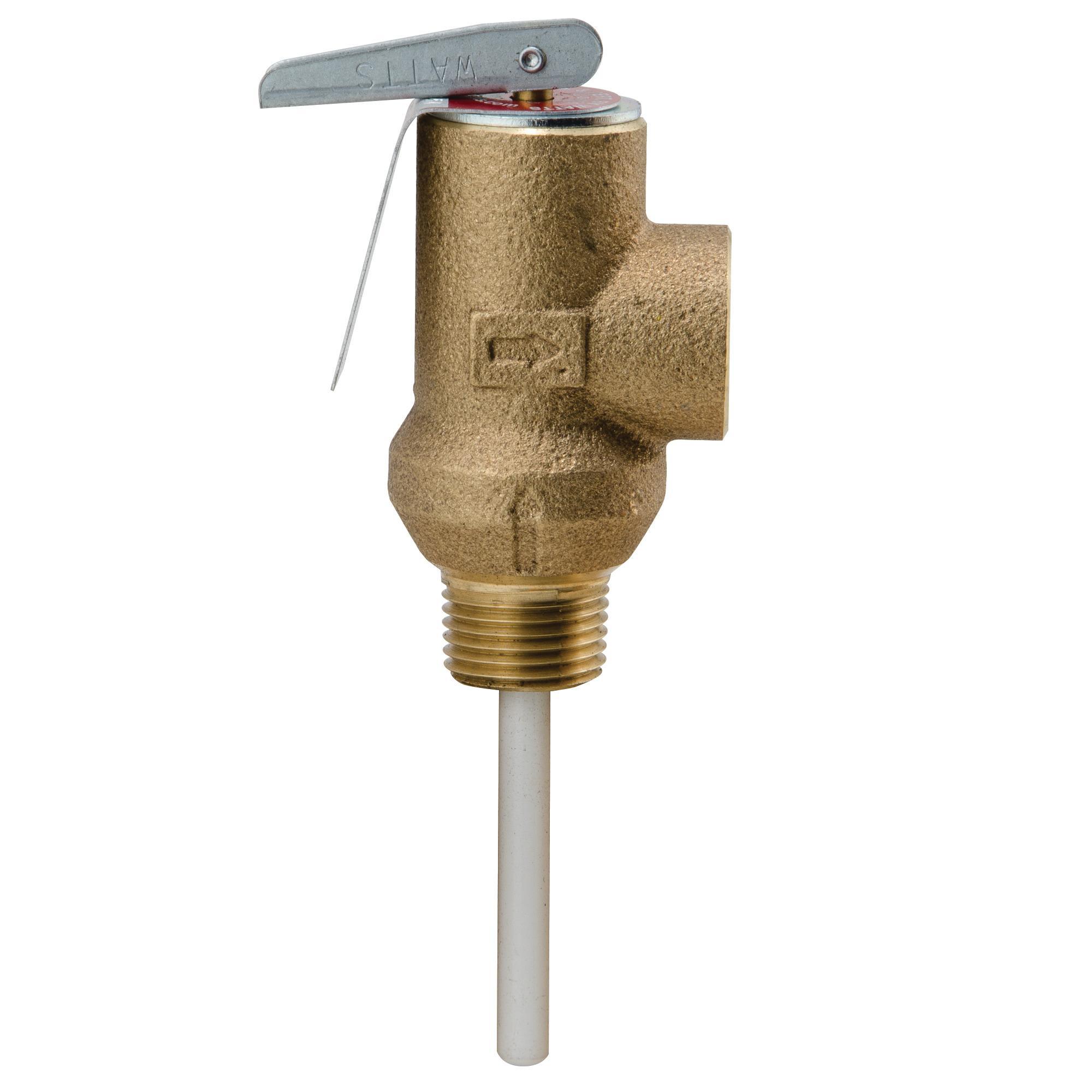

WATTS® 0002220 1L Series Self-Closing Temperature and Pressure Relief Valve, 1/2 in Nominal, MNPT x FNPT End Style, 125 psi Pressure, 210 deg F, Bronze Body
This 1/2 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, 2 inch short thermostat with special thermo-bonded coating and test lever. It is CSA listed. Temperature relief at 210 degrees F (99 degree C), pressure relief range is 75 to 150 psi. The standard pressure settings is 125 psi.
-
BrandWATTS®
-
UPC098268000306
-
Manufacturer Part Number0002220
-
CountryUSA
-
Temperature Rating210 deg F
-
Pressure Rating125 psi
-
MediaWater
-
Trim MaterialStainless Steel Spring
-
TypeSelf-Closing
-
Actuator TypeTest Lever
-
Nominal Size1/2 in
-
Series1L Series
-
Body MaterialBronze
-
End StyleMNPT x FNPT
- Solid bronze body construction
- Unique thermostat with special thermo-bonded coating
-
Alternative Part NumberDP1L-TT-125210
-
UNSPSC40141606
-
Package DescriptionEACH
-
Standards/ApprovalsASME Specified|CSA Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty1 year
-
Specification Sheet
-
Instruction/Installation Manual
