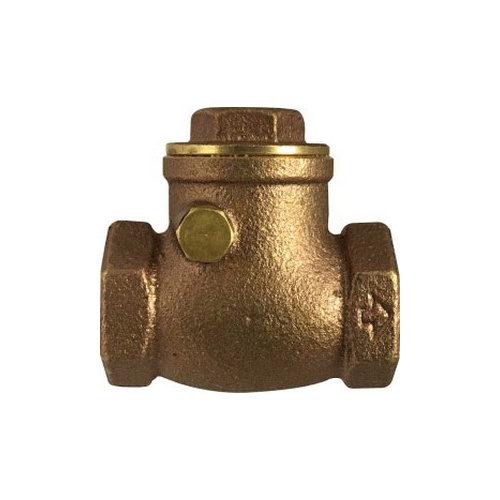

HCI Preferred Supplier 940354 Swing Check Valve, 1 in Nominal, IPS Thread End Style, PTFE, C37700 Brass Body
HCI Preferred Supplier 940354 Swing Check Valve, 1 in Nominal, IPS Thread End Style, PTFE, C37700 Brass Body
-
BrandGeneric
-
Manufacturer Part Number940354
-
CountryUSA
-
Low Lead ComplianceNo
-
Temperature Rating-5 to 150 deg F
-
Pressure Rating200 psi WOG/125 psi WSP
-
MediaCold Water, Oil, Gas and Saturated Steam
-
Trim MaterialC37700 Brass
-
Nominal Size1 in
-
Dimensions1.614 in H x 2.835 in W
-
Softgoods MaterialPTFE
-
Domestic/ImportImport
-
Body MaterialC37700 Brass
-
End StyleIPS Thread
- Swing type disc
- Hard and integral seat
- 90 deg straight pattern
- Not lead free
- C37700 brass cap/bar/screw
- PTFE gasket
-
UNSPSC40141634
-
Package Description8/BX
-
Standards/ApprovalsANSI B1.20.1
-
