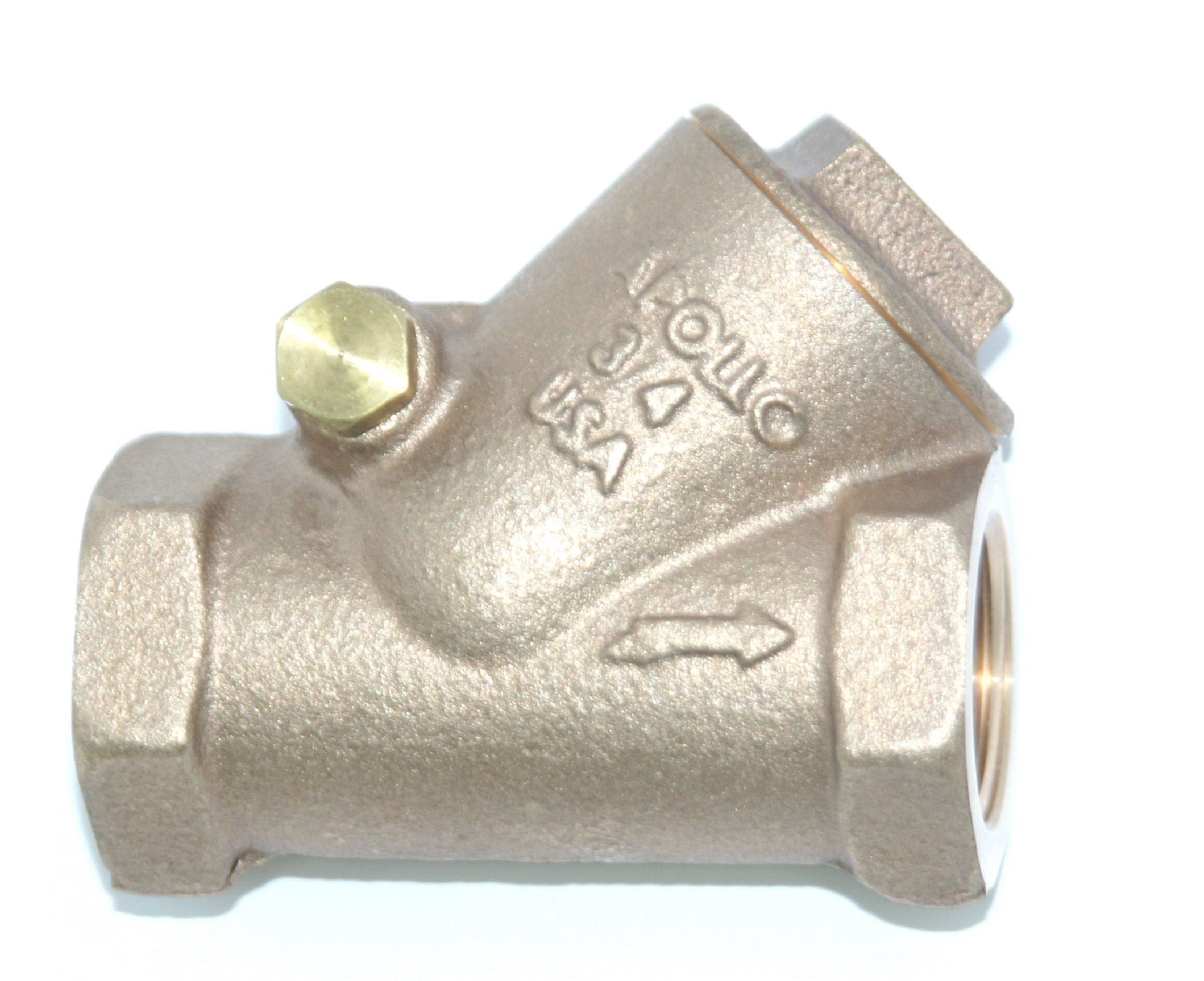

Apollo™ 61Y204T1 163T Y-Pattern Swing Check Valve, 3/4 in Nominal, NPT End Style, 125 lb, Bronze Body
The Apollo™ Model 163T (61Y Series) Swing Check provides a cost effective Made in the USA alternative to globally sourced check valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ Swing Check can be installed in either horizontal or vertical line with upward flow.
-
BrandApollo™
-
UPC670750607844
-
Manufacturer Part Number61Y204T1
-
CountryUSA|Canada
-
Low Lead ComplianceNo
-
Temperature Rating-20 to 406 deg F
-
Pressure Class125 lb
-
Pressure Rating200 psi CWP
-
Flow Rate12 gpm
-
MediaSteam
-
Trim MaterialPTFE
-
TypeY-Pattern
-
Nominal Size3/4 in
-
Series163T
-
Inlet to Outlet Length2.94 in
-
Dimensions1.9 in H
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleNPT
- Renewable PTFE seat disc
- Dezincification resistant
- 100% Factory tested per MSS
- 100% cast, machined and assembled in the US
-
UNSPSC40141634
-
Package Description10/BX
-
Standards/ApprovalsARRA Compliant|ASME B1.20.1|ASTM B62 Body|Canadian Registration# 0C14667.5|MSS SP-80 Bronze Gate, Globe and Check Valve|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
